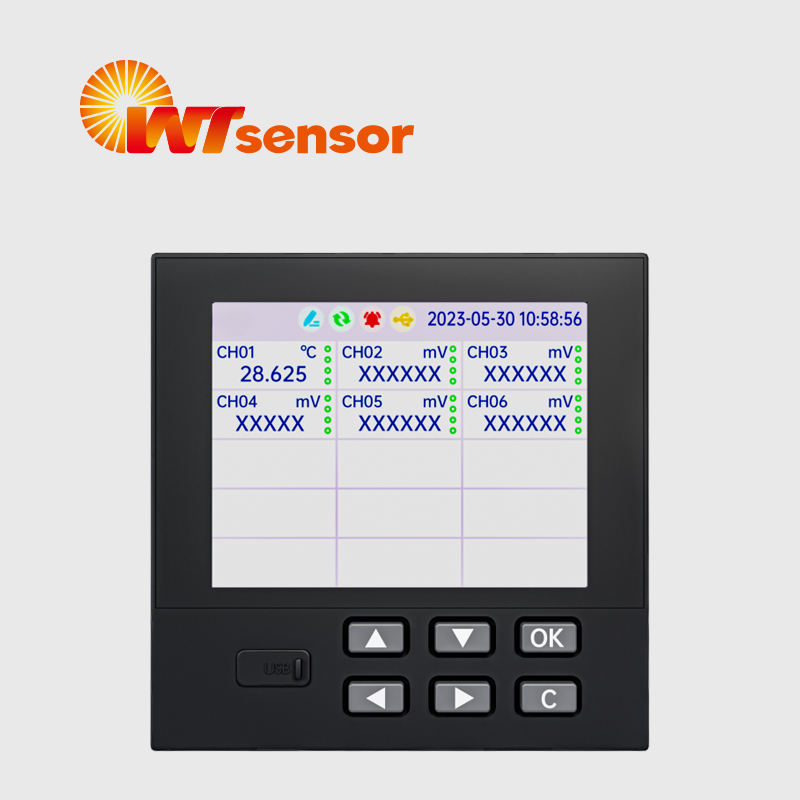

Paperless Recorder PCPR02
Features
■ Up to 18 analog signal input channels, 4 relay alarm outputs.
■ 150mA power distribution output and 1 RS-485 communication interface.
■ 1 USB data dump interface.
■ 64Mb, 96Mb, 128Mb memory available.
■ Support boot interface custom writing.
■ Support display screenshot function.
■ The shell is made of flame retardant material.
Applications
■ Metallurgy
■ Oil
■ Chemical
■ Building materials
■ Papermaking
■ Food
■ Prmaceutical
■ Heat treatment
■ Water treatment
■ PID adjustment
Product Parameters
Performance parameters | |
Display | 3.5-inch TFT true-color LCD display, resolution 320*240, high-definition LED backlight |
Dimensions | Dimensions: 96mm×96mm×100mm Hole size: 92mm×92mm |
Mounting panel thickness | 1.5mm~6.0mm |
Weight | 0.37kg |
Power supply | (85~264)VAC, (47~63)Hz (optional 24VDC power supply) |
Internal storage | 64M Bytes Flash (optional 96M, 128M) |
External dump | Support U disk (standard USB2.0 communication interface) |
Maximum power consumption | 10W |
Relative humidity | (10~85)% (no condensation) |
Operating temperature | (0~50)℃ |
Transport and storage conditions | Temperature(-20~60)℃ Relative humidity (5~95)% (no condensation) |
Power distribution specification | 150mA, 24 VDC |
Power down protection | All data are stored in Flash memory to ensure that all historical data and configuration parameters will not be lost due to power failure. The real-time clock is powered by an internal battery after power failure. |
Alarm output | Up to 4 channels, relays are normally open contacts, contact capacity 2A /250VAC (resistive load) |
Communication interface | 1 way RS-485 communication interface |
Protocol | Using Modbus communication protocol |
The sampling period | 1s |
Input Signal | ||||
DC Voltage/Current Input | ||||
Signal type | Maximum allowable error (%FS) | |||
(1~5)V | ±0.1 | |||
(0~10)V | ||||
(0~5)V | ||||
(4~20)mA | ||||
(0~20)mA | ||||
(0~10)mA | ||||
(0~100)mV | ±0.2 | |||
(-20~20)mV | ||||
(0~20)mV | ||||
Thermocouple Input (Without Cold Junction Error) | ||||
Signal type | Measuring range (°C) | Maximum allowable error (°C) | ||
B | 600 ~ 1800 | ±2.4 | ||
E | -200 ~ 1000 | ±2.4 | ||
J | -200 ~ 1200 | ±2.4 | ||
K | -200 ~ -100 | ±3.3 | ||
-100 ~ 1300 | ±2.0 | |||
S | -50 ~ 100 | ±3.7 | ||
100 ~ 300 | ±2.0 | |||
300 ~ 1600 | ±1.5 | |||
T | -200 ~ -100 | ±1.9 | ||
-100 ~ 400 | ±1.6 | |||
R | -50 ~ 100 | ±3.7 | ||
100 ~ 300 | ±2.0 | |||
300 ~ 1600 | ±1.5 | |||
N | -200 ~ 1300 | ±3.0 | ||
WRe5-26 | 0~ 2310 | ±4.0 | ||
WRe3-25 | 0~ 2315 | ±4.0 | ||
RTD Input | ||||
Signal type | Measuring range (°C) | Maximum allowable error (°C) | ||
Cu50 | -50 ~ 150 | ±1.0 | ||
Pt100 | -200 ~ 650 | ±1.0 | ||
Pt1000 | -200 ~ 200 | ±1.0 | ||
Note: special type thermal resistance can be customized. | ||||
Output Signal | |||||||
Alarm Output | |||||||
Signal type | Measuring range | Contact type | Contact rating | Response cycle | |||
Alarm Output | 0/1 | Normally open contact | 2A /250VAC | 1 second | |||
Current Output | |||||||
Signal type | Range (mA) | Maximum allowable error (mA) | |||||
Current output | 4 ~ 20 | ±0.025 | |||||
0~20 | ±0.025 | ||||||
0~10 | ±0.025 | ||||||
Wiring | |

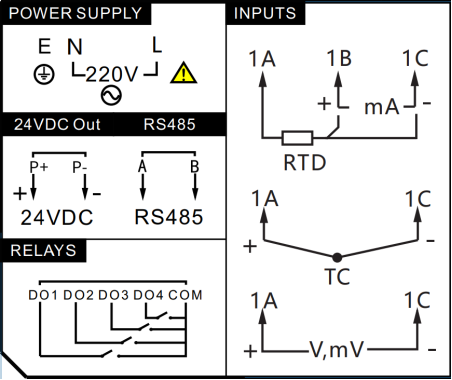

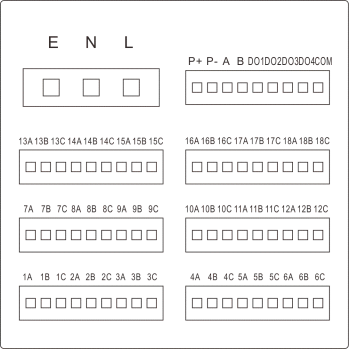

Figure 1 Schematic diagram of basic terminal Figure 2 Schematic diagram of enhanced terminals

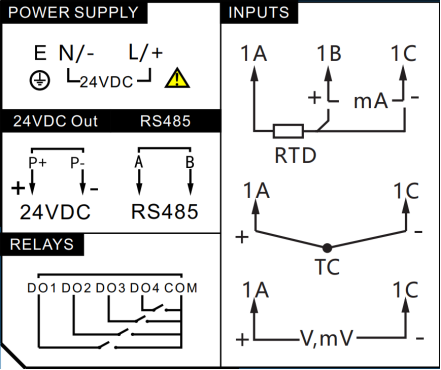

Figure 3 24V wiring diagram
Figure 4 220V wiring diagram
Note: The analog output board needs an external 24V power supply, which can be powered by the power distribution provided by this product. Due to the high power, try to avoid power distribution to other transmitters at this time.
| |

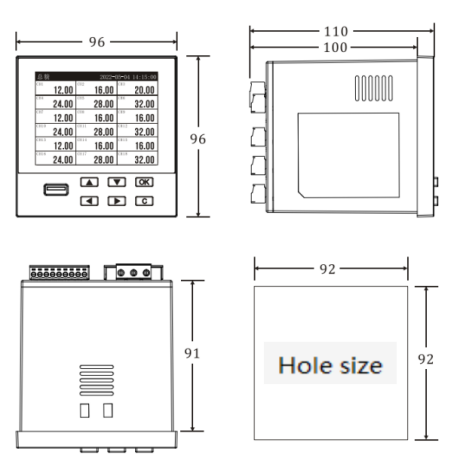

Dimension in mm | |
| |
