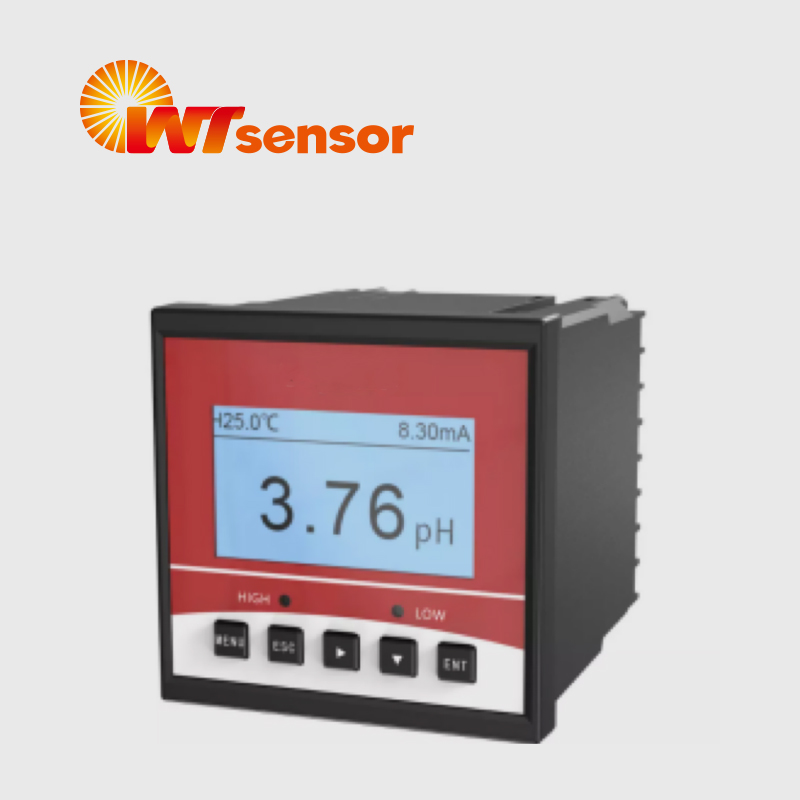

Online pH/ORP Controller PCPH02
Features
■ Circuit modular design
■ Isolated transformer output and less affected by interference
■ pH /ORP measurement, temperature measurement
■ Manual configuration temperature manual and automatic compensation function
■ High and low alarm function
■ Buzzer switch function
■ Return function without key operation over a certain time
■ Quick access to online calibration
■ Large size segment code LCD screen
Product Parameters
Performance parameters | |
Display | 2.8 inch segment code LCD screen |
Dimension | 96mm×96mm×112mm |
Cutout dimension | 92mm×92mm |
Measurement variables | pH/ORP |
Measuring range | pH：0.00~14.00pH ORP：-1000~+1000mV -2000~+2000mV (customizable) |
Accuracy | pH：±0.02pH；ORP：±1mV |
Input impedance | ≥1012Ω |
Temperature compensation | NTC10K: -10~60℃ ±0.3℃, 60 ~ 130 ℃ ±2 ℃ Range: -10~130℃ manual/automatic |
Current output | Isolation type, 4~20mA can be set corresponding pH/ORP and temperature measurement range, maximum load 750 Ω, output accuracy + / - 0.2% FS. |
Alarm function | 2 channels, capacity AC250V/3A |
Relative humidity | 10~85%RH (no condensation) |
Operating temperature | 0~60℃ |
Power supply | AC：220VAC±10%，50/60Hz；DC：24VDC |
Consumption | ≤5W |
Storage condition | Temperature: - 10 ~ 60 ℃ Relative humidity: 5~85%RH (no condensation) Altitude: <2000m |
Production process
Testing Equipment
Certificate
Company profile
Nanjing Wotian Technology Co., Ltd. was established in 2005. It is an outstanding top sensor mkanufacturing enterprise in Jiangning District. The company was rated as Nanjing Engineering Technology Research Center and Nanjing. Municipal Engineering Research Center, Nanjing Enterprise Technology Center, Nanjing Postdoctoral Innovation Demonstration Base; is the unit that formulated the national standards for "Silicon Piezoresistive Pressure Sensitive Chips" and "Silicone Pressure Sensors". It is the leading domestic manufacturer of pressure sensors, with core technology of diffused silicon pressure sensor pressure transmitter, level sensor and temperature sensor and existing staff 305. The annual production of pressure sensors is more than 2 million. The products have been exported to more than 70 countries and regions. Nanjing Wotian was awarded the honorary title of "Sensor Application Program Demonstration Enterprise" by the Ministry of Industry and Information Technology in 2019. "Creating value for customers" is the goal that enterprises always pursue. As leading manufacturer in the domestic pressure sensor industry, the company will revitalize China's pressure sensor business as its own responsibility, work diligently, step by step, strive to make pressure sensors better, and provide customers with cost-effective sensors. Nanjing Wotian Technology Co., Ltd. has passed ISO9001-2015 quality management system certification and TS16949 certification for the automotive industry.
Company advantage
Mass production
We have one production center in Nanjing and one production center in Anshan with 20,000㎡plant and 170 units of production equipments. The main annual capacity of sensors is about 2,000,000 pieces.
Imported equipments
We imported 20 sets of pressure controller and 150 units of testing ovens to our production line.
Informatization management
We have the information management system of CRM, PLM, ERP, MES and DINGDING etc.
Comprehensive testing
We have our own lab and testing equipment such as lightning stroke, surging, static electricity, vibration, high-low temperature impact test and helium mass-spectrum leak detection.
