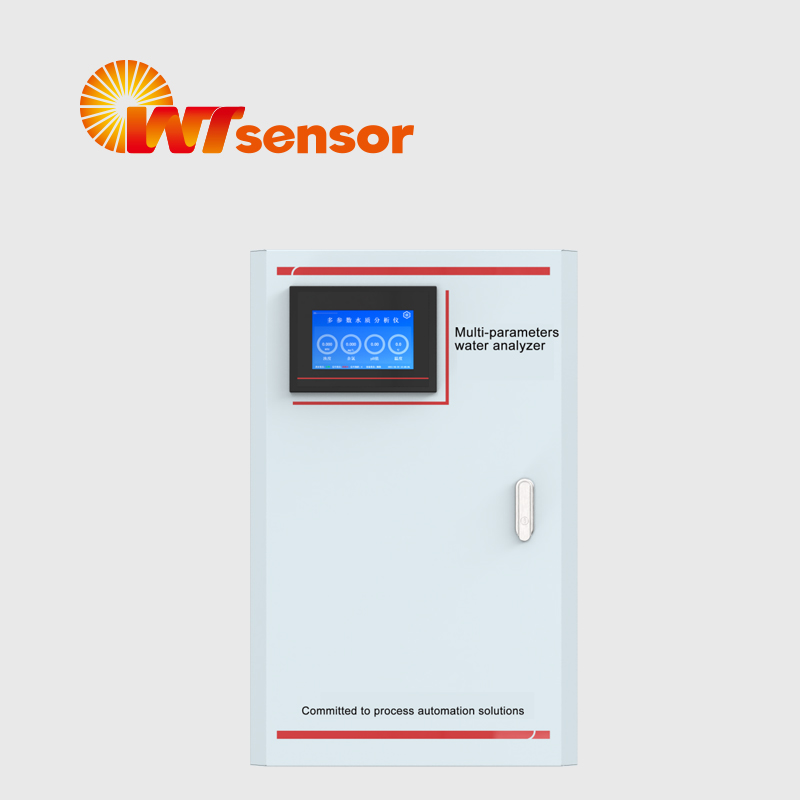

Multi-parameters water analyzer PCMP01
Features
■ Multi-parameters
■ High precision
■ High reliability
■ Low maintenance
■ Self-protection
■ Easy integration
■ Strong environmental adaptability
■ Highly customized
Applications
■ Urban/rural water supply plants
■ Sewage treatment
■ Tap water
■ Secondary water supply
■ Indoor swimming pools
■ Online monitoring of water quality
■ Water conservancy
■ Water management
■ Sanitation supervision
Product Parameters
Performance parameters | |
Working power | (220±22)VAC，(50±1)Hz |
Power | 30W |
Cabinet size | 800mm*506mm*180mm(standard version) |
Weight | 15kg |
Storage temperature | 4℃~+50℃ |
Working temperature | 4℃~+50℃/-25℃~+50℃ |
Working humidity | ≤95%RH (no condensation) |
Inlet flow | 500～1000 mL/min |
Inlet pressure | < 3kg/cm2 |
Communication interface | RS485 Modbus RTU communication protocol + air data interface |
Display | 7-inch color touch screen, Chinese/English |
Working power | (220±22)V AC，(50±1)Hz |
Cabinet size | 800mm*506mm*180mm(standard version) |
Turbidity | |
Measurement method | 90° light scattering method |
Range | 0-1NTU / 0-20NTU / 0-100NTU / 0-4000NTU |
Resolution | 0-1NTU/0-20NTU/0-100NTU：0.001NTU 0-4000NTU：0.01NTU |
Lower detection limit | 0.02NTU；0.1NTU（0-4000NTU） |
Zero drift | ≤1.5% |
Repeatability | ≤3% |
Response time | ≤120s |
Recommended maintenance period | 3-12 months (depending on the water quality on site) |
Residual chlorine/chlorine dioxide | |
Measurement method | Amperometric method/ polarography(automatic temperature and pH compensation) Chlorine dioxide adopts special membrane head and electrolyte, which can effectively shield the interference of residual chlorine, and the maximum shielding amount is 2mg/L. |
Range | 0-5mg/L / 0-20mg/L |
Resolution | 0.01mg/L |
Lower detection limit | 0.05mg/L |
Accuracy | ±0.05mg/L or ±5% (DPD comparison error ±10%) |
Response time | ≤120 seconds |
Recommended maintenance period Measurement method | 1-3 months or weekly calibration, 3-6 months to replace consumables Amperometric method/ polarography (automatic temperature and pH compensation) Chlorine dioxide adopts special membrane head and electrolyte, which can effectively shield the interference of residual chlorine, and the maximum shielding amount is 2mg/L. |
Measurement method | Amperometric method/ polarography (automatic temperature and pH compensation) Chlorine dioxide adopts special membrane head and electrolyte, which can effectively shield the interference of residual chlorine, and the maximum shielding amount is 2mg/L. |
PH /ORP(optional) | |
Measurement method | Electrode method (automatic temperature compensation) |
Range | 0-14pH, ±2000mV（ORP） |
Resolution | 0.01pH, ±1mV（ORP） |
Accuracy | ±0.1pH, ±20mV（ORP）or ±2% |
Repeatability | ±0.1pH, ±10mV（ORP） |
Response time | ≤60 seconds |
Recommended maintenance period | 1-3 months |
Temperature | |
Measurement method | Thermistor method |
Range | -20℃ - 85℃ |
Resolution | 0.1℃ |
Accuracy | ±0.5℃ |
Repeatability | ≤0.5℃ |
Response time | ≤25 seconds |
Recommended maintenance period | 12 months |
Conductivity (Optional) | |
Measurement method | Conductivity cell method (automatic temperature compensation) |
Range | 1-2000uS/cm / 1~200mS/m |
Accuracy | ±1.5%FS |
Repeatability | ≤0.5%FS |
Response time | ≤30 seconds |
Recommended maintenance period | 3-6 months |
Measurement method | Conductivity cell method (automatic temperature compensation) |
Dissolved oxygen (Optional) | |
Measuring method | Fluorescence method (Optional coating ampere current method) |
Range | 0-20mg/L |
Accuracy | ±0.3mg/L |
Repeatability | ≤±1.5% |
Response time | ≤30 seconds |
Recommended maintenance period | 1-3 months |
Expansion port | |
Port type | RS485、4-20mA |
