  • Conductivity controller PCEC02

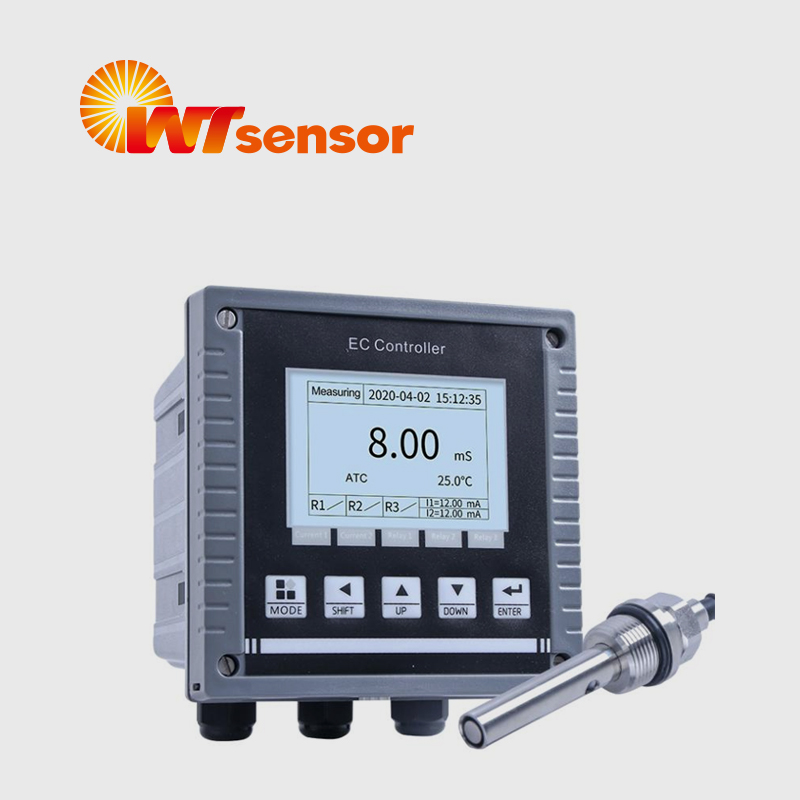

Conductivity controller PCEC02

Features

 Easy operation

 NEMA enclosure for field mounting and panel mounting

 Automatically Temperature Compensation

Directly switchable to EC or TDS

 Large LC D display with background lighting

 EC or TDS sensors can be connected thanks to the sensor supply integrated in the output

 Using the setup program: user-friendly programming

 Data logging capacity

 4-20mA analog output

 RS485 communication


Product Parameters

Performance parameters

Functions

EC

TDS

Measuring range

0.00uS-2000mS

0-133000 ppm

Resolution

0.01/0.1/1

1

Accuracy

±1%F.S.

±1%F.S.

Temp. compensation

1mm or 0.1%FS

Temp. range

Pt 1000/NTC30K

Temp. compensation range

-10.0 to +130.0℃

Temp. resolution

-10.0 to +130.0℃

Temp. accuracy

0.1℃

Cell constant

±0.2℃

Ambient temperature range

0.001 to 20.000

Storage temp.

0 to +70℃

Display

-20 to +70℃

EC current output1

Isolated, 4 to 20mA output , max. load 500Ω

Temp. current output 2

Isolated, 4 to 20mA output , max. load 500Ω

Current output accuracy

±0.05 mA

RS485

Mod bus RTU protocol

Baud rate

9600/19200/38400

Maximum relay

contacts capacity

5A/250VAC,5A/30VDC

Cleaning setting

ON: 1 to 1000 seconds, OFF: 0.1 to 1000.0 hours

One multi-function relay

clean/period alarm/error alarm

Relay delay

0-120 seconds

Data logging capacity

500,000

Language selection

English/traditional Chinese/simplified Chinese

Waterproof grade

IP65

Power supply

From 90 to 260 VAC, power consumption < 7 Watts

Installation

panel/wall/pipe installation

Weight

144 series:0.85Kg

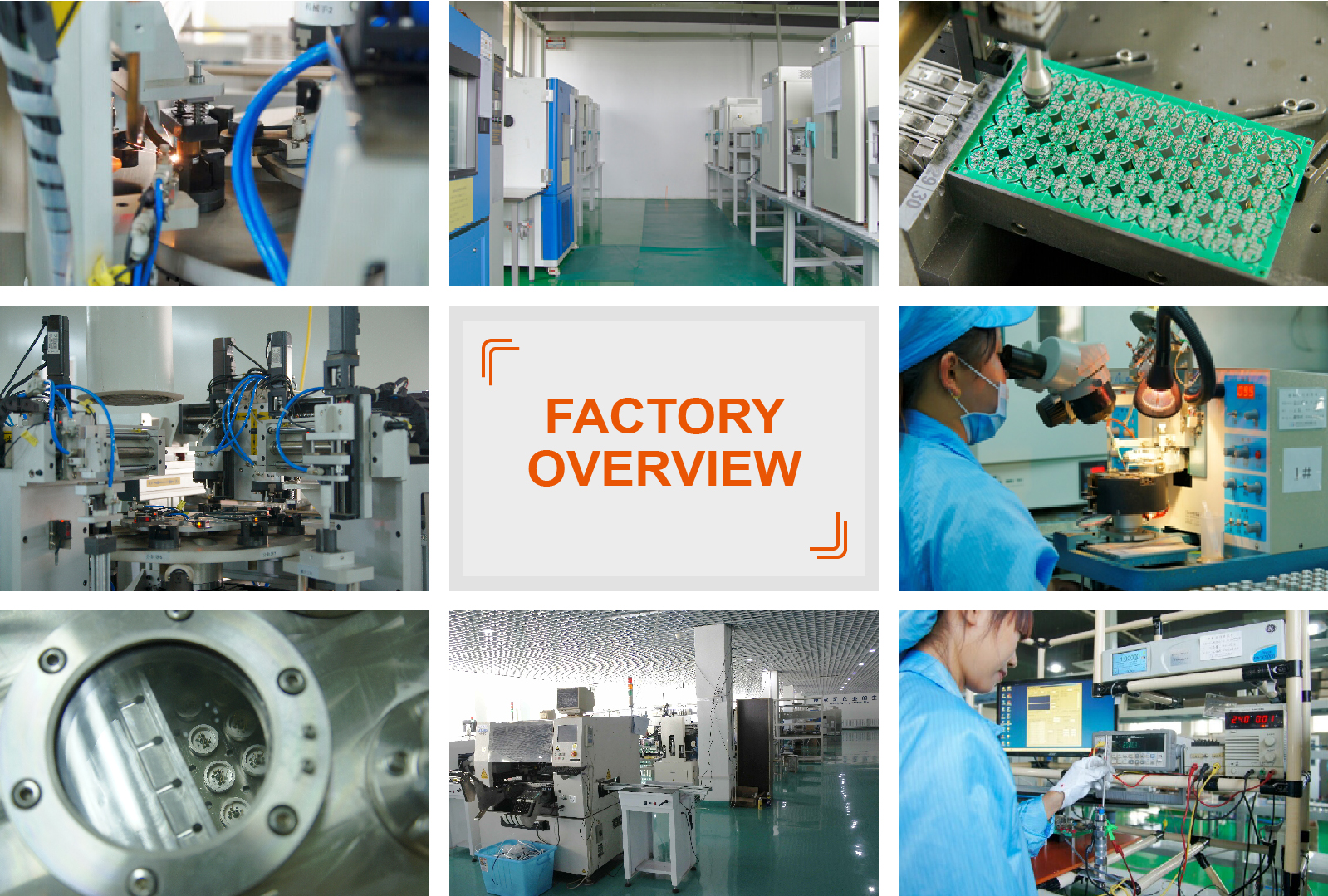

Production process

PCEC01 Online Conductivity/Resistivity Controller

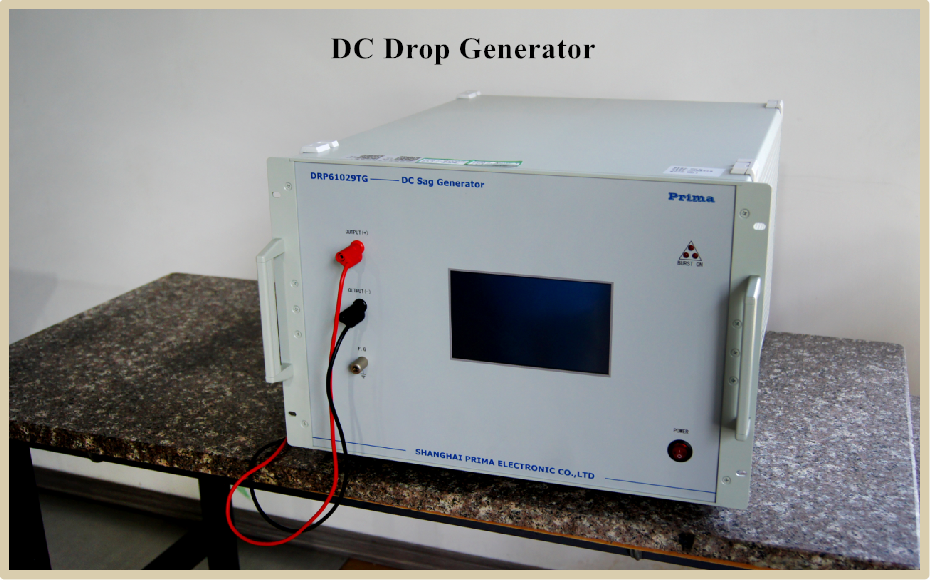

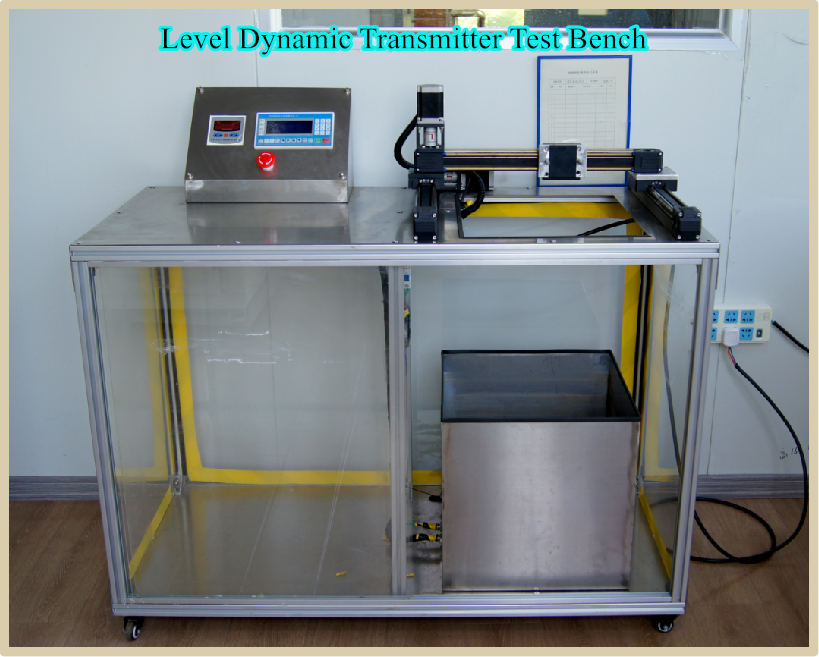

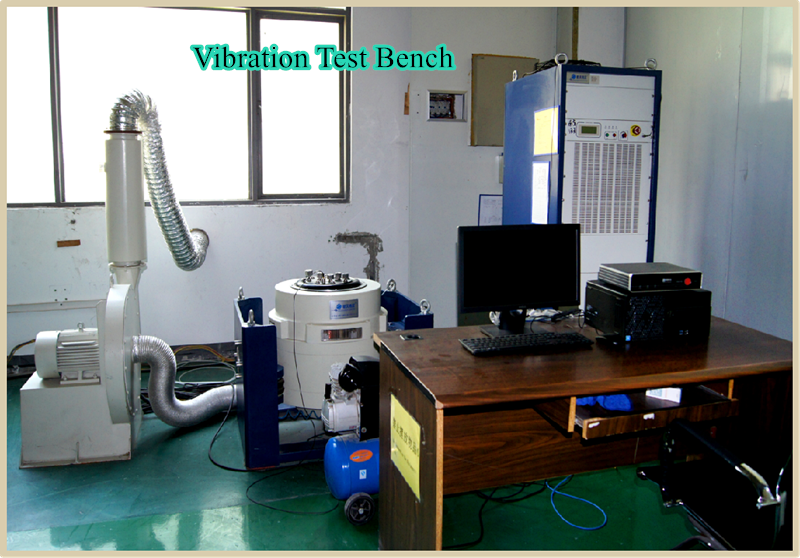

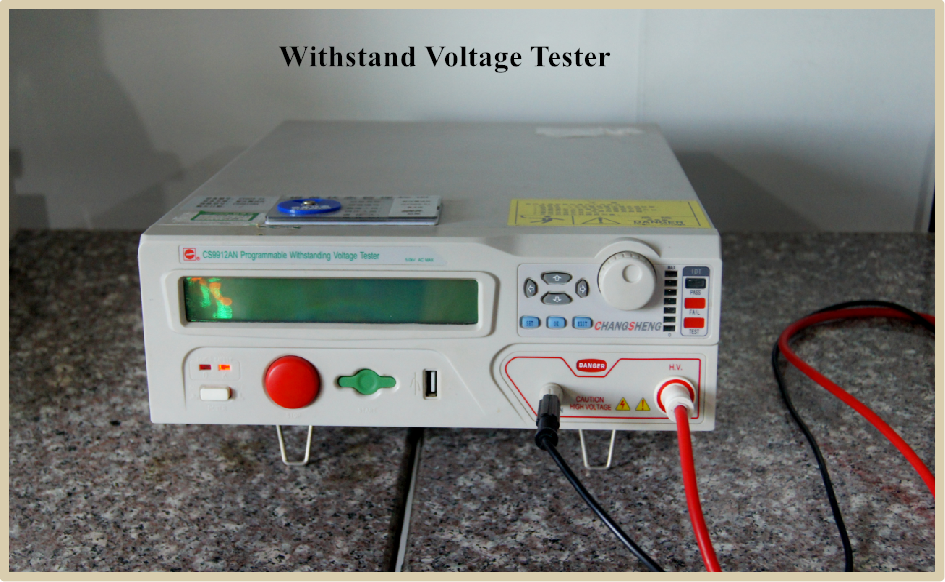

                                                       Testing Equipment
