Digital Analyzer Monitor PCDO20

Features

The isolated transmission output is adopted,which is less affected by interference

Adopt isolated RS485 communication technology

With high and low alarm output function

With sound and light alarm function

With LCD backlight switch control function


Applications

PH sensor

Conductivity sensor

Oxygen sensor

Turbidity sensor


Product Parameters

Technical indicators

Display

2.8-inch monochrome LCD screen, resolution 128*64

Dimension

100mm×100mm×150mm

Hole size

92.5mm×92.5mm

Monitoring parameters

pH/ORP/Conductivity/DO/Turbidity/Sludge concentration





Display range

pH: (014)pH

ORP:(-20002000) mV

DO:(040)mg/L

Saturation:(0200)%

Conductivity:(0600) mS/cm

Turbidity:(04000) NTU

Sludge concentration:(0120000)mg/L

Current output

(420)mA load capacity 500Ω, output accuracy ±0.2%FS

RS485 output

Isolated, Modbus-RTU communication

Alarm

2 channels, capacity AC250V/3A

Distribution output

12V/125mA

Relative humidity

(10 ~ 85)% (no condensation)

Working temperature

(0 ~ 60)

Input

AC: (100240)VAC

DC: 24VDC(Optional)

Storage conditions

Temperature:(-15 ~ 65)

Humidity(5 ~ 95)% (no condensation)

Height:<2000M

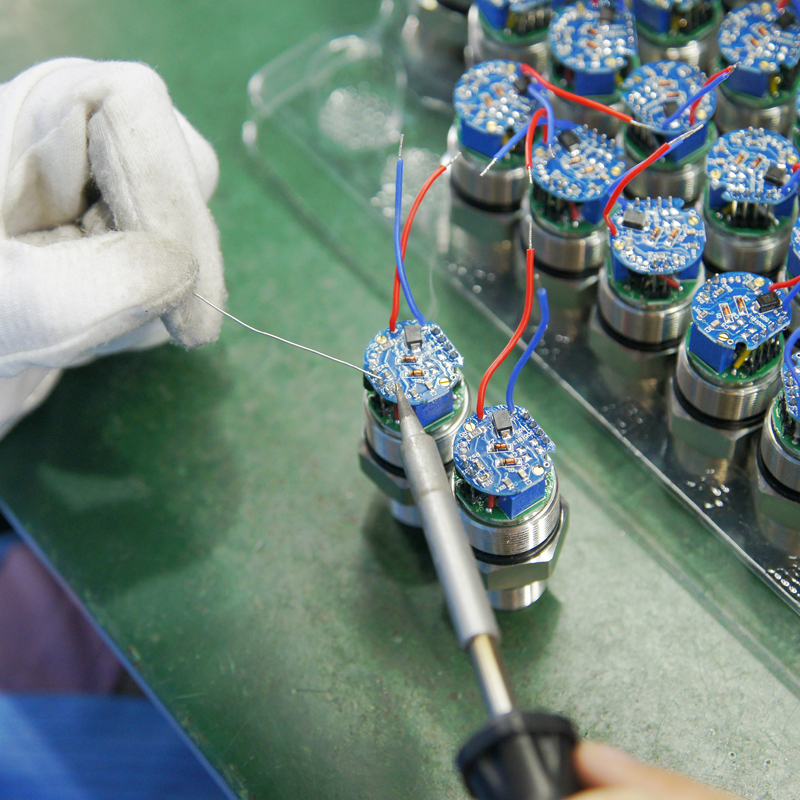

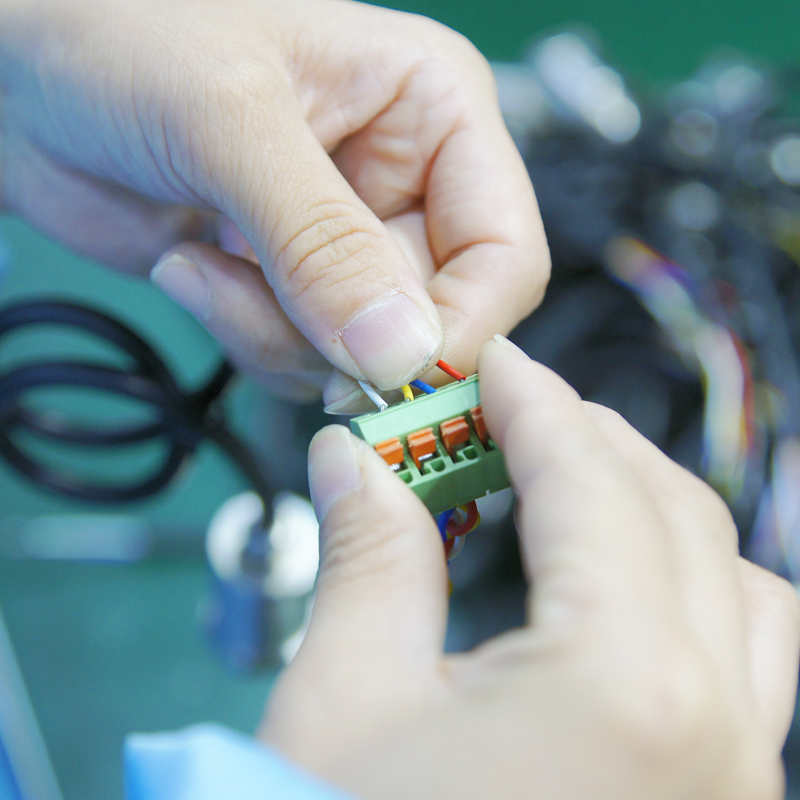

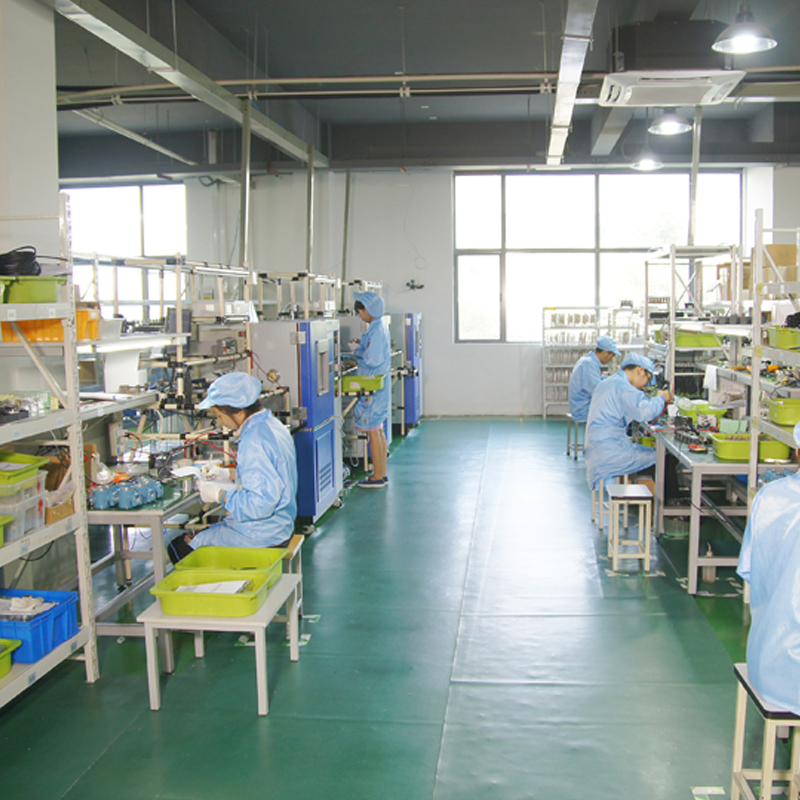

Production process

PCPH01 PH Online Analyzer

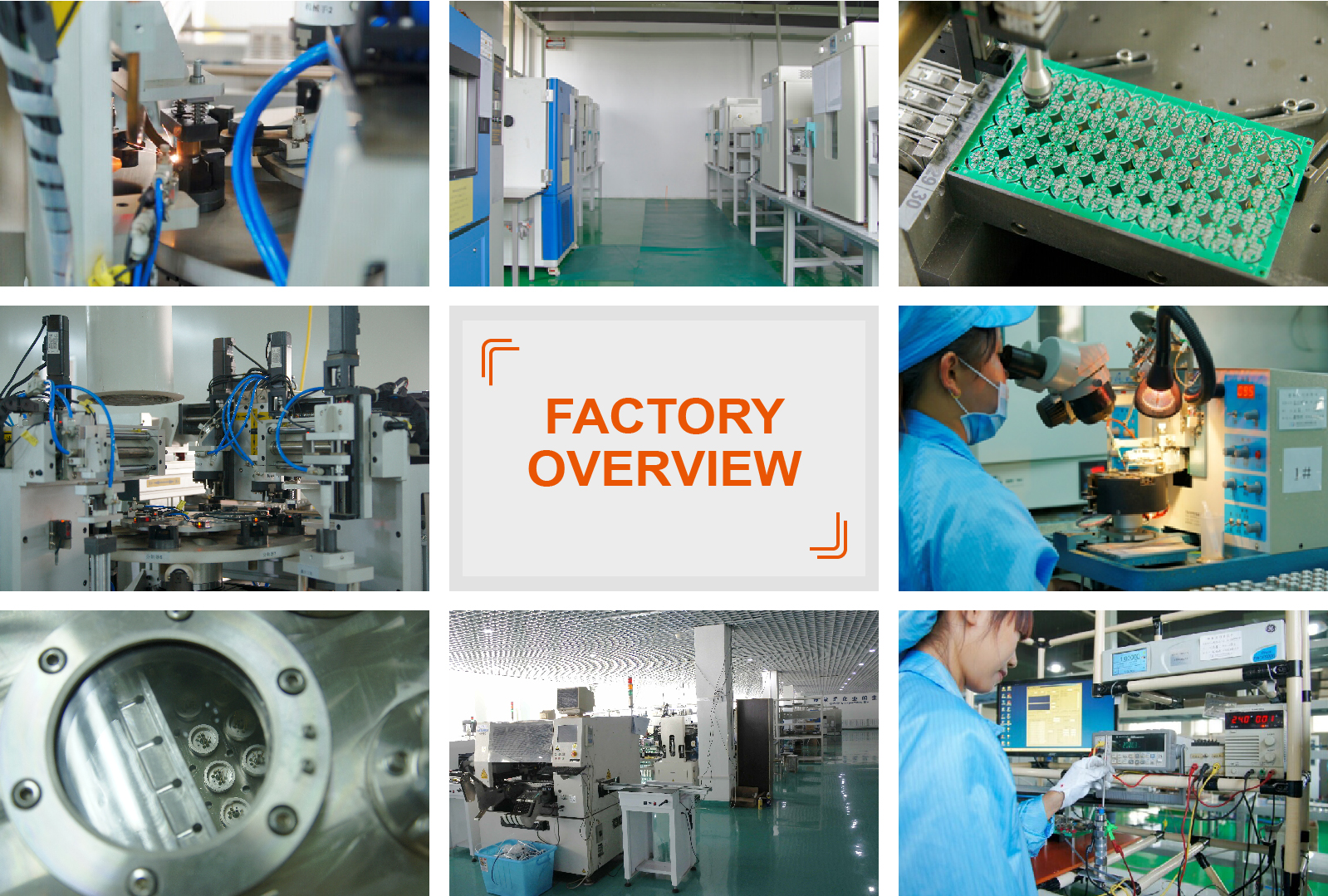

                                          Testing Equipment
