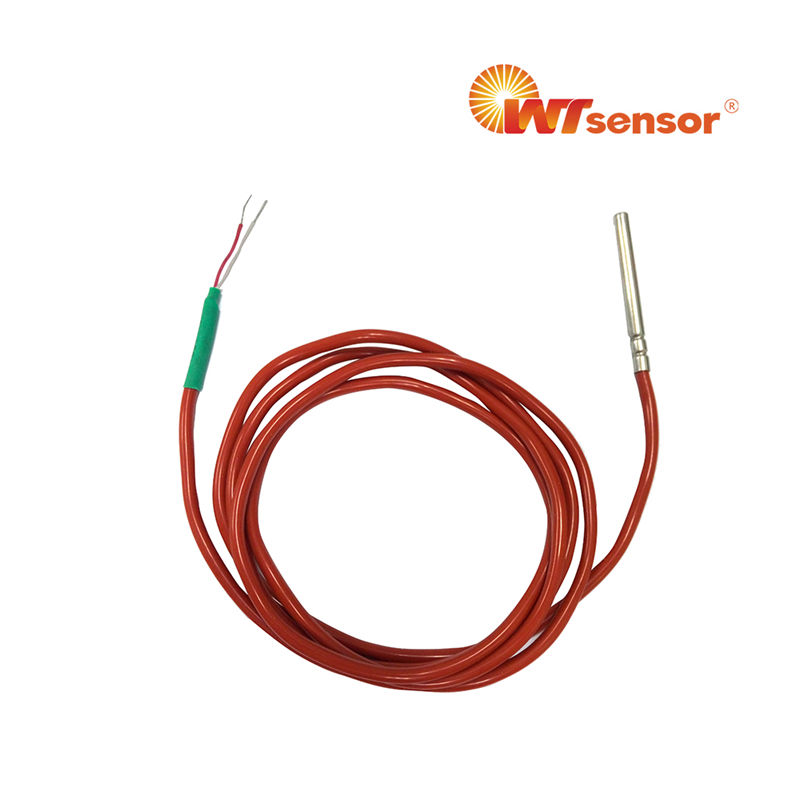

PCT10 Temperature Sensor
Features
■ Platinum temperature sensor
■ Vibration resistance, good reliability, high accuracy
■ PT100, (PT1000 selectable)
PT100 PT1000 water liquid gas temperature sensor, 0.25% accuracy Φ5mm diameter Platinum temperature sensor
PCT10 Platinum temperature sensor measures range -50℃ to 150℃ with PT100 PT1000. Insertion length ≥30mm, diameter Φ5mm, with cable connection of 2 wire or 3 wire. The temperature sensor has good vibration resistance, applicable to water, liquid, gas. Factory OEM and customization available.
Product Parameters
Temperature range | |
Temperature range | -50℃ to 150℃ |
Specification | |
Accuracy (linearity, repeatability and hysteresis) | ±0.25%F.S. (Typical) |
Resistance value R0 (at 0℃) | Class A: 100±0.06Ω |
Allowable deviation value△ ℃ | Class A: ±(0.15+0.002|t|) |
Heat response time | <30S |
Minimum insertion length | ≥30mm |
Insertion diameter | Φ5mm (others please specify) |
Insulation | 100MΩ/100VDC |
Current | ≤5mA |
Protection | IP65 |
Electrical connection | Cable |
Company advantage
Mass production
We have one production center in Nanjing and one production center in Anshan with 20,000㎡plant and 170 units of production equipments. The main annual capacity of sensors is about 2,000,000 pieces.
Imported equipments
We imported 20 sets of pressure controller and 150 units of testing ovens to our production line.
Informatization management
We have the information management system of CRM, PLM, ERP, MES and DINGDING etc.
Comprehensive testing
We have our own lab and testing equipment such as lightning stroke, surging, static electricity, vibration, high-low temperature impact test and helium mass-spectrum leak detection.
