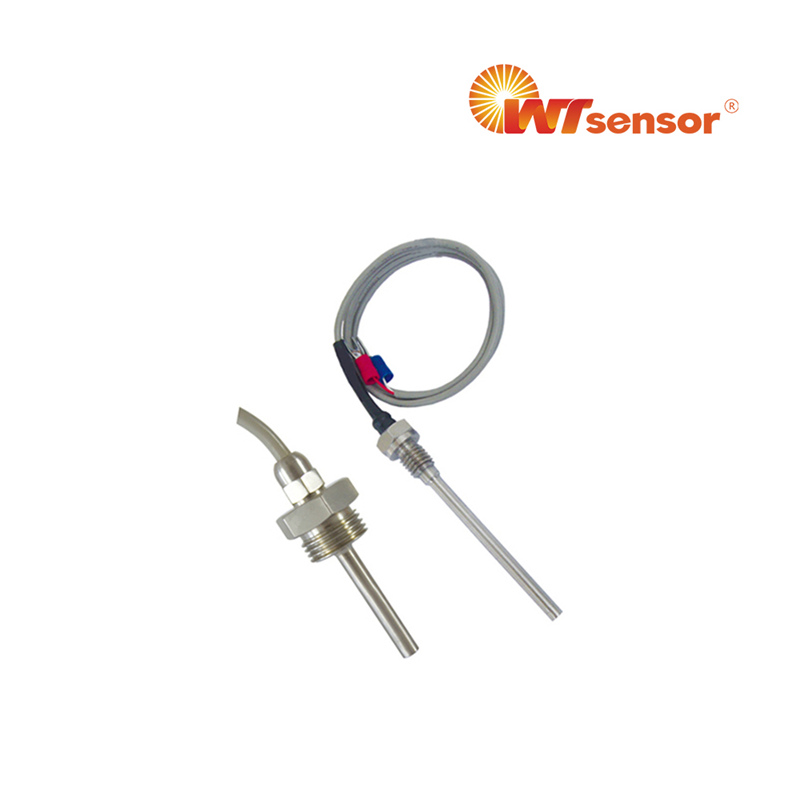

PCT110 Temperature Sensor
Features
■ Perfect long term stability
■ High strength
■ High vibration
■ High pressure resistance and accuracy
■ PT100, (PT1000 selectable)
PT100 PT1000 compressor temperature sensor,-50℃-150℃ 0.5% accuracy 6mm 8mm water liquid temperature sensor
PCT110 temperature sensor measures range from -50℃ to 150℃ with PT100 PT1000. Insertion length ≥10mm, diameter Φ6mm Φ8mm. Electrical connection is cable outlet of 2 wire or 3 wire. The temperature sensor is applicable to measurement of water, liquid, air, compressor with China factory OEM.
Product Parameters
Temperature range | |
Temperature range | -50℃ to 150℃ |
Specification | |
Accuracy (linearity, repeatability and hysteresis) | ±0.5%F.S. |
Long term stability | ≤0.2%F.S. |
Resistance value R0 (at 0℃) | Class A: 100±0.06Ω |
Allowable deviation value△ ℃ | Class A: ±(0.15+0.002|t|) |
Heat response time | <30S |
Minimum insertion length | ≥10mm |
Insertion diameter | Φ6mm | Φ8mm (for high temperature) |
Insulation | 100MΩ/250VDC |
Current | ≤5mA |
Protection | IP65 |
Electrical connection | Cable outlet |
Company advantage
Mass production
We have one production center in Nanjing and one production center in Anshan with 20,000㎡plant and 170 units of production equipments. The main annual capacity of sensors is about 2,000,000 pieces.
Imported equipments
We imported 20 sets of pressure controller and 150 units of testing ovens to our production line.
Informatization management
We have the information management system of CRM, PLM, ERP, MES and DINGDING etc.
Comprehensive testing
We have our own lab and testing equipment such as lightning stroke, surging, static electricity, vibration, high-low temperature impact test and helium mass-spectrum leak detection.
