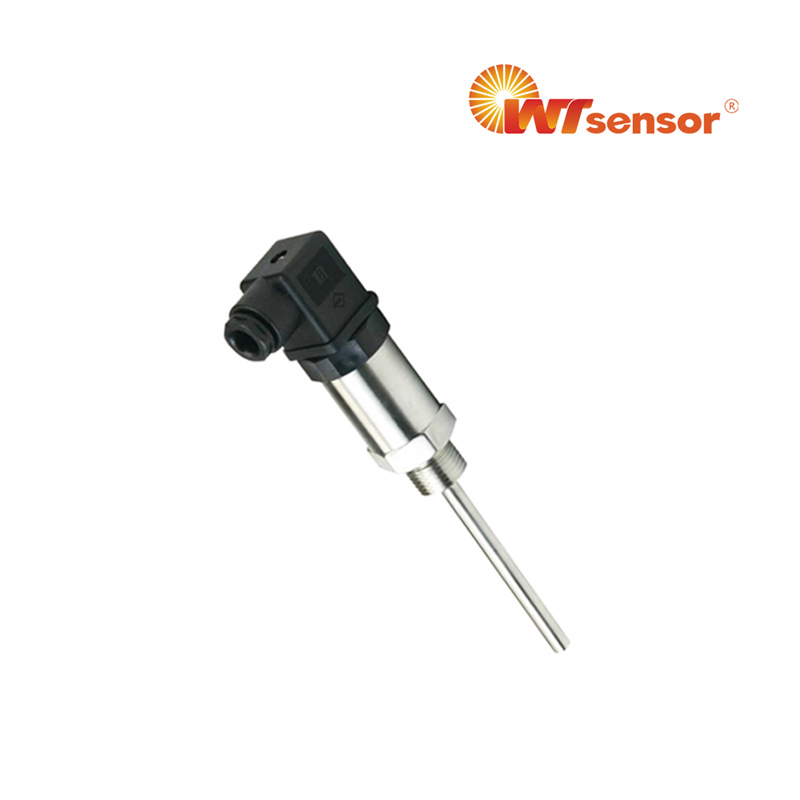

PCT100 Temperature Sensor
Features
■ Platinum temperature sensor
■ Vibration resistance, good reliability, high accuracy
■ PT100, (PT1000 selectable)
China OEM PCT100 PT1000 Platinum temperature sensor, CE DIN43650 0.5% accuracy 8mm diameter temperature sensor
PCT100 Platinum temperature sensor measures range from -50℃ to 250℃ with PT100 PT1000. Insertion length ≥10mm, diameter Φ8mm, accuracy ±0.5%. Electrical connection is DIN43650 of 2 wire or 3 wire. It is applicable to temperature measurement of water, liquid, gas with OEM and customization.
Product Parameters
Temperature range | |
Temperature range | -50℃ to 250℃ |
Specification | |
Accuracy | ±0.5% |
Long term stability | ≤0.2%F.S./year |
Resistance value R0 (at 0℃) | Class A: 100±0.06Ω |
Allowable deviation value△ ℃ | Class A: ±(0.15+0.002|t|) |
Heat response time | ≤30S |
Minimum insertion length | ≥10mm |
Insertion diameter | Φ8mm (others please specify) |
Insulation | 100MΩ/250VDC |
Current | ≤5mA |
Protection | IP65 |
Electrical connection | DIN43650 |
Company advantage
Mass production
We have one production center in Nanjing and one production center in Anshan with 20,000㎡plant and 170 units of production equipments. The main annual capacity of sensors is about 2,000,000 pieces.
Imported equipments
We imported 20 sets of pressure controller and 150 units of testing ovens to our production line.
Informatization management
We have the information management system of CRM, PLM, ERP, MES and DINGDING etc.
Comprehensive testing
We have our own lab and testing equipment such as lightning stroke, surging, static electricity, vibration, high-low temperature impact test and helium mass-spectrum leak detection.
