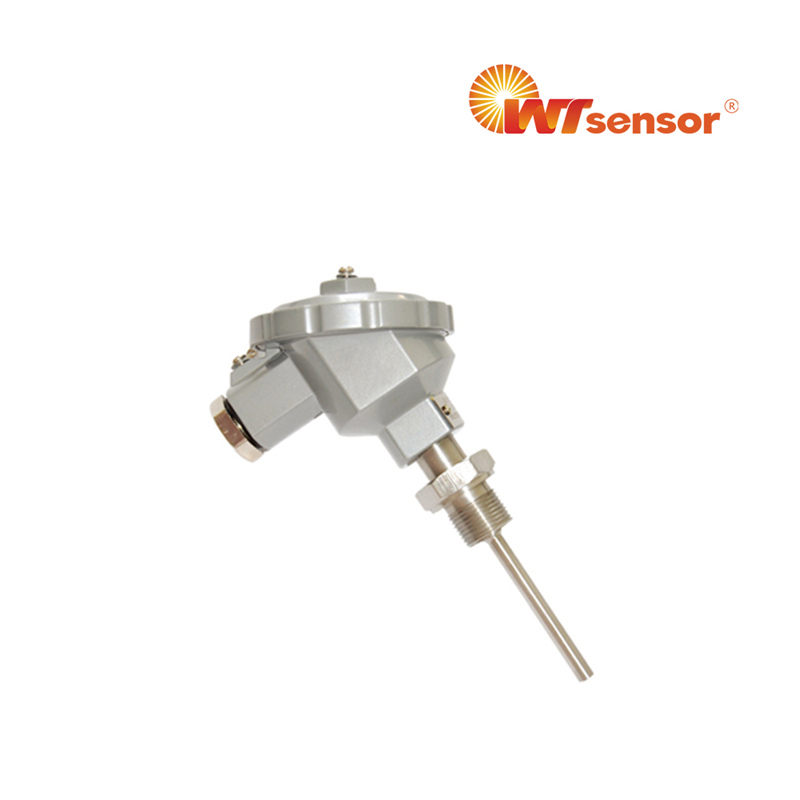

PCT120 Armored Temperature Sensor
Features
■ Platinum temperature sensor
■ Vibration resistance, good reliability, high accuracy
■ PT100, (PT1000 selectable)
-50℃- 250℃ explosion proof armored temperature sensor, 6mm 8 mm PT100 PT1000 Platinum temperature sensor
PCT120 explosion proof armored temperature sensor measures range from -50℃ to 250℃ with PT100 PT1000. Insertion length ≥10mm, diameter Φ6mm or Φ8mm. The Platinum temperature sensor is CE certified with thread connection, flange or tri-clamp. China factory OEM and customization available.
Product Parameters
Temperature range | |
Temperature range | -50℃ to 250℃ |
Specifications | |
Resistance value R0 (at 0℃) | Class A: 100±0.06Ω |
Allowable deviation value△ ℃ | Class A: ±(0.15+0.002|t|) |
Graduation | PT100 | PT1000 |
Accuracy | ±0.5%F.S. |
Heat response time | ≤30S |
Insertion length | ≥10mm |
Insertion diameter | Φ6mm | Φ8mm |
Insulation | 100MΩ/250VDC |
Current | ≤5mA |
Protection | IP65 |
Electrical connection | Cable outlet |
Long term stability | ≤0.2%FS/year |
Ex-proof | Exia ⅡC T6 |
Company advantage
Mass production
We have one production center in Nanjing and one production center in Anshan with 20,000㎡plant and 170 units of production equipments. The main annual capacity of sensors is about 2,000,000 pieces.
Imported equipments
We imported 20 sets of pressure controller and 150 units of testing ovens to our production line.
Informatization management
We have the information management system of CRM, PLM, ERP, MES and DINGDING etc.
Comprehensive testing
We have our own lab and testing equipment such as lightning stroke, surging, static electricity, vibration, high-low temperature impact test and helium mass-spectrum leak detection.
