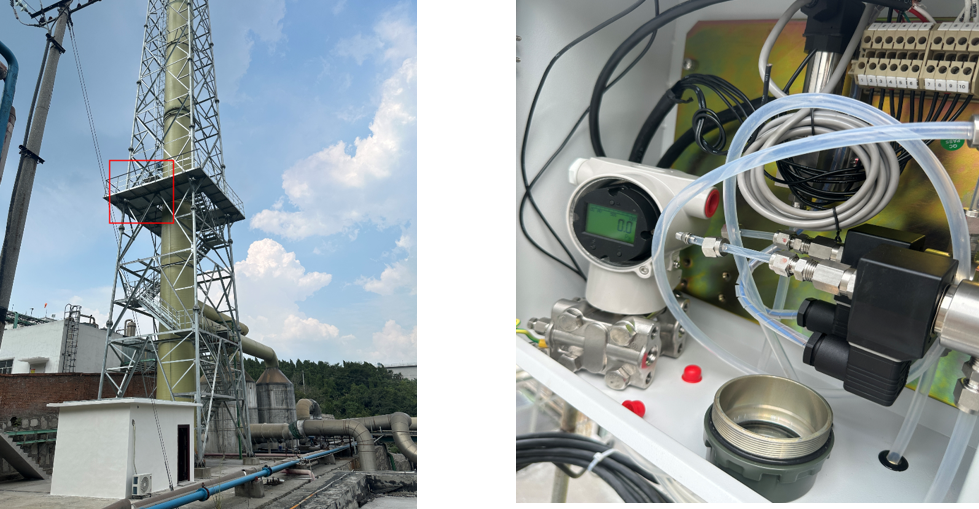

Industrial Differential Pressure Transmitter Solution for Flue-Gas Stack Systems

The industrial differential pressure (DP) transmitter plays a critical role in maintaining the operational efficiency, safety, and environmental compliance of a flue-gas stack and chimney system. For an industrial chimney manufacturing facility, these transmitters can provide accurate pressure measurements across various points in the system, ensuring that the flue-gas exhaust is managed correctly, emissions are monitored, and the system is protected from operational failures. Given the technical specifications of your differential pressure transmitter, it offers numerous advantages for the factory, including enhanced reliability, measurement precision, and durability in demanding environments.

In this solution, we will discuss how the advanced features of the industrial differential pressure transmitter benefit the factory, including its role in monitoring system pressure, controlling airflow, improving safety, ensuring emissions control, and promoting overall efficiency.

Key Features of the Industrial Differential Pressure Transmitter

1. Advanced Monocrystalline Silicon Differential Pressure Sensor:

• The monocrystalline silicon sensor offers enhanced precision, high stability, and long-term reliability, which is critical for maintaining the integrity of pressure measurements in fluctuating conditions.

2. Wide Pressure Range Coverage (±3MPa):

• This wide range ensures that the transmitter can handle both high and low-pressure conditions typical in industrial flue-gas systems, providing flexibility across different stages of the chimney and exhaust process.

3. Double-Wire Mode, 4–20mA Analog Output, and HART® Protocol:

• The dual-wire configuration and analog output are ideal for industrial applications, providing reliable data transmission. The inclusion of HART® protocol allows for remote communication, diagnostics, and adjustments without needing physical intervention, which is particularly beneficial in hazardous environments like flue-gas stacks.

4. Intelligent LCD Gauge Head with Backlight:

• This feature provides easy-to-read measurements in real-time, even in low-light conditions, which is essential for operators to monitor system performance and make timely adjustments as needed.

5. Remote Transmission and Local Adjustment Capability:

• The transmitter allows both remote monitoring and adjustment of the zero and pressure range settings, offering flexibility for operators to optimize the system without being physically on-site.

6. Complete Varieties, High Accuracy, Good Stability:

• The transmitter ensures highly accurate readings with low drift over time, which is vital for preventing inaccuracies that could lead to faulty system operation or non-compliance with environmental regulations.

7. Ex-Proof Housing Structure, Frequency Conversion Interference Resistance:

• The robust housing structure and protection from interference make the transmitter suitable for challenging industrial environments where electromagnetic interference (EMI) or harsh conditions like dust, moisture, or temperature extremes are present.

8. High Static Pressure and Overload Protection:

• High static pressure protection ensures the transmitter can withstand large pressure surges without failing, while overload protection prevents damage from unexpected spikes in pressure.

9. Double Overload Protection Diaphragm Design:

• The double diaphragm design provides additional protection for the sensor, increasing the durability and reliability of the transmitter in extreme conditions.

10. Lightning Protection Circuit Design:

• Lightning protection ensures the system is safe from electrical surges caused by atmospheric conditions, minimizing downtime or equipment damage during storms.

How the Differential Pressure Transmitter Helps the Flue-Gas Stack Industrial Chimney Factory

1. Flue-Gas Flow Control:

• Differential pressure transmitters are essential in controlling the flow of flue gases through the chimney. By measuring pressure differences across the system, the transmitter can determine whether the gas flow is within optimal limits. A constant or regulated pressure helps prevent damage to the chimney, ensures efficient exhaust, and helps maintain proper combustion processes in industrial furnaces or boilers.

• If the pressure in the stack increases beyond safe levels due to a blockage or faulty ventilation, the transmitter will signal operators to take corrective action, such as adjusting the airflow or cleaning the system.

2. Monitoring Emission Levels:

• Emission levels of harmful gases, such as CO2, NOx, and particulates, are a major concern for industrial chimneys. A differential pressure transmitter can be used in conjunction with other monitoring systems to ensure the flue-gas stack is operating within acceptable emission limits.

• Pressure data from the transmitter allows operators to assess whether the gas exhaust is flowing smoothly through the scrubbers or filtration systems, helping to reduce the environmental impact of the factory's operations and ensuring compliance with regulations.

3. Early Detection of System Failures:

• By continuously monitoring differential pressure, the transmitter can provide early warnings about potential system failures. For example, if there’s a sudden drop in pressure, this could indicate an obstruction or leak in the system that could compromise performance and safety.

• The transmitter’s ability to send real-time data via HART® protocol allows for immediate troubleshooting without the need for onsite inspections, reducing downtime and preventing more significant failures.

4. Improving Safety and Preventing Hazardous Situations:

• Safety is paramount in industrial applications, particularly when dealing with high-temperature flue gases and potentially explosive environments. The high overload protection and explosion-proof housing ensure that the differential pressure transmitter remains operational even in extreme conditions, protecting both workers and equipment.

• Moreover, by providing accurate real-time pressure data, operators can proactively adjust operational parameters, such as gas flow rates or furnace temperatures, to prevent dangerous conditions like pressure buildup or system rupture.

5. Optimizing Energy Efficiency:

• Efficient airflow is essential for energy optimization in a flue-gas system. A differential pressure transmitter helps maintain the correct balance of air pressure across the system, preventing energy losses that may occur due to inefficient combustion or over-ventilation.

• By ensuring that the pressure in the flue-gas stack is within the optimal range, the transmitter helps reduce fuel consumption, lower emissions, and improve the overall efficiency of the factory’s operations.

6. Remote Monitoring and Control:

• With remote transmission capability and HART® communication, the transmitter can provide continuous data monitoring to a central control system, enabling remote diagnostics and adjustments without direct intervention. This feature significantly reduces the time and cost involved in manual inspections and maintenance.

• Operators can receive alerts and performance data remotely, allowing for more responsive actions to system performance fluctuations, especially in dangerous or difficult-to-access areas like high chimneys.

7. Preventing System Damage from Overpressure:

• Overpressure in flue-gas systems can lead to catastrophic damage, such as ruptures or fires. The transmitter’s high static pressure protection and double overload diaphragm design help safeguard the system by detecting when the pressure exceeds safe operating limits and alerting operators before serious damage occurs.

8. Ensuring Regulatory Compliance:

• Governments and environmental agencies have strict regulations for industrial emissions, and failure to comply can result in significant fines or legal issues. Differential pressure transmitters play a role in ensuring compliance by providing accurate data to monitor emission levels, pressure conditions, and system integrity. This ensures that the flue-gas stack system is always within the legal parameters, reducing the risk of costly penalties.




The industrial differential pressure transmitter offers a versatile and reliable solution for the flue-gas stack and chimney manufacturing facility, addressing critical needs related to system monitoring, emissions control, safety, and energy efficiency. With its advanced features such as high overload protection, HART® protocol data communication, and intelligent LCD display, it provides valuable insights into system performance while ensuring optimal safety and regulatory compliance. By integrating these transmitters into the facility’s flue-gas stack systems, the factory can expect enhanced operational efficiency, reduced downtime, and a more environmentally friendly production process.
