PCM710 Intelligent Pressure Switch: Precision Monitoring for Hydraulics, Automation, and Agricultural Machinery

In today’s rapidly evolving industrial landscape, automation, precision, and real-time data are essential to achieving operational efficiency, reducing downtime, and ensuring safety. The PCM710 Intelligent Pressure Switch is a comprehensive solution that merges advanced sensing, intelligent processing, and robust output capabilities into a compact and versatile device. Designed for pressure measurement, monitoring, and control, the PCM710 is widely adopted across numerous industries including energy, water treatment, petroleum, chemical, hydraulic systems, and machinery manufacturing.

This article outlines a complete technical solution utilizing the PCM710, detailing its key features, technical specifications, application scenarios, competitive advantages, and the technical support framework offered by our team.

---

 2. Product Overview

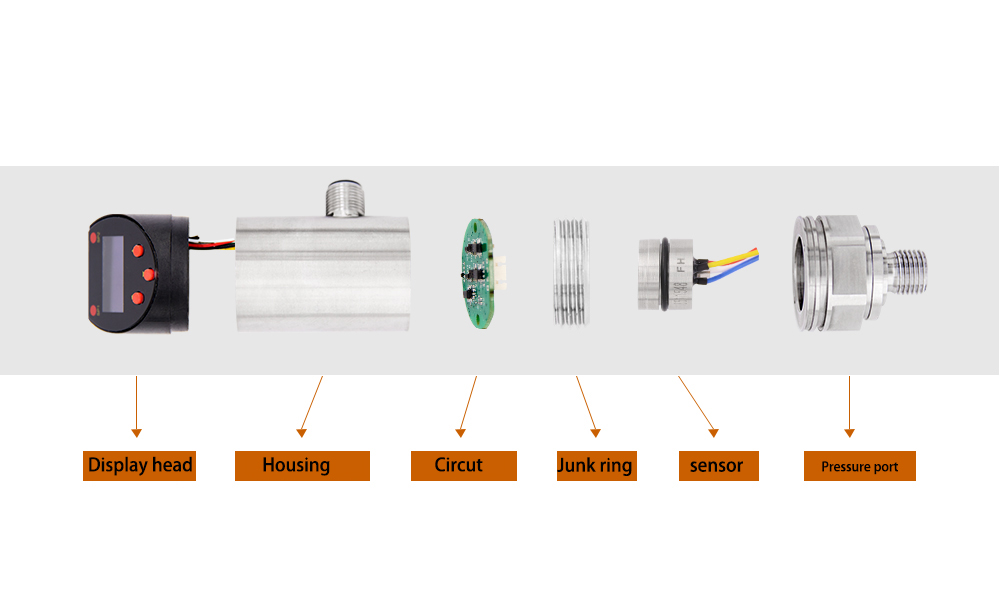

The PCM710 is a fully electronic, intelligent pressure switch that integrates pressure measurement, digital display, analog output, and dual-channel switching control. At the heart of the PCM710 is a high-accuracy silicon piezoresistive pressure sensor. This sensor’s analog output is amplified using a low-drift, high-precision amplifier and converted into a digital signal via a high-resolution A/D converter. A microprocessor processes this data to drive both the display and the output functions.

The result is a highly reliable and flexible pressure controller that delivers accurate, real-time information and control capabilities directly at the point of measurement.

---

 3. Technical Specifications

---

 4. Key Features

- High Switching Accuracy – Suitable for precision control tasks.

- Adjustable Response Time – Optimized performance across different applications.

- NPN/PNP Compatibility – Easily integrated into existing control systems.

- One-Key Zero Calibration – Simplifies setup and ensures long-term reliability.

- Quick Unit Switching – Convenient for international and multi-process applications.

- Real-Time OLED Display – Clear, vibrant readout even in low-light environments.

- Status Indicators – LED indicators for output switching status.

---

 5. Application Industries and Equipment Use Cases

The PCM710’s versatility and robustness make it ideal for pressure measurement and control in a wide range of industries and equipment. Below are some of the most common application scenarios:

 5.1 Hydropower and Water Treatment

In water treatment plants and hydropower stations, precise control of fluid pressure is vital to maintain system efficiency and prevent damage. The PCM710 monitors pressure in pipelines, pump systems, and storage tanks, helping operators automate processes and detect anomalies.

Example Applications:

- Booster pump control

- Water filtration and RO system monitoring

- Water tower level and pressure balancing

 5.2 Oil and Gas

In the oil and gas sector, safety and real-time monitoring are critical. The PCM710 handles high pressures and provides accurate data output for use in upstream extraction, midstream transport, and downstream processing.

Example Applications:

- Wellhead pressure monitoring

- Pipeline switching and leak detection systems

- Separator vessel and compressor pressure control

 5.3 Chemical Industry

Chemicals often involve complex processes and hazardous fluids. The PCM710 offers stable output and fast response, allowing safe and automated control of pressure in reactors, pipelines, and dosing systems.

Example Applications:

- Reactor pressure feedback control

- Acid/alkali transfer pump protection

- Gas cylinder pressure monitoring

 5.4 Industrial Machinery and Automation

For automated machinery and production lines, pressure feedback is essential for both operational efficiency and safety. The PCM710’s dual output mode supports both monitoring and control functions simultaneously.

Example Applications:

- Pneumatic press regulation

- Hydraulic press and injection molding machines

- Conveyor pneumatic systems

 5.5 Hydraulic Systems

In mobile or fixed hydraulic systems, such as those used in construction equipment or factory automation, the PCM710 helps protect pumps and actuators from overpressure, while improving process stability.

Example Applications:

- Hydraulic actuator control

- Pressure monitoring in lifting systems

- Load sensing in heavy machinery

---

 6. Competitive Advantages

 6.1 Comprehensive Integration

Unlike traditional pressure switches that only offer on/off control, the PCM710 combines multiple functions—measurement, display, switching, and analog output—into one compact unit. This integration reduces wiring, simplifies installation, and enhances reliability.

 6.2 Flexible Configuration

The PCM710 supports both NPN and PNP output types, making it easy to integrate into new and existing PLC and DCS systems. Response time and switching logic are adjustable, accommodating various control requirements.

 6.3 Durability and Environmental Protection

The robust design includes IP65 protection and wide operating temperature ranges (-25℃ to 80℃), making the PCM710 suitable for harsh environments. Overload capacity up to 300% FS ensures it can handle pressure spikes without damage.

 6.4 User-Friendly Interface

With a 4-digit OLED display, intuitive push-button controls, and one-key zeroing function, operators can easily calibrate and configure the unit on-site. Quick unit switching supports flexibility in multi-region operations.

---

 7. Technical Support and Services

We understand that reliable products need to be backed by responsive and knowledgeable technical support. Our services include:

 7.1 Application Consultation

Our team provides detailed pre-sale guidance to help you select the right pressure switch configuration for your specific application—ensuring proper range, output mode, and protective features.

 7.2 Customization Options

For OEM and specialized applications, we offer custom ranges, electrical connectors, output signal types, or packaging to match system requirements.

 7.3 Fast Delivery and Spare Parts

We maintain ample stock of core models and components to ensure rapid lead times and uninterrupted supply for your projects.

 7.4 After-Sales Support

We provide technical documentation, installation guides, and remote diagnostic support. For integrators and OEMs, we also offer engineering assistance for system design and troubleshooting.

 7.5 Quality Assurance

Each PCM710 unit is fully calibrated and tested before shipment. Our factory adheres to strict quality control standards, ensuring long-term reliability and performance stability.

---

The PCM710 Intelligent Pressure Switch delivers a powerful combination of precision, flexibility, and ease of use for industrial pressure measurement and control. With its advanced features, broad compatibility, and rugged design, it is ideally suited to meet the demands of modern industrial automation.

Whether you are in water treatment, oil and gas, chemical production, or machinery automation, the PCM710 offers a future-proof solution that supports both efficiency and safety. Backed by our expert technical team and reliable supply chain, we provide not only a product—but a complete pressure control solution.
