Industrial Diesel Fuel Level Monitoring Solution Using WTsensor-PCM260 Transmitter

Looking for a reliable way to monitor diesel fuel levels in generator sets? The WTsensor-PCM260 submersible level transmitter offers a durable and accurate solution for fuel tank monitoring. Designed with industrial-grade stainless steel and diesel-resistant cables, it ensures long-term stability, supports 4–20 mA or RS485 Modbus outputs, and is easy to integrate with control panels and remote monitoring systems. Perfect for liquid storage tanks, sewage or industrial DG fuel tanks.

Solution for the Application of Level Transmitter in Diesel Generator Sets

Introduction:In diesel generator sets, the accurate measurement and monitoring of fuel levels are critical for ensuring continuous operation and preventing damage to the engine due to low fuel conditions. The WTsensor-PCM260 Submersible Level Transmitter offers a reliable, precise, and durable solution for measuring the fuel level in the tanks of diesel generator sets. This solution is designed to provide real-time monitoring and ensure the optimal performance of the generator while minimizing downtime due to fuel issues.

How PCM260 Works in Diesel Generator Sets:

• Installation: The PCM260 is installed by inserting its probe into the diesel generator's fuel tank. The probe measures the static pressure of the fuel, which correlates to the fuel depth in the tank.

• Measurement and Signal Output: The pressure sensor detects the liquid's static pressure, which is then converted into a proportional output signal (either current or voltage). This signal can be connected to a monitoring system to display fuel levels continuously.

• Real-Time Monitoring: With the optional LCD display, the operator can monitor the fuel level directly at the generator site, ensuring that timely refueling is performed. Additionally, the signal can be integrated into a centralized control system for remote monitoring.

• Safety and Efficiency: By providing accurate, real-time fuel level data, the PCM260 helps prevent running out of fuel, which could lead to a shutdown of the generator, potentially causing operational disruptions. The transmitter also provides valuable data that can be used for fuel management and scheduling refueling operations efficiently.

•

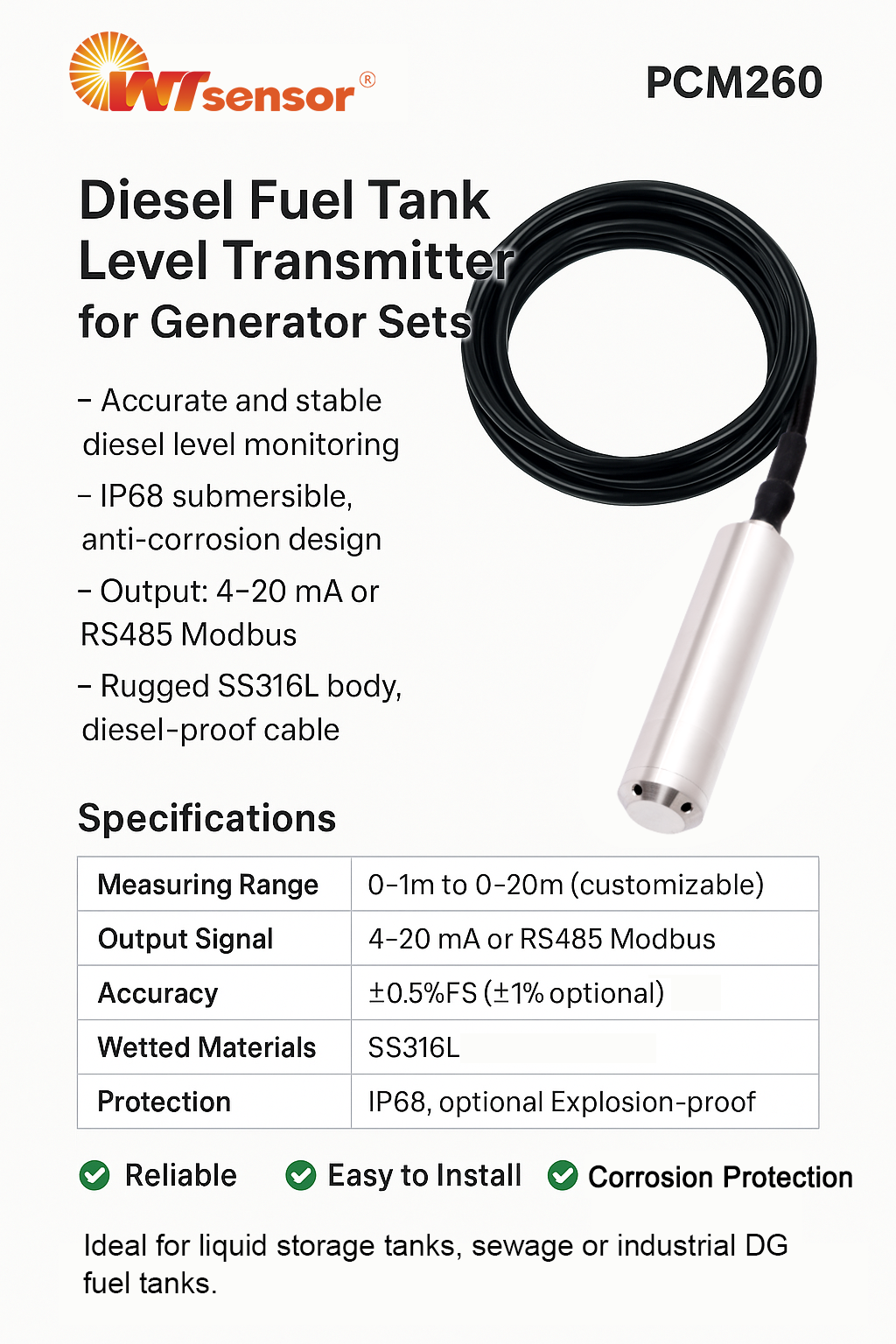

⭐ Key Features – WTsensor PCM260 Submersible Level Transmitter

• ✅ High-Accuracy Sensor: Built-in piezoresistive diffused silicon pressure sensor ensures stable and precise liquid level measurement.

• ✅ Submersible Design: Probe-style insertion allows direct submersion into the liquid – simple and secure installation.

• ✅ Liquid Level Monitoring: Ideal for continuous static pressure-based level measurements in a wide range of liquids.

• ✅ Rugged Construction: Multiple protective structures with IP68 rating ensure durability and long-term outdoor use.

• ✅ Optional LCD Display: Real-time local level display available for easy monitoring on-site.

• ✅ Versatile Form Factor: Available in multiple styles to match application-specific needs (range, materials, signal type, etc.).

• ✅ Corrosion-Resistant Materials: Built with anti-corrosion stainless steel (SS316L) and optional PTFE/Viton for compatibility with aggressive liquids.
