Advanced Flush Diaphragm Pressure Sensors: PCM350 and PCM1350 for Industrial Solutions

In industrial processes where precision and hygiene are paramount, selecting the appropriate pressure measurement instruments is crucial. Our company offers two advanced flush diaphragm pressure sensors—the PCM350 and PCM1350—designed to meet the rigorous demands of various industries. These sensors play a vital role in ensuring accurate pressure measurements, maintaining sanitary conditions, and enhancing operational efficiency.

  Understanding Flush Diaphragm Pressure Sensors

A flush diaphragm pressure sensor features a diaphragm that is level with the sensor's housing, allowing direct contact with the measured medium. This design offers several key advantages:

-   Smooth Surface:   The flush design minimizes areas where process media can accumulate, reducing contamination risks and facilitating easy cleaning.

-   Reduced Clogging Risk:   With no recesses or cavities, these sensors are less prone to clogging, making them ideal for measuring viscous or particulate-laden fluids.

-   Enhanced Response Time:   Direct contact with the medium enables quicker detection of pressure changes, improving process control.

-   Versatility:   Suitable for industries such as food and beverage, pharmaceuticals, and chemicals, where hygiene and precision are critical.

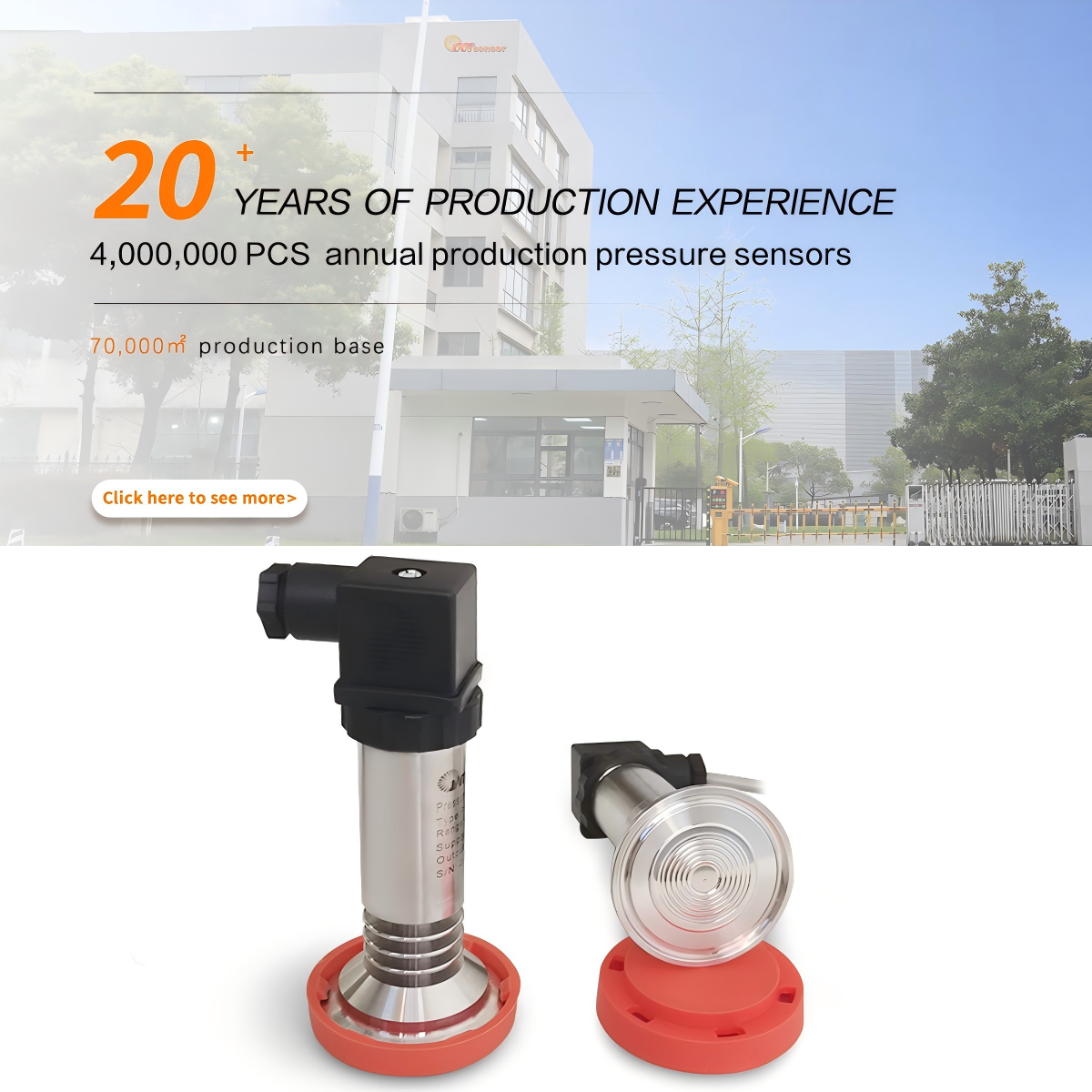

  PCM350 Flush Diaphragm Pressure Sensor

The PCM350 is engineered for applications requiring stringent sanitary conditions and resistance to clogging. Its features include:

-   316L Stainless Steel Flush Diaphragm:   Ensures compatibility with a wide range of media and maintains hygiene standards.

-   Wide Pressure Range:   Capable of measuring pressures from -100 kPa to 10 MPa, accommodating both absolute and gauge pressures.

-   High-Temperature Capability:   Optional cooling fins allow the sensor to operate with media temperatures up to 250°C, suitable for high-temperature processes.

-   Multiple Output Signals:   Offers various output options, including 4–20 mA, 0–5 V, and 1–5 V, ensuring compatibility with different control systems.

-   Applications:   Ideal for industries such as food and beverage, pharmaceuticals, and environmental protection, where sanitary conditions and easy cleaning are essential.

  PCM1350 Flush Diaphragm Pressure Sensor

The PCM1350 is designed for high-precision applications in demanding industrial environments. Its key features include:

-   SS316L Isolation Diaphragm Structure:   Provides excellent corrosion resistance and durability in harsh conditions.

-   High Accuracy and Stability:   Delivers precise pressure measurements with strong anti-interference capabilities, ensuring reliable performance.

-   Adjustable Zero and Span Output:   Allows for calibration to specific application requirements, enhancing measurement flexibility.

-   Diverse Form and Structure:   Available in various configurations to facilitate easy installation across different systems.

-   Applications:   Suitable for oil and gas, compressed air systems, steam, liquids, pastes, and powder media, as well as vacuum pressure detection in processes like vacuum transfer pump monitoring.

  Role in Industrial Solutions

Both the PCM350 and PCM1350 play pivotal roles in enhancing industrial processes:

-   Ensuring Product Quality:   Accurate pressure measurements are essential for maintaining consistent product quality, especially in industries like food and pharmaceuticals, where precise pressure control affects product integrity.

-   Maintaining Sanitary Conditions:   The flush diaphragm design of these sensors prevents contamination and facilitates easy cleaning, crucial for complying with stringent hygiene standards.

-   Enhancing Process Efficiency:   Quick response times and reliable measurements enable better process control, reducing downtime and increasing productivity.

-   Versatility Across Applications:   The robust construction and adaptability of these sensors make them suitable for a wide range of applications, from monitoring vacuum pressures to handling high-temperature media.

Our PCM350 and PCM1350 flush diaphragm pressure sensors are engineered to meet the diverse needs of modern industrial applications. Their design ensures accurate pressure measurements, maintains sanitary conditions, and enhances overall process efficiency. By integrating these sensors into your systems, you can achieve higher reliability and performance, essential for staying competitive in today's industrial landscape.
