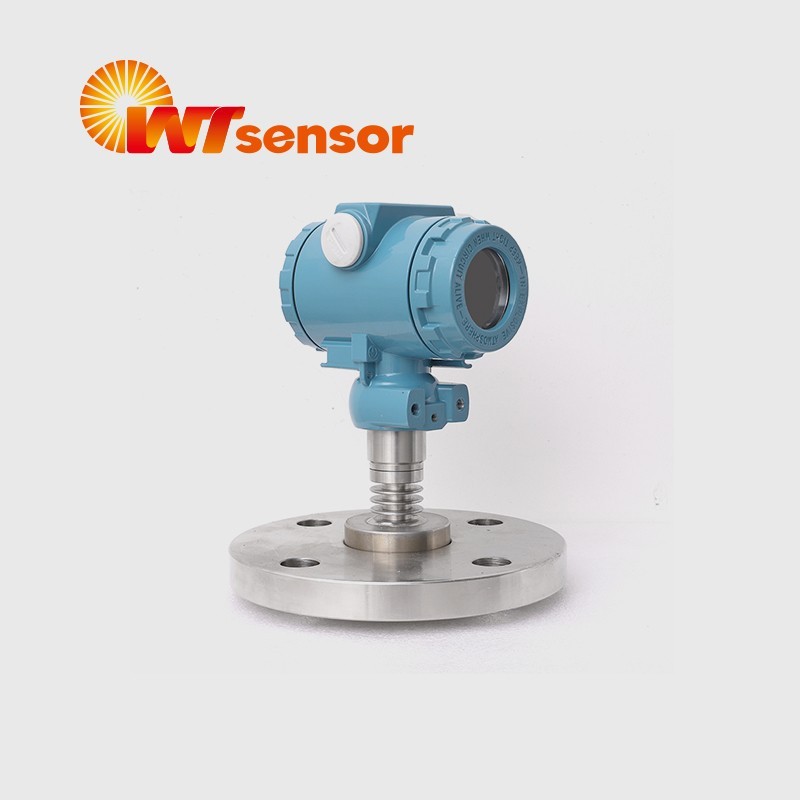

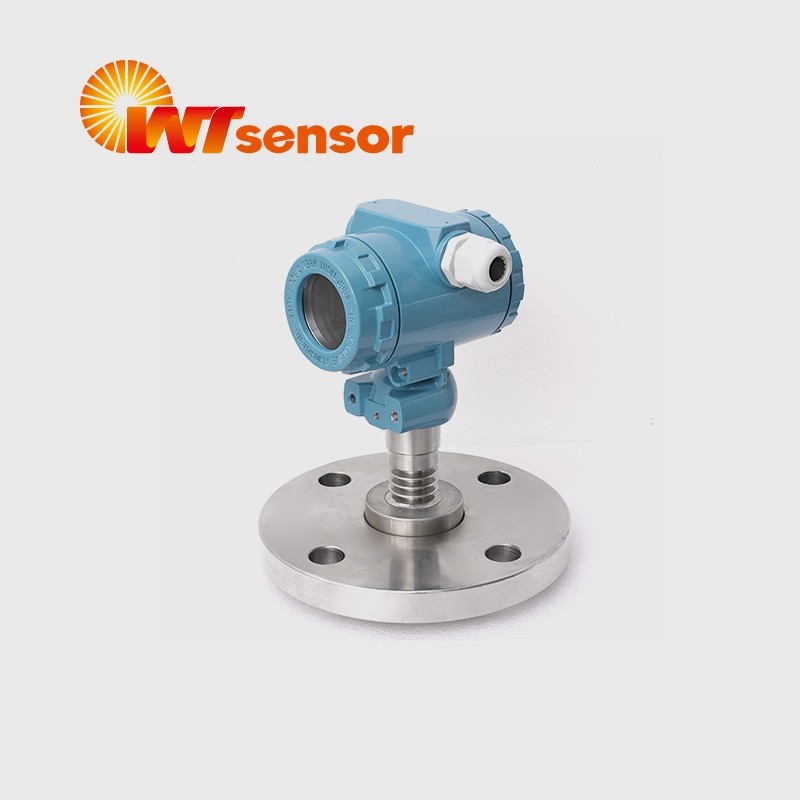

flange flush diaphragm pressure sensor PCM450

Features

 Flange mounting

 Double-wire mode, 420mA analog output, HART® protocol data communication

Intelligent LCD display with backlight

Diaphragm with large size, all-welded sealing, reliable and durable

 Used for the pressure measurement for gas, liquid, steam

Optional anti-corrosion diaphragm (Tantalum, Hastelloy C, 316L, 316L sprayed with PTFE)

Especially suitable for high temperature viscous liquid

 The price is cheaper than that of similar imported instruments


Product Parameters

Performance parameters


Pressure range

-100kPa…0~10kPa…10MPa



Pressure reference

Gauge pressure,  Absolute pressure



Supply & output

420mA, 420mA+HART® protocol (24V power supply)



Accuracy

±0.5%F.S. (@25±5)



Temperature drift

≤35kPa: ±3%F.S. (060

Other ranges: ±2%F.S. (-1070



Operating temp.

-3080; with LCD gauge outfit -3070



Medium temp.

-40100



Storage temp.

-4085



Insulation resistance

≥100MΩ/250VDC (200MΩ/500VDC)



Protection grade

IP65



Ex-proof grade

Exd II BT6 Gb



Overpressure

150%FS



Long-term stability

±0.2%FS/year



Diaphragm material

316L, 316L sprayed with PTFE, Hastelloy C, tantalum



Filling liquid

Silicon oil



Housing material

Die-casting aluminum epoxy resin coating



Electrical connection

M20×1.5



Pressure connection

DN25, DN50, DN80



Weight

about 3.5kg (DN50)




Pressure range selection


Code

Meaning

Available range (X is the measured pressure value)



10kG

10kPa Gauge

0kPaX10kPa



35kG

35kPa Gauge

10kPaX35kPa



70kG

70kPa Gauge

35kPaX70kPa



100kG

100kPa Gauge

70kPaX100kPa



250kG

250kPa Gauge

100kPaX250kPa



500kG

500kPa Gauge

250kPaX500kPa



1MG

1MPa Gauge

500kPaX1MPa



1.6MG

1.6MPa Gauge

1MPaX1.6MPa



1MS

1MPa Sealed gauge

1MPaX2.5MPa



2.5MS

2.5MPa Sealed gauge

2.5MPaX4MPa



10MS

10MPa Sealed gauge

4MPaX10MPa

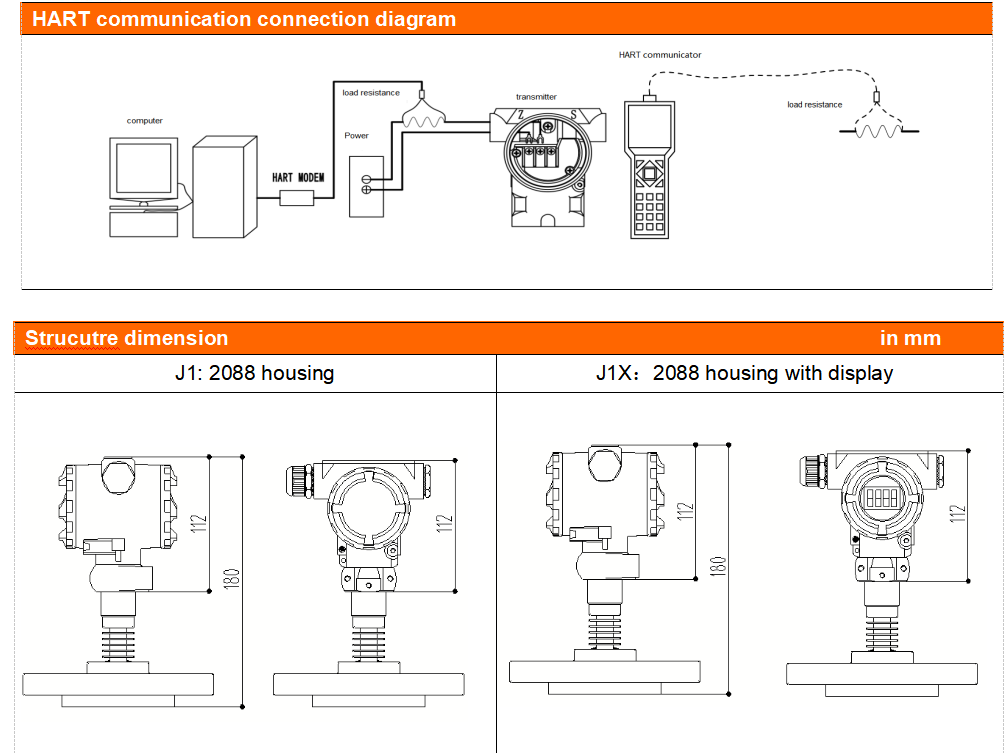

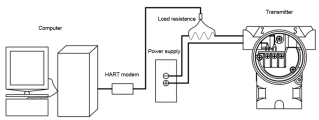

HART communication connection diagram










Outline dimension

J1: 2088 housing

J1X: 2088 housing with display

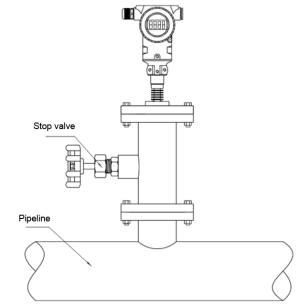

Installation diagram

Outline drawing

Installation instruction


▲Integrated pressure transmitter, direct installation with the process connector;

▲The gasket is selected according to the medium characteristic and temperature range, and the balanced locking for various bolts should be ensured.
