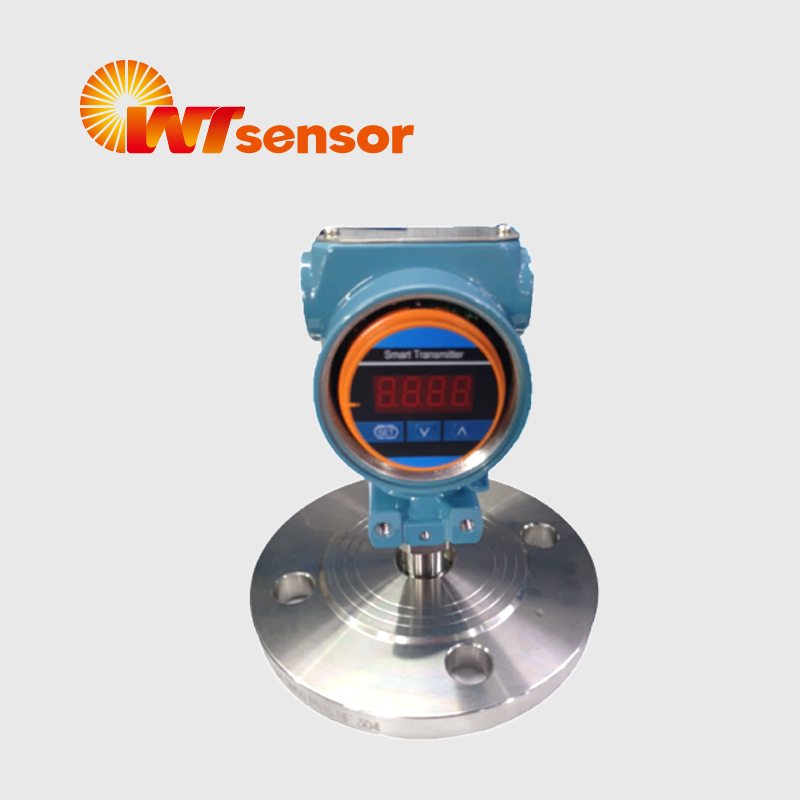

Diffused Silicon Piezoresistive Flange Pressure Transmitter PCM400F
Features
■ Using high performance diffused silicon piezoresistive sensor
■ Used for pressure measurement of gas, liquid and other media
■ Wide pressure range
■ With digital display
■ Multiple output signals can be selected
Applications
■ Industrial field control
■ Oilfield
■ Heavy industry
■ Chemical Industry
■ Gas pipe network
■ Water supply network
Product Parameters
Performance parameters | |
Pressure range | -100kPa…0~20kPa…100MPa |
Pressure reference | Gauge pressure ,Absolute pressure ,Sealed gauge pressure |
Supply & output | Supply:18-36V;Output:4-20mA |
Supply:12-36V;Output:4-20mA with display; | |
Operating temp. | -20℃~85℃ |
Medium temp. | -20℃~85℃ |
Storage temp. | -40℃~125℃ |
Zero temp. coefficient | ±1.5%FS(＠-20℃~85℃) |
Span temp. coefficient | ±1.5%FS(＠-20℃~85℃) |
Overpressure | 150%FS~300%FS |
Mechanical vibration | 20g（20~5000Hz) |
Shock | 100g（11ms） |
Overall Accuracy | ±0.5%FS |
Insulation | 100MΩ/250VDC |
Response time | ≤1ms（up to 90%FS） |
Long term stability | ±0.2%FS/year |
Protection | IP65 |
Ex-proof | ExiaⅡCT6 |
Material | Low copper aluminum alloy for shell, 316L for isolation diaphragm |
Medium compatibility | All the media compatible with stainless steel 316L |
Electrical connection |
Type | J1: 2088 housing | J2: 2088 housing with display |
Dimension in mm |
| |
| |
