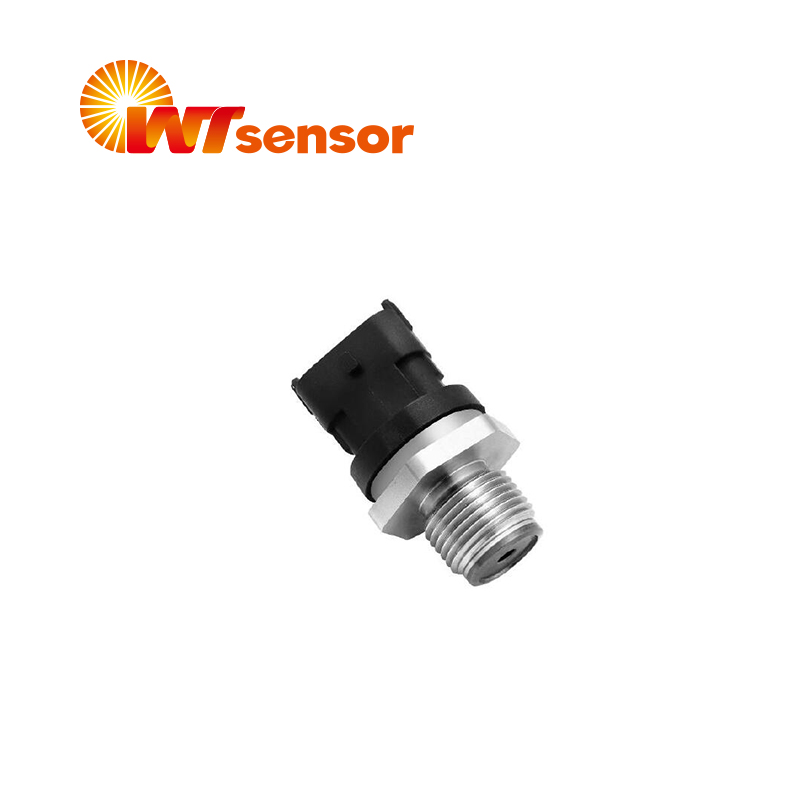

High Pressure Common Rail Pressure Transmitter PCM3601

Features:

■ Integrated structural design, no leakage risk, digital circuit processing

■ Excellent shock resistance, anti-overpressure and anti-vibration

■ Strong anti-interference, good long-term stability

■ Small size, light weight, easy to install and use

■ Various process and electrical connection options

■ Suitable for batch production, economic and reliable

Applications:

■ Diesel ECU control system


Product Parameters

Performance parameters

Pressure range

0150MPa, 180MPa, 200MPa


Pressure reference

Gauge Pressure


Accuracy

±1%F.S. (linearity, hysteresis, repeatability, calibration) @25ºC


Full scale error

±2%F.S.(-40ºC~140ºC)


Operating temp.

-40ºC~140ºC


Storage temp.

-40ºC~140ºC


Overpressure

200%F.S.


Burst pressure

400%F.S.


Performance parameters (cont.)


Service life

≥5000000 full-scale pressure cycles


Vibration resistance

10g(50-2000Hz)


Output and supply

0.5~4.5VDC R/M (5±0.25VDC supply)


Output response time

≤10mS


Reverser voltage

-14VDC(voltage output type)


Protection

IP65


EMC(512MHz-1GHz)

100V/m


EMC(1MHz-512MHz)

50V/m


Sensing element material

17-4PH


Housing material

Stainless steel 304


Certificate

RoHS, REACH

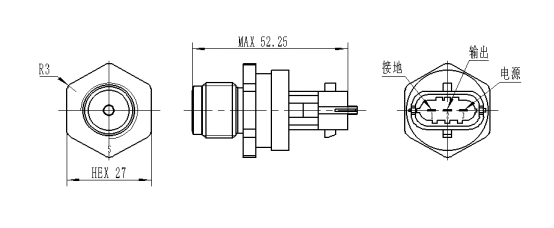

Typical drawing





























Production process

PCM3601 High Pressure Common Rail Pressure Transmitter


                                                           Testing Equipment


Φ19mm Piezoresistive Silicon Pressure Sensor PC10PΦ19mm Piezoresistive Silicon Pressure Sensor PC10P

Φ19mm Piezoresistive Silicon Pressure Sensor PC10PΦ19mm Piezoresistive Silicon Pressure Sensor PC10P

Certificate

PCM3601 High Pressure Common Rail Pressure Transmitter
