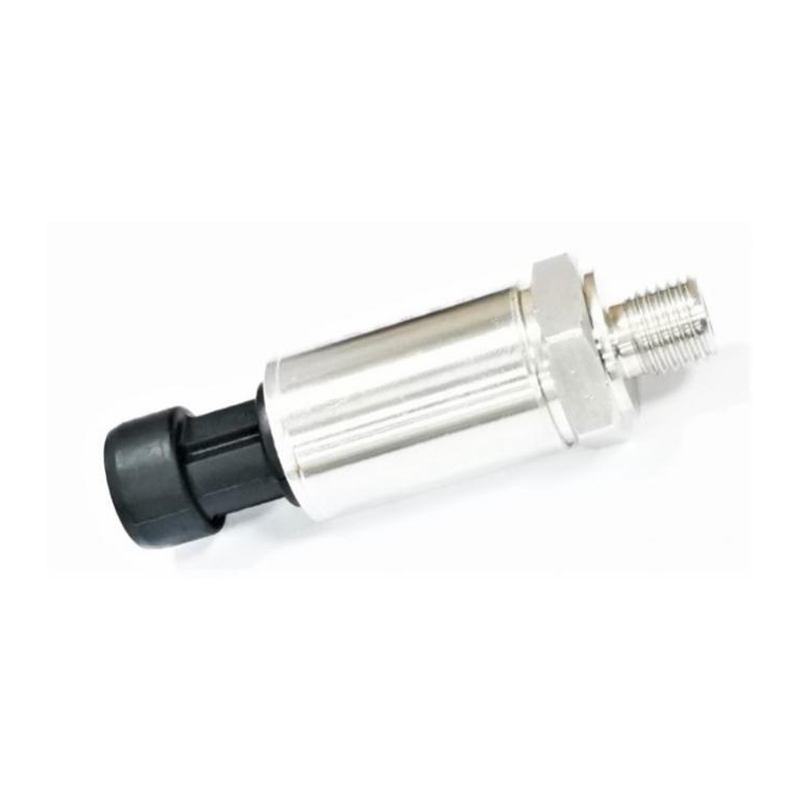

Explosion-Proof Pressure Transmitter PCM301J

Product Description

This series of sensors is a glass micro-melting pressure transmitter developed by our company specifically for measuring hydrogen. It is made of 316L material, resistant to hydrogen penetration, good stability, and has multiple output interfaces. It has a unique integrated structure, no leakage risks, and good vibration and impact resistance. It is widely used in hydrogen energy vehicles and hydrogen measurement industries.

Features

Full stainless steel structure

Reliable performance

Small size and light weight

Protection level IP65

Integrated structural design, no leakage risk

Mature technology, suitable for mass production

Vibration and shock resistance



Application and Industry

Pneumatic control

Hydrogen measurement

Hydrogen-powered vehicles

High pressure pneumatic control system




Product Parameters

Performance Parameters


Pressure range

0 2.5MPa … 70MPa


Insulation resistance

≥100MΩ / 250VDC


Accuracy

± 0.5 %FS ( @ 25 ± 5 ℃ )


Full temperature range accuracy

± 1.5 %FS (@ -20 ~ 85 ℃ )


Response time

≤90 ms


Overload pressure

2×Pressure range


Burst pressure

4×Pressure range


Service life

≥ 1 0 6 pressure cycles


Operating temperature

-40 ℃ 125 ℃


Storage temperature

-40 ℃ 125 ℃


Shock Vibration

20 g (2 0 Hz to 2 400 Hz)


Performance parameters (continued)


EMC

CISPR25:2008 CE Conducted Emission ISO 7637-2:2011 CTE Pulsed Emission
CISPR25:2008-6.4 RE Radiated Emission ISO 7637-2:2011 MFI Low Frequency Magnetic Field Immunity

CISPR25:2008-6.4 BCI high current injection ISO 7637-3:2007 ICC signal line pulse
ISO 7637-2:2011 CI power line pulse ISO 7637-3:2007 CCC signal line pulse


Protection level

IP65 (Round Packard can meet IP67 )


Medium

Various medium compatible with 316L stainless steel and hydrogen




Output and power supply

Code

B1

B6




Output

420mA

0.54.5VR/M




powered by

1230VDC

5VDC
