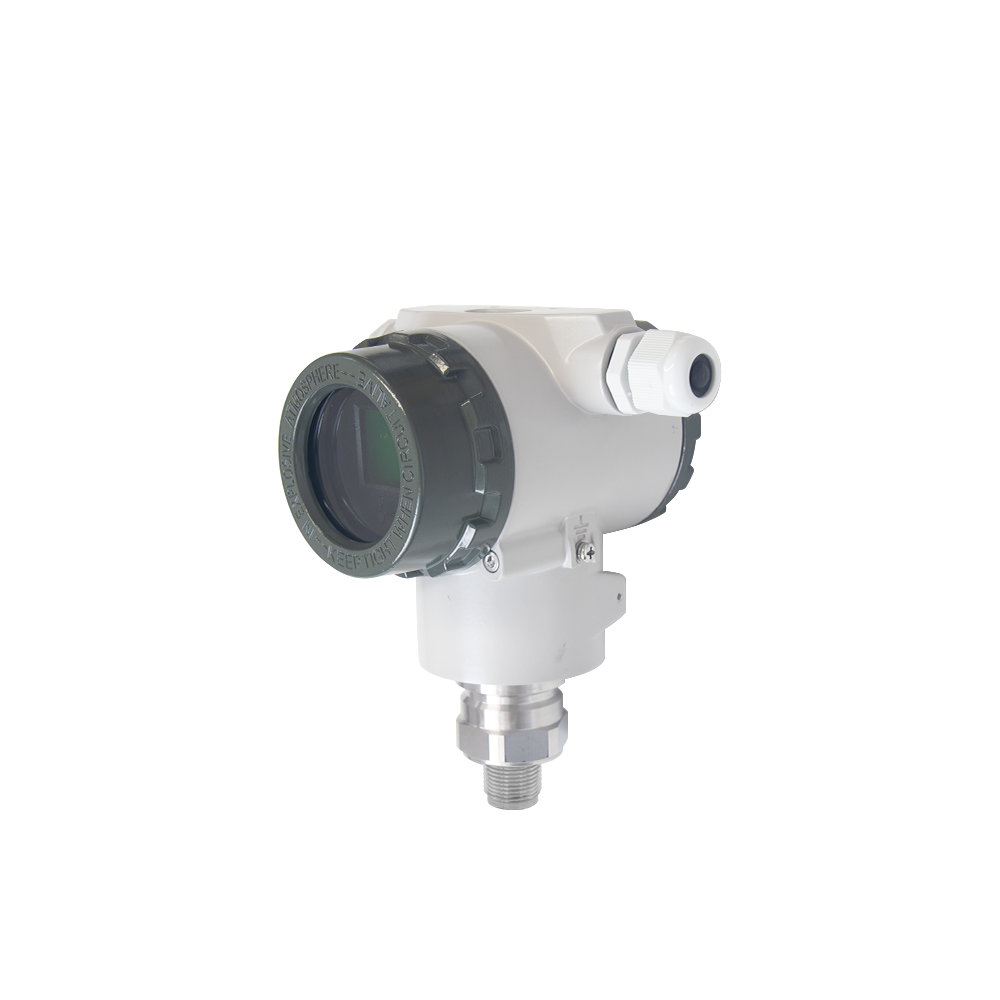

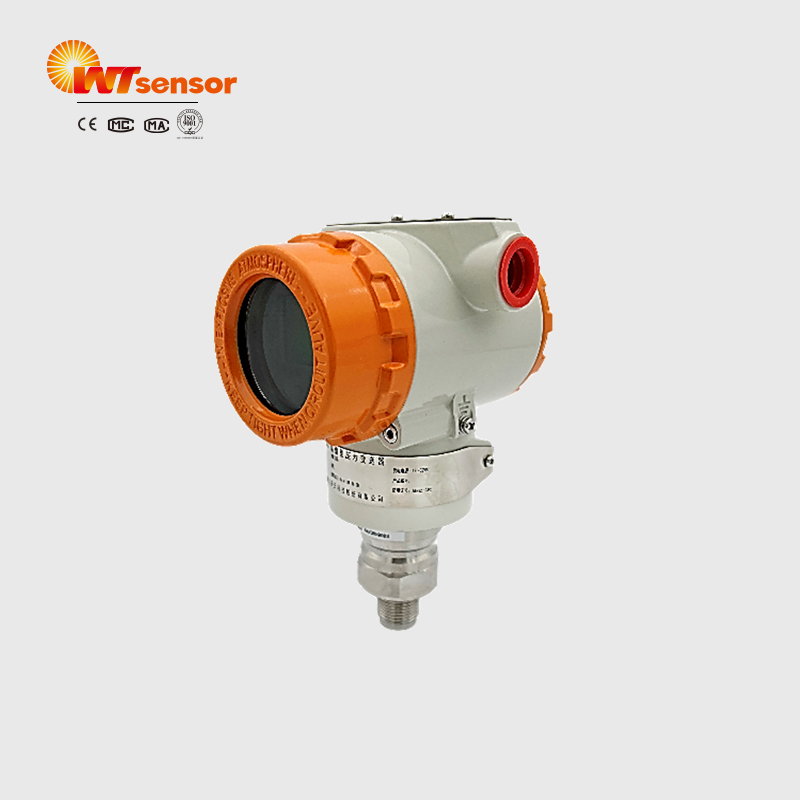

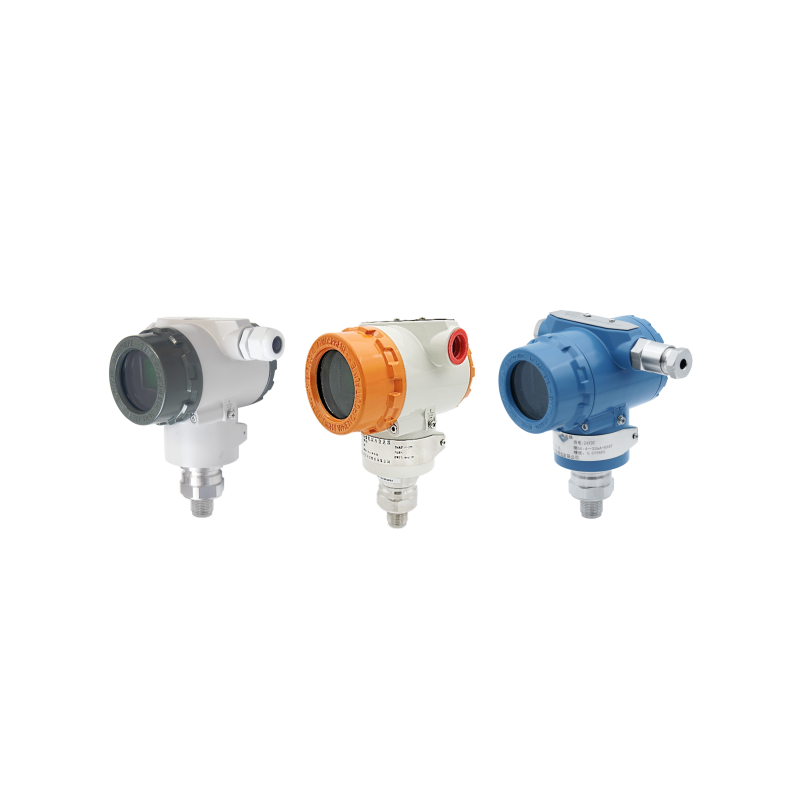

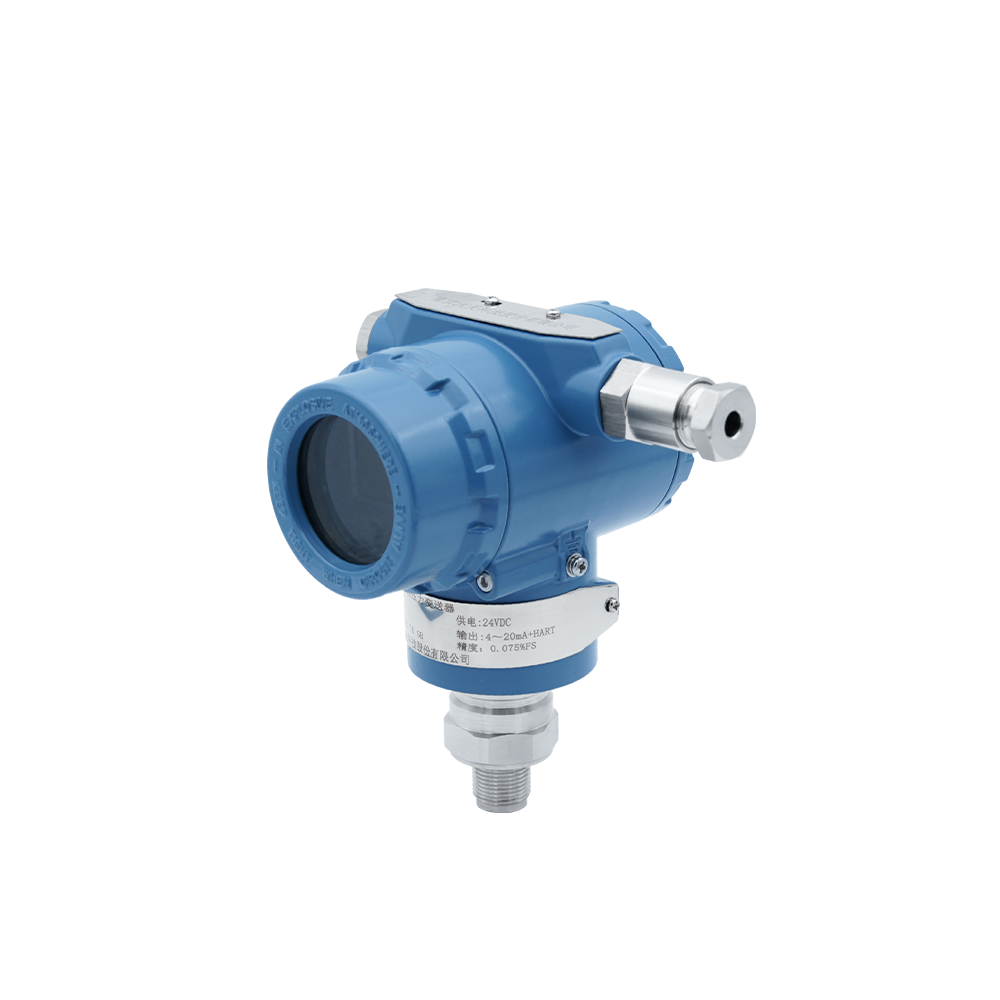

Monocrystalline Silicon Pressure Transmitter PCM2051-AP/GP
Product overview
PCM2051 chip adopts advanced MEMS monocrystalline silicon pressure sensor chip. The sensor signal is converted into a standard signal output by a dedicated signal processing module. After long-term aging and stability screening, the product performance is stable and reliable. It is applied to the outdoor scene where the environment is harsh. At the same time, it can display on-site pressure, zero point and full range migration. The installation port form of PCM2051 monocrystalline silicon pressure transmitter can be processed according to the requirements of users, and can also be compatible with other brands of transmitters. This series of products are widely used in industrial process control, petroleum, chemical, metallurgical and other industries.
Features
■Advanced MEMS monocrystalline silicon pressure sensor chip adopted
■Wide pressure range covering
■Double-wire mode, 4～20mA HART® protocol digital communication option
■Intelligent LCD gauge outfit with backlight
■With local zero and pressure range adjustment
■ Complete varieties, high accuracy, good stability,
■Isolation ex-proof housing structure, strong resistance to the frequency conversion interference
■No mechanical transmission parts, strong anti-vibration
Applications and industries

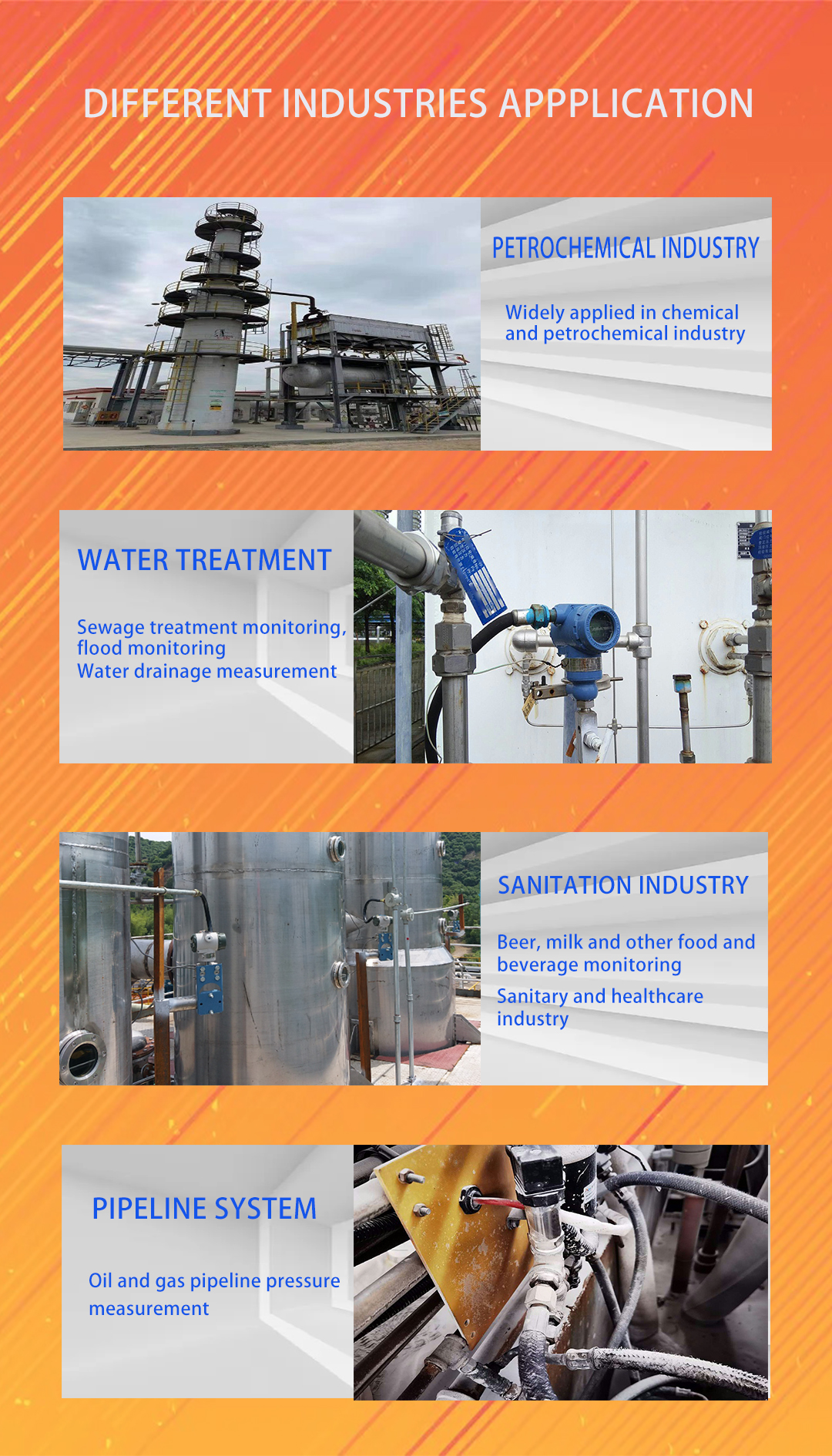

■Process control fields for the industries such as petroleum, chemical industry, metallurgy, electricity, food, papermaking, medicine, machine manufacturing, scientific experiment and military aviation etc.
Product Parameters
Performance parameters | |
Pressure range | ±6kPa G, ±40kPa G, ±100kPa G, -100～250kPa G, 0～100kPa A, 0～250kPa A, -0.1～1MPa G, -0.1～3MPa G, 0～10MPa S, 0～20MPa S, 0～40MPa S |
Pressure reference | Gauge pressure |Absolute pressure |Sealed gauge pressure |
Supply | 12V～32V, recommended 24V |
Output | 4～20mA+HART protocol |
Accuracy | ±6kPa: ±0.1%FS; Other pressure ranges: ±0.075%FS(Standard pressure range, 25±5℃) |
Temperature drift | ±6kPa: ±0.3%FS; Other pressure ranges: ±0.25%FS(Standard pressure range, -20～70℃) |
Ambient temperature | -30℃～80℃; with LCD gauge outfit: -30℃～70℃ |
Medium temperature | -40℃～120℃ |
Vibration resistance | 20g（20～5000Hz) |
Shock resistance | 100g（11ms） |
Overpressure | Please see pressure range selection |
Long-term stability | ±0.1%FS/year |
Protection grade | IP67 |
Ex-proof grade | Ex d IIC T6 Gb |
Material | Housing cast aluminum alloy; isolation diaphragm 316L |
Medium compatibility | All kinds of media compatible with SS316L |
Response time | HART collects data from sensor: 0.1s; HART outputs data: 0.5s |

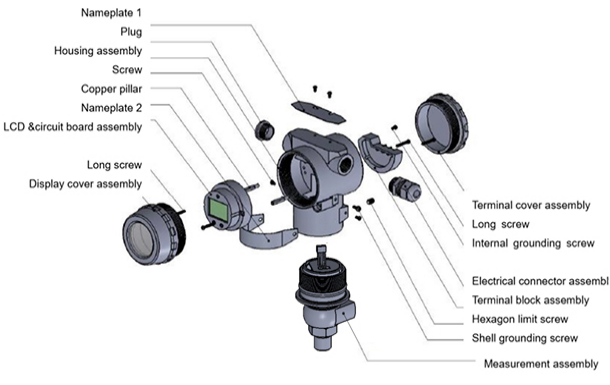

Component diagram |
|

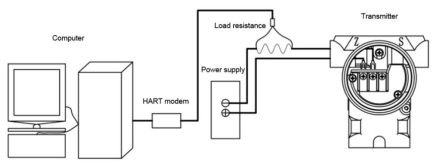

HART communication connection diagram | ||
| ||
Outline dimension | |

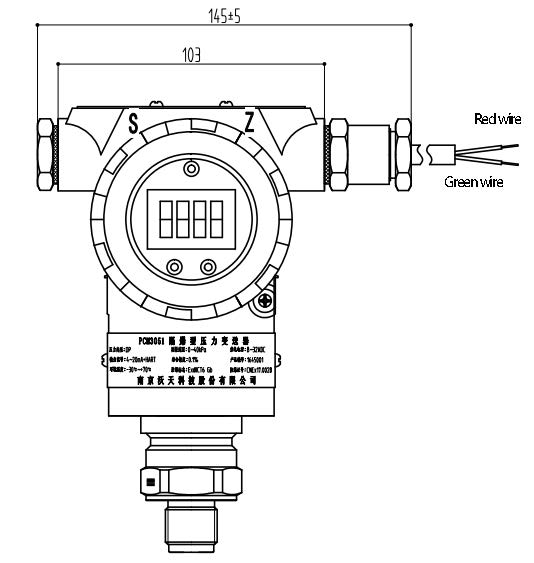

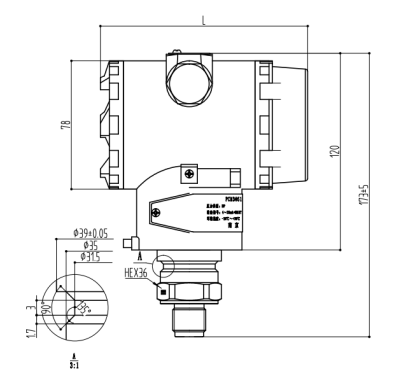

Product model | Dimension drawing In mm |
PCM2051-AP/GP |
|
Note： L with display=126±5mm L without display=108±5mm | |
Bracket： In：mm | |

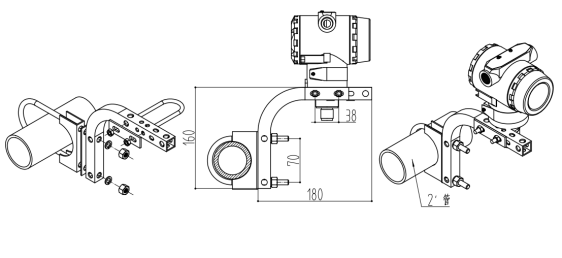

L shape bracket |
|
Note: If L shape bracket is needed, please specify in the purchase order.
Installation diagram (for reference only) |
| Installation tips: (1) The product is installed vertically on pressure port on site. (2) When installing outdoor, the transmitter should be placed in a ventilated and dry place as far as possible to avoid direct sunlight and rain, otherwise the performance will be deteriorated or malfunction. (3) When the product is installed in frequent lightning areas, it should be marked with “Lightning Protection” when ordering. It is also recommended that users install lightning protection device on site and ensure reliable grounding of product and power supply, which can reduce the probability of lightning damage to the transmitter. (4) If the transmitter is found to have no output or the output is abnormal after installation, please check: a Whether the electrical connection is accurate and firm b Is the supply voltage too low or the load resistance is too large
|
Pressure range selection | ||
Pressure range code | Pressure range | Overpressure |
6kG | ±6kPa | 300kPa |
40kG | ±40kPa | 1MPa |
100kG | ±100kPa | 2MPa |
250kG | -100~250kPa | 4MPa |
100kA | 0~100kPa A | 2MPa |
250kA | 0~250kPa A | 2MPa |
1MG | -0.1~1MPa | 6MPa |
3MG | -0.1~3MPa | 12MPa |
10MS | 0~10MPa | 20MPa |
20MS | 0~20MPa | 40MPa |
40MS | 0~40MPa | 60MPa |
Note: G: Gauge pressure, A: Absolute pressure, S: Sealed gauge pressure
