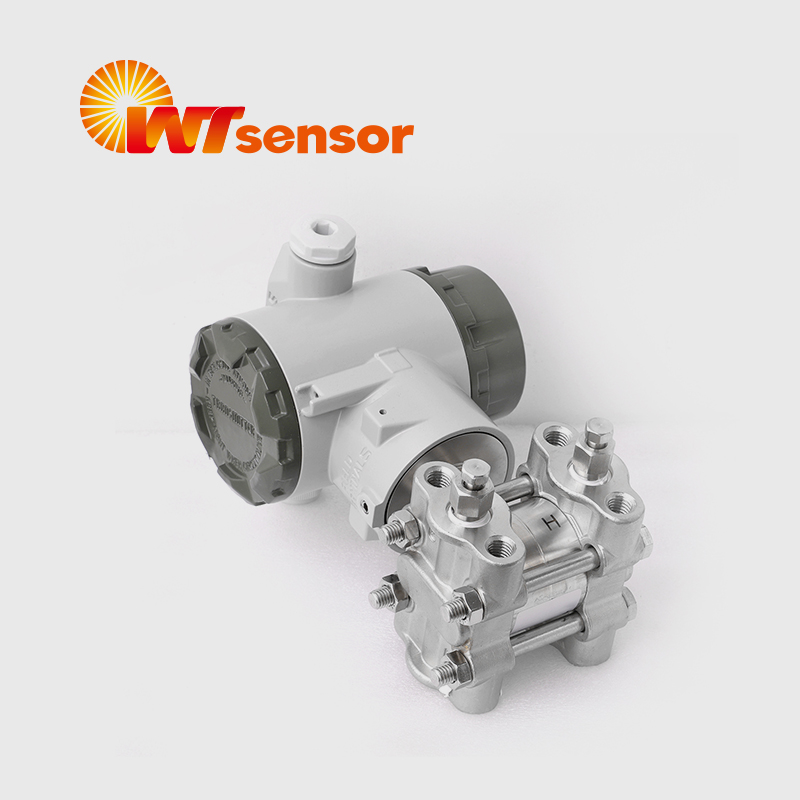

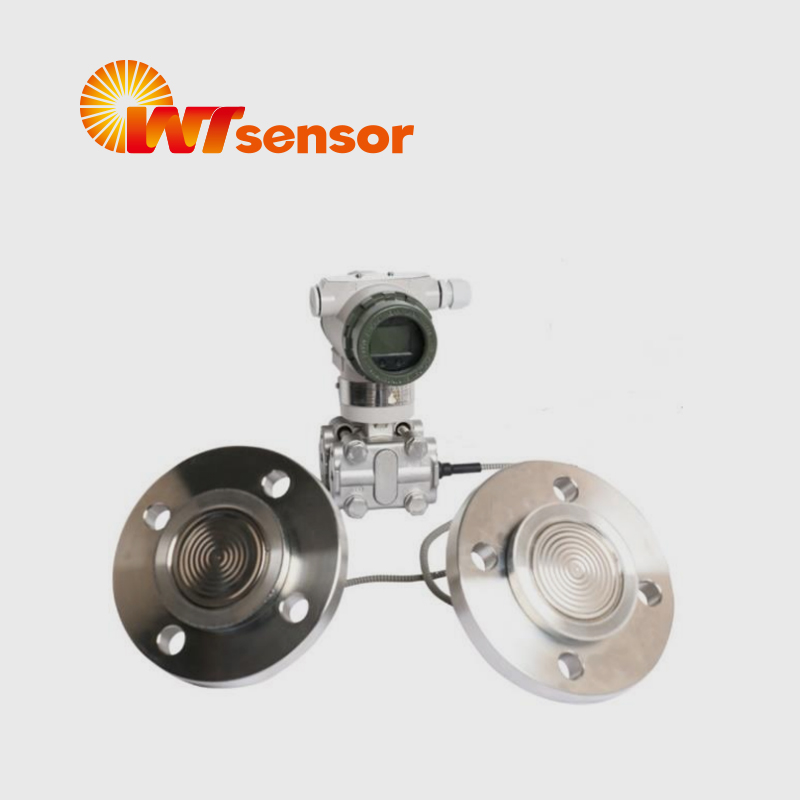

Intelligent Flange Pressure Transmitter PCM3051S-LT RD

Features

 Advanced monocrystalline silicon differential pressure sensor adopted

 Double-wire mode, 420mA analog output, HART® protocol digital communication option

  ■ Intelligent LCD gauge outfit with backlight

 With both the remote transmission and the local zero and pressure range adjustment

Complete varieties, high accuracy, good stability,

 Isolation ex-proof housing structure, strong resistance to the frequency conversion interference

High static pressure, high overload protection

 Patented double overload protection diaphragm design

 Lightning protection circuit design


Applications and industries

 Process control fields for the industries such as petroleum, chemical industry, metallurgy, electricity, food, papermaking, medicine, machine manufacturing, scientific experiment and military aviation etc.


Product Parameters

Performance parameters

Pressure range

010kPa3MPa


Pressure reference

Gauge pressure, Differential pressure


Supply & output

420mA, 420mA+HART® protocol (10.5V36V, usually 24V)


Accuracy

±0.1%FS


temperature drift

±(0.10.1×Range ratio%FS@-1070℃)


Ambient temperature

-40℃80℃; with LCD gauge outfit -20℃70℃


Medium temp.

-40120


Storage temp.

-4085


Insulation resistance

≥100MΩ/500VDC (200MΩ/250VDC)


Protection grade

IP65


Static pressure range

Zero range 0.15 range ratio% FS / 4MPa


Full range impact 0.25% FS / 4MPa


Long-term stability

±0.2%FS/2year





Structural performance

Diaphragm material

316L (316L sprayed with PTFE, Hastelloy C, tantalum


Exhaust/Drain valve

SS316for LT


O-ring

Chemigum (contact with the measurement medium)


Filling liquid

Silicon oil


Flange and clamp block

SS304T-shaped film head material is 316L


Soft capillary

SS304 For RD


Housing material

Die-casting aluminum epoxy resin coating


Electrical connection

M20×1.5 ,NPT1/2


Pressure connection

LT/RD high pressure sideDN25 PN4.0DN50 PN4.0DN80 PN1.6


RD low pressure side: DN25 PN4.0DN50 PN4.0DN80 PN1.6


LT low pressure side: M20×1.5 with welded pipe


Weight

3.5kg (not including the optional accessory)


Dimension drawing

Product number

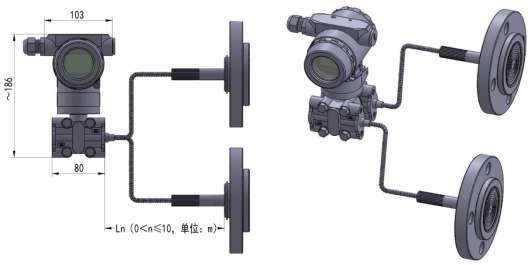

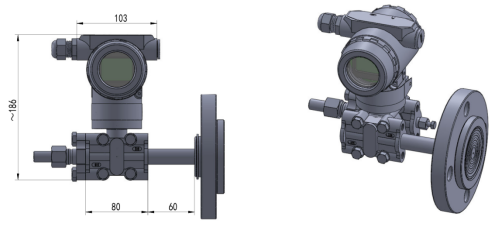

Dimension drawing

                                                                    unit:mm

PCM3051S-LT


PCM3051S-RD

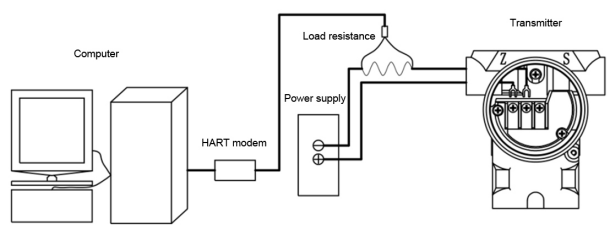

HART communication connection diagram

























Production process

PCM3051S-LT Intelligent Flange Pressure Transmitter


                                                           Testing Equipment


Φ19mm Piezoresistive Silicon Pressure Sensor PC10PΦ19mm Piezoresistive Silicon Pressure Sensor PC10P

Φ19mm Piezoresistive Silicon Pressure Sensor PC10PΦ19mm Piezoresistive Silicon Pressure Sensor PC10P

Certificate

PCM3051S-LT Intelligent Flange Pressure Transmitter
