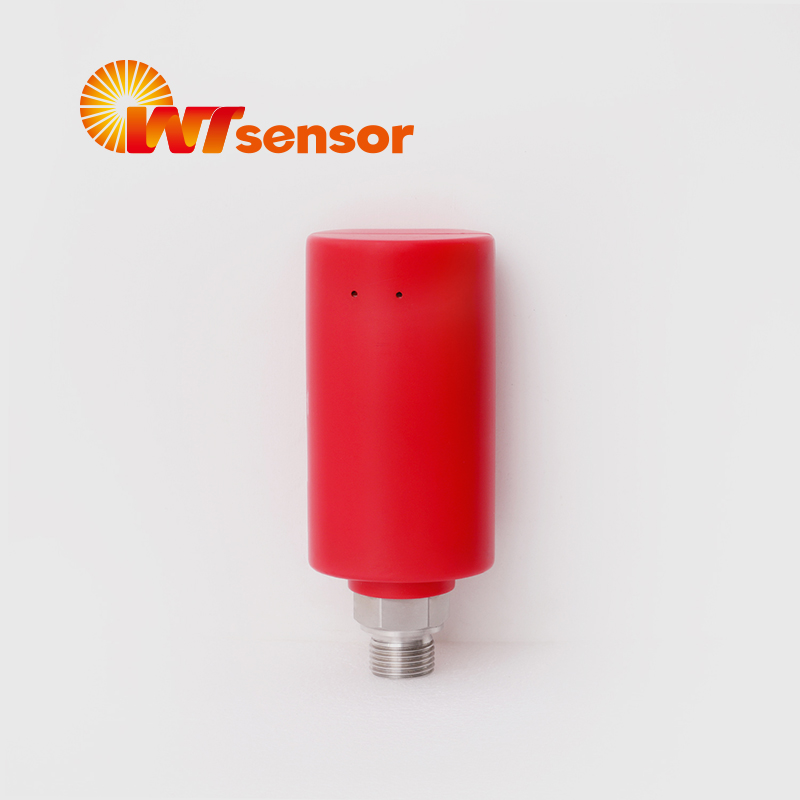

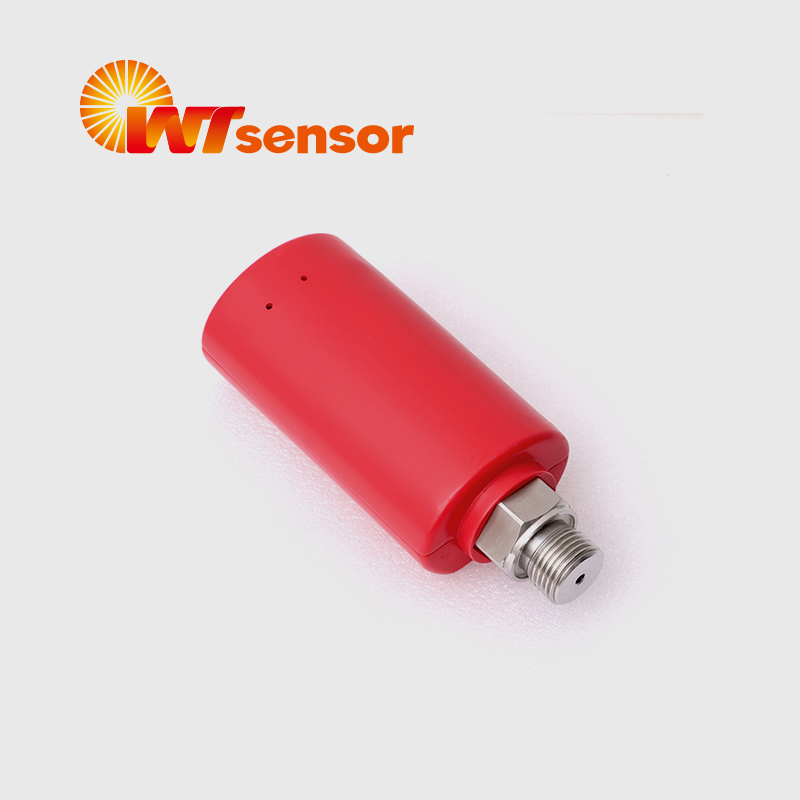

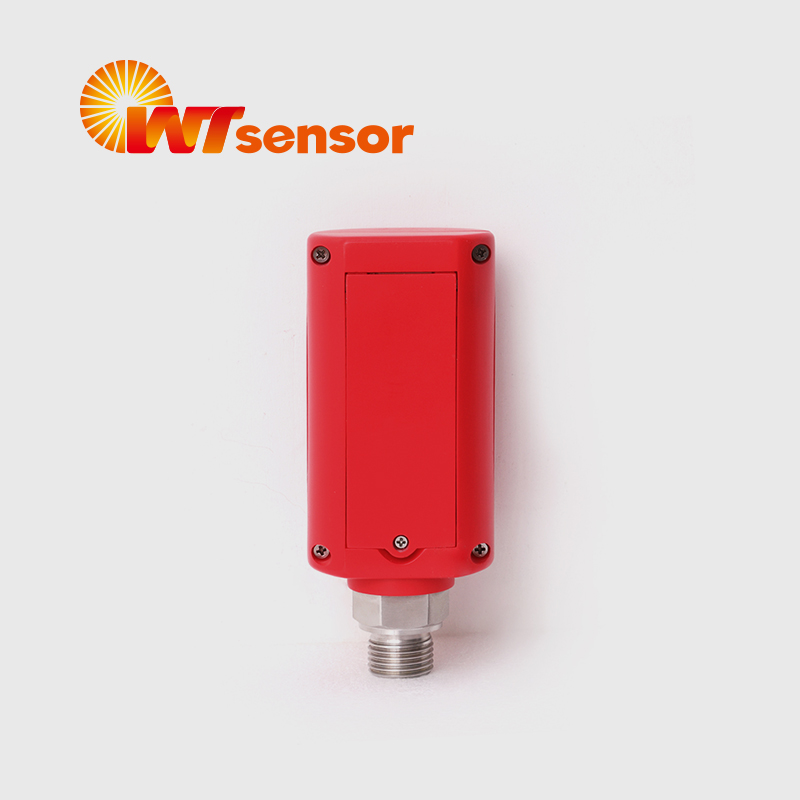

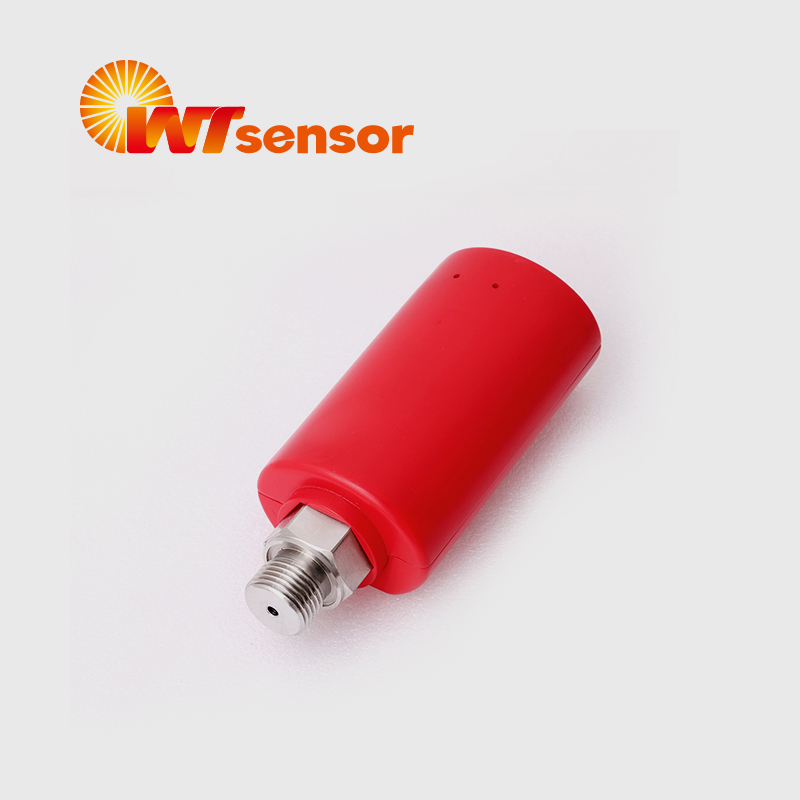

Wireless Pressure Transmitter PCM9860

Features

Network

Ultra-low power consumption, NB-IoT network: 4G network

Micro power consumption design, battery power supply

Ultra-low power consumption, integrated high energy lithium battery, life time more than 2 years

Online monitoring

PC and mobile data applications, location distribution, device status and other information are clearly visible

Professional pressure detection

Pressure sensor wide temperature compensation, 15 years of pressure sensor design and production experience

 Integrated structure

Compact structure, integrated design, convenient for field installation

Abnormal alarm

Abnormal alarm due to excessive voltage or low voltage / Abnormal alarm due to low power in the pipe.

“Wechat” alarm

Please download “Wechat” App, “Wechat” will alarm (international version will alarm by sending the email)

Remote configuration

Remote configuration of parameters: collecting frequency/transmitting frequency/alarm upper and lower limits

Twinkling light reminder

Equipment status/abnormal condition, respiratory lamp status alert

Third-party data applications

Open database, communication protocol, provide interface parsing files.

Application

Fire fighting industry




Product Parameters



Electrical performance   parameters


Pressure   range

0kPa20kPa...10MPa



Pressure   reference

Gauge   pressure, Absolute pressure, Sealed gauge pressure



Accuracy

±0.5%FS



Display

LED twinkling   light display



Network   mode

NB-IoT



Antenna

Built-in antenna



Sampling intervals

15,30,60,360,720,1440   minutes are available



Sending intervals

15,30,60,360,720,1440   minutes are available



Waking up mode

timing, setting button, alarming wake up



Configuration mode

Remote configuration



Getting information

pressure data, battery information, network   status, self-check status



The power supply

3.6V@13Ah



Working   temp.

-2070



Storage   temp.

-4085



Vibration

≤3g/10Hz.....150H



Protection class

IP65



Diaphragm

stainless steel 316L



Housing material

PC



Installation mode

Vertical or horizontal installation
