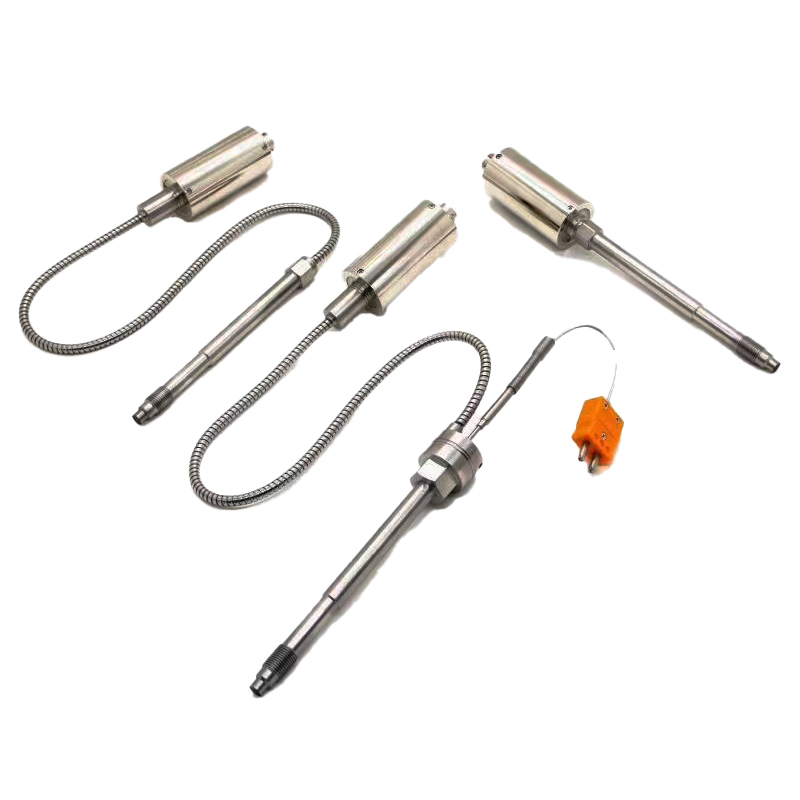

Series Economical Melt Pressure Transducer PCMPT01&PCMPT02&PCMPT03

Features

 Signal output:420mA,010V,05V

Accuracy grade:±1.0%F.S

Special diaphragm coating

IP65 ingress protection

 80% internal calibration



Applications

Injection molding industry

 Chemical fiber industry


Product overview

PCMPT01&PCMPT02&PCMPT03 series economical melt pressure transmitter series is specially designed for pressure measurement at high temperature in the injection molding industry, special diaphragm and highly anti-abrasive coating of which enable it to work normally at high temperature up to 320℃.This series is installed in the manner of standard threaded connection and has many advantages like high stability and long service life.




Product Parameters

Performance parameters

Input Voltage

24VDC(1236VDC)


Output

420mA,010V,05V


Accuracy Grade

±1.0%F.S


Pressure Range

Refer to below pressure range form


Pressure Unit

MPa (default), psi, bar


Overload Capacity

1.5 times rated pressure


Zero Temp Drift

0.005MPa/℃


Electrical Environmental Temp

-2085℃


Bridge Resistance

350Ω


Diaphragm Materia

15-5PH


Diaphragm Temp

320℃


E-Connection

5-pin standard aviation connector


Mounting Torque

40N.m Max


Process Connection

M14×1.5


Protection Level

IP65


Temperature Measurement type

E, J, K type or Pt100



Production process

PC90D Monocrystalline Silicon  Differential Pressure SensorPC90D Monocrystalline Silicon  Differential Pressure Sensor

PC90D Monocrystalline Silicon  Differential Pressure SensorPC90D Monocrystalline Silicon  Differential Pressure Sensor

PC90D Monocrystalline Silicon  Differential Pressure SensorPC90D Monocrystalline Silicon  Differential Pressure Sensor


                                                     Testing Equipment


BellowsBellows

BellowsBellows

Certificate

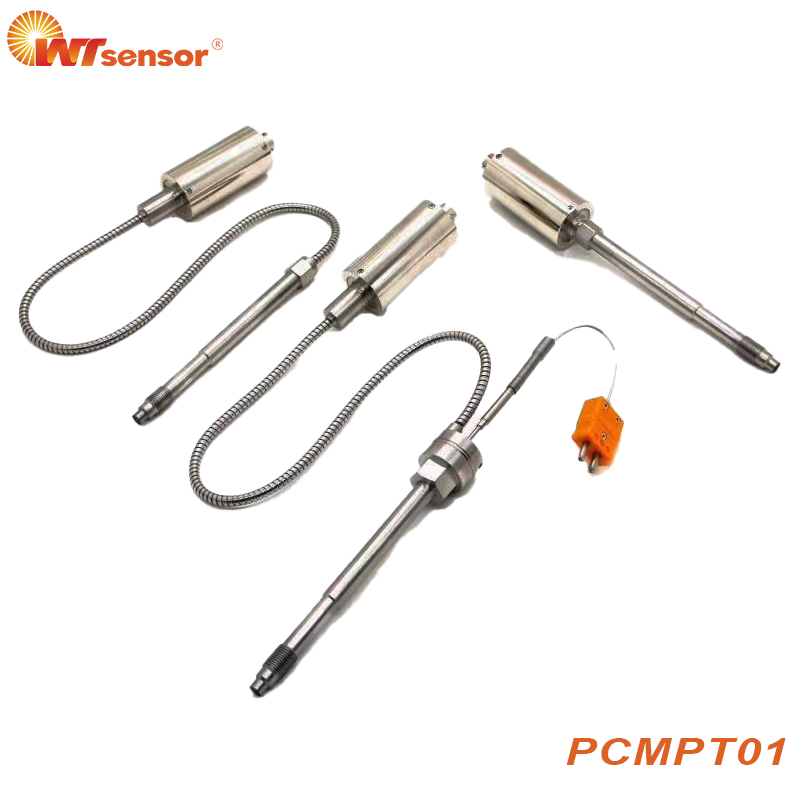

PCMPT01
