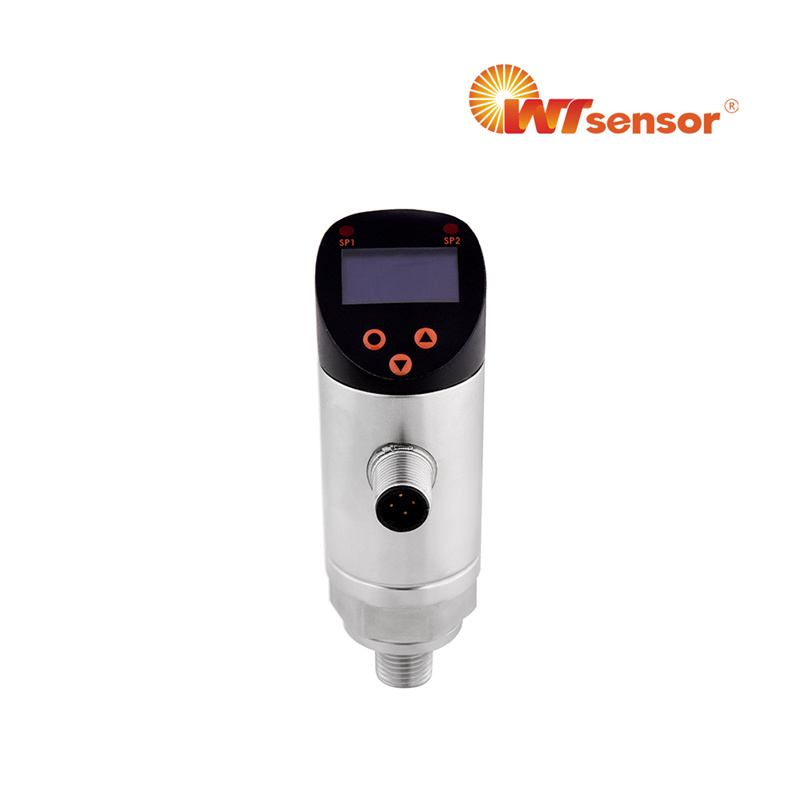

PCM710 Intelligent Pressure Switch
Features
■ High precision
■ Adjustable response time
■ NPN, PNP compatible, free switching
■ Button operation, shortcut button for one-click zero calibration, fast unit switching
■ OLED shows the current pressure
■ LED for node action, easy to observe
Applications
■ Hydropower
■ Chemical industry
■ City water supply
■ Scientific research
■ Accurate measurement and control of pressure of fluids
PCM710 piezoresistive silicon NPN PNP digital pressure switch, 4-20mA 0.2% accuracy electronic pressure switch
PCM710 piezoresistive silicon intelligent pressure switch with LED display is NPN PNP compatible and free switching. Accuracy is 0.2% or 0.5%. Output 4-20mA used in hydropower, tap water, petroleum, chemical, mechanical, hydraulic industries for measurement, display and control of pressure of fluids
Product Parameters
Performance parameters | |
Pressure range | 0～10kPa…60MPa |
Overload capability | 150～300%FS |
Accuracy | ±0.2%FS, ±0.5%FS |
Power supply | 12～30V, 24V recommended |
Display mode | OLED display of 4 digits |
Output mode | 2-way switch quantity, NPN and PNP compatible + 4～20mA |
Load capacity | ≤24V 1.2A |
Power consumption | ≤15mA |
Operating temp. | -25℃～80℃ |
Storage temp. | -40℃～100℃ |
Response time | ≤20ms |
Insulation | 100MΩ/250VDC |
Protection grade | IP65 |
Structural performance parameters | |
Housing material | 304 |
Medium compatibility | Liquid contacting diaphragm 316L, pressure port 304 |
Company advantage
Mass production
We have one production center in Nanjing and one production center in Anshan with 20,000㎡plant and 170 units of production equipments. The main annual capacity of sensors is about 2,000,000 pieces.
Imported equipments
We imported 20 sets of pressure controller and 150 units of testing ovens to our production line.
Informatization management
We have the information management system of CRM, PLM, ERP, MES and DINGDING etc.
Comprehensive testing
We have our own lab and testing equipment such as lightning stroke, surging, static electricity, vibration, high-low temperature impact test and helium mass-spectrum leak detection.
