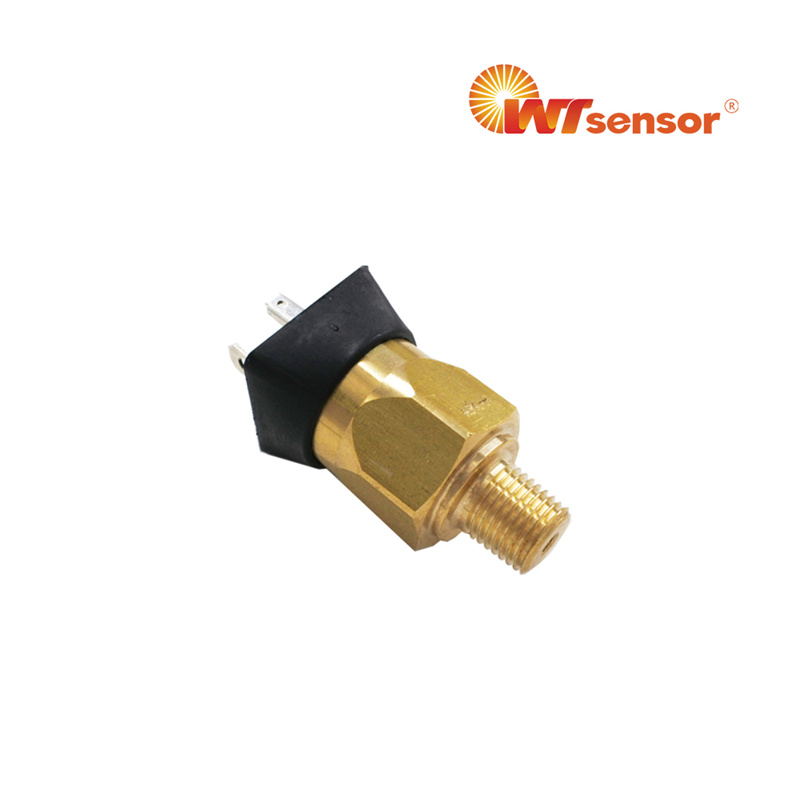

APA/APF Adjustable Low Pressure Switch
Adjustment range: 3~150PSI
Accuracy: ±2% of full set point range at 21℃
Maximum overpressure: 350PSI (24Bar)
Protection: IP00 (exposed terminal), IP65 (DIN HC), IP69 (flying leads, M12, Deutsch integral)
Diaphragm: Buna-N (optional EPDM, KAPTON ® or VITON ® )
Housing: brass (optional electroless nickel plated steel or 316 stainless steel)
Mechanical life: 1,000,000 cycles
Applications
Industrial and mobile hydraulic field as well as pneumatic, water process, refrigerant, air conditioning, beverage and other associated industries.
adjustable low pressure switch with Buna-N diaphragm,snap action brass housing 316L mechanical pressure switch
APA APF low cost adjustable mechanical low pressure switch is China factory made with ±2% repeatability. Range 0.2-1bar with spade, M12, flying leads, Deutsch connector of IP69. Diaphragm material is Buna-N, VITON, EPDM, KAPTON and housing is Brass, 316L or electroless nickel plated steel.
Product Parameters
Performance Parameters |
Model | Adjustment Range | Avg. Differential | Model | Adjustment Range | Avg. Differential | |||||||
PSI Bar | PSI Bar | PSI Bar | PSI Bar | |||||||||
1 | 3 - 20 | 0.2 - 1.4 | 2 - 5 | 0.13 -0.4 | 2 | 15 - 75 | 1.03 - 6 | 4 - 7 | 0.27 -0.5 | |||
1A | 5 - 30 | 0.3 - 2.1 | 3 - 7 | 0.21 -0.5 | 3 | 50 -150 | 3.5 - 10 | 7 -15 | 0.5 - 1.0 | |||
ELECTRICAL: Standard:5A,125V/250VAC-U.L.Recognized 5A,12/24VDC- U.L. Recognized Option -7: 0.2A,60VDC- U.L. Recognized Gold contacts may be required for less than MANUFACTURER’S OTHER RATING: 5A@40VDC WETTED MATERIAL: Diaphragm: Buna-N (standard) (optional EPDM, KAPTON®, VITON® ) Housing: Brass (standard) (optional: 316 Stainless Steel or | PROTECTION: Exposed Terminals -IP00 DIN HC-IP65 Flying Leads, M12, Deutsch Integral - IP69
REPEATABILITY: ± 2% of full set point range at 21°C SWITCH TYPE: Snap Action MECHANICAL LIFE: 1,000,000 cycles | TEMPERATURE RANGE: BUNA-N: -26℃~110℃ (® Registered Trademark of DuPont) MAXIMUM OVERPRESSURE: 350PSI(24Bar)
WEIGHT: 0.07 kg | ||||||||||
