  • Adjustable High Pressure Switch EPA/EPF

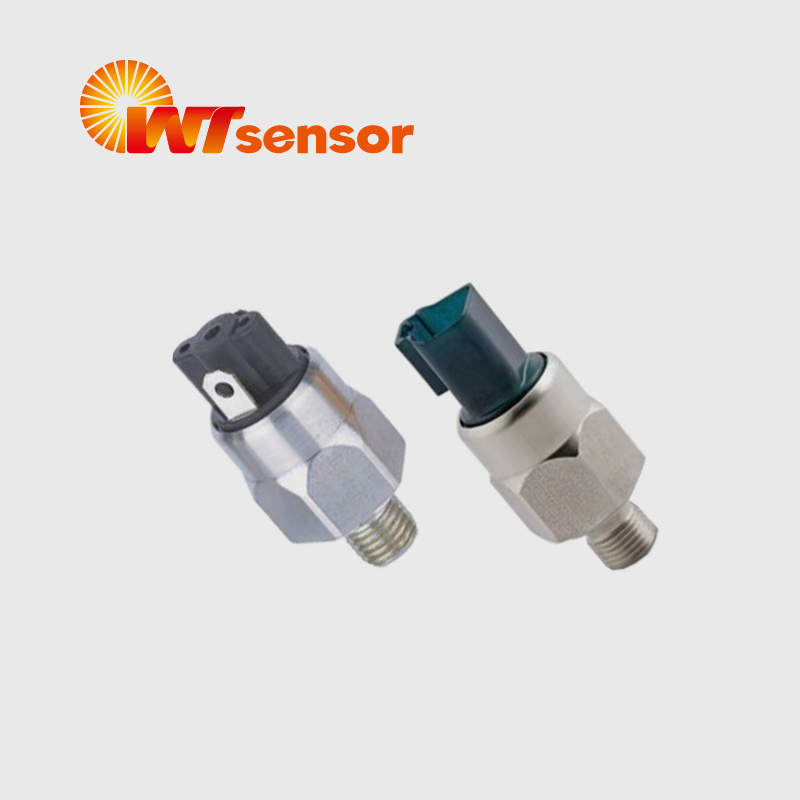

Adjustable High Pressure Switch EPA/EPF

Adjustment range: 1.5~6000PSI

Maximum overpressure: 9000PSI

Protection: IP00 (exposed terminal), IP69 (flying leads, Deutsch integral)

Diaphragm: Buna-N (optional EPDM, KAPTON ®, VITON ® or low temperature nitrile)

Housing: galvanized steel (optional electroless nickel plated steel or 316 stainless steel)

Mechanical life: 1,000,000 cycles


Applications

Industrial and mobile hydraulic field as well as pneumatic, water process, refrigerant, air conditioning, beverage and other associated industries.


factory set creep action adjustable high pressure switch, Buna-N ±3% repeatability mechanical pressure switch


EPA China factory made adjustable mechanical high pressure switch is creep action type of ±3% repeatability with flying lead, Deutsch, spade connector of IP69. The diaphragm material is Buna-N, EPDM, KAPTON, VITON, applicable to hydraulic, pneumatic, water process, refrigerant, air conditioning, etc

Product Parameters

Performance Parameters

Model

Adjustment Range

Avg. Differential

Model

Adjustment Range

Avg. Differential

PSI           Bar


PSI           Bar


1

1.5-30

0.10-2.0

Less than 10% of
  Actuation Point

3

300-2500

20-170

Less than 10% of
  Actuation Point

1A

14.5-200

1.0-14

4

3000-6000

207-414

2

125-600

8-40

5

500-3500

35-240


ELECTRICAL:

100VA/42VDC

Gold contacts may be required for   less than 12 VDC and 20 milliamp

WETTED MATERIAL:

Diaphragm:   Buna-N (standard)

(optional   EPDM, KAPTON®, VITON®
  Low Temperature Nitrile)

Housing:   Zinc-Nickel Plated Steel
  (optional Steel - Electroless Nickel Plated, 316 Stainless Steel)

PROTECTION:

Exposed   Terminals - IP00

Flying   Leads & Deutsch Integral - IP69



REPEATABILITY:

± 3% of full set   point range at 21°C
  Ambient Temperature

SWITCH TYPE:

Creep   Action

MECHANICAL LIFE:

1,000,000   cycles

TEMPERATURE RANGE:

BUNA-N:   -26~110
  EPDM: -23
~121
  KAPTON®: -40
~110

VITON®:   -18~150

(® Registered   Trademark of DuPont)

Low   Temp Nitrile: -40~110

MAXIMUM OVERPRESSURE:

9000 PSI (620 Bar)

WEIGHT:

0.07   kg
