  • Adjustable High Pressure Switch BPA/BPF

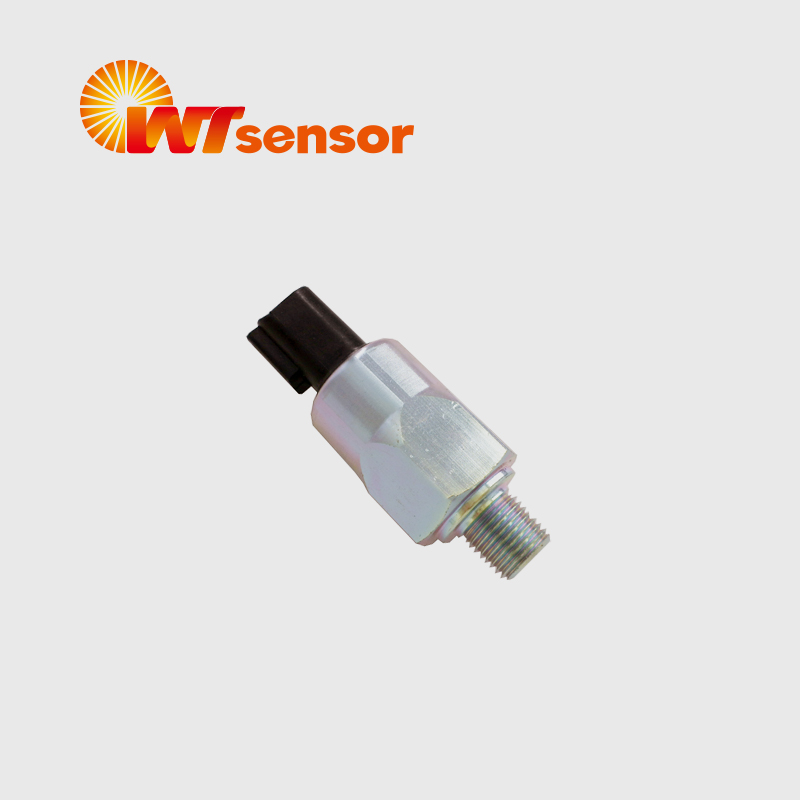

Adjustable High Pressure Switch BPA/BPF

Adjustment range: 5~6000PSI

Maximum overpressure: 9000PSI static pressure; 7500PSI dynamic pressure

Protection: IP00 (exposed terminal), IP65 (DIN HC), IP69 (flying leads, M12, Deutsch integral)

Diaphragm: Buna-N (optional EPDM, KAPTON ®, VITON ® or low temperature nitrile)

Housing: galvanized steel (optional electroless nickel plated steel or 316 stainless steel)

Mechanical life: 1,000,000 cycles


Applications

Industrial and mobile hydraulic field as well as pneumatic, water process, refrigerant, air conditioning, beverage and other associated industries.


factory set adjustable high pressure switch, 2% repeatability Buna-N diaphragm OEM mechanical pressure switch


BPA China factory set mechanical adjustable high pressure switch is snap action type of ±2% repeatability with spade, flying lead, M12, Deutsch connector. Range 0.35-414 bar, applicable to industrial and mobile hydraulic field, pneumatic, water process, refrigerant, air conditioning, beverage fields

Product Parameters

Performance Parameters

 Model

Adjustment   Range

Avg.   Differential

 Model

Adjustment   Range

Avg.   Differential

PSI         Bar

PSI       Bar

PSI         Bar

PSI       Bar

1

5-85

0.35-6

1.0-10

0.07-0.7

3

500-2500

35-170

70-300

5-20

1A

65-300

4-20

8-30

0.55-2.1

4

1000-6000

69-414

150-600

10-41

2

125-600

8-40

20-80

1.3-5.5

5

500-3500

35-240

75-300

5-24


ELECTRICAL:

Standard:5A,125V/250VAC-U.L.Recognized

         5A,12/24VDC- U.L. Recognized

Option   -7: 0.2A, 60VDC- U.L. Recognized

Gold   contacts may be required for less than
  12 VDC and 20 milliamps





WETTED MATERIAL:

Diaphragm:   Buna-N (Standard)
  (optional EPDM, KAPTON® ,VITON®, Low Temp Nitrile)
  Housing: Zinc-Nickel Plated Steel
  (optional Steel - Electroless Nickel and 316 Stainless Steel)

MANUFACTURER’S OTHER  RATING:

5A@40VDC

PROTECTION:

Exposed   Terminals -IP00

DIN   HC-IP65

Flying   Leads, M12, Deutsch Integral - IP69

REPEATABILITY:

± 2% of full set   point range at 21°C
  Ambient Temperature

SWITCH TYPE:

Snap   Action

MECHANICAL LIFE:

1,000,000   cycles

TEMPERATURE RANGE:

BUNA-N:   -26~110
  EPDM: -23
~121
  KAPTON®: -40
~110
  VITON®: -18
~150

(® Registered   Trademark of DuPont)

Low   Temp Nitrile: -40~110



MAXIMUM OVERPRESSURE:

9000   PSI (620 Bar) - Static
  7500 PSI (517 Bar) - Dynamic

WEIGHT:

Approx.   0.09 kg


Production process

BPA/BPF Adjustable High Pressure Switch


                                                             Testing Equipment

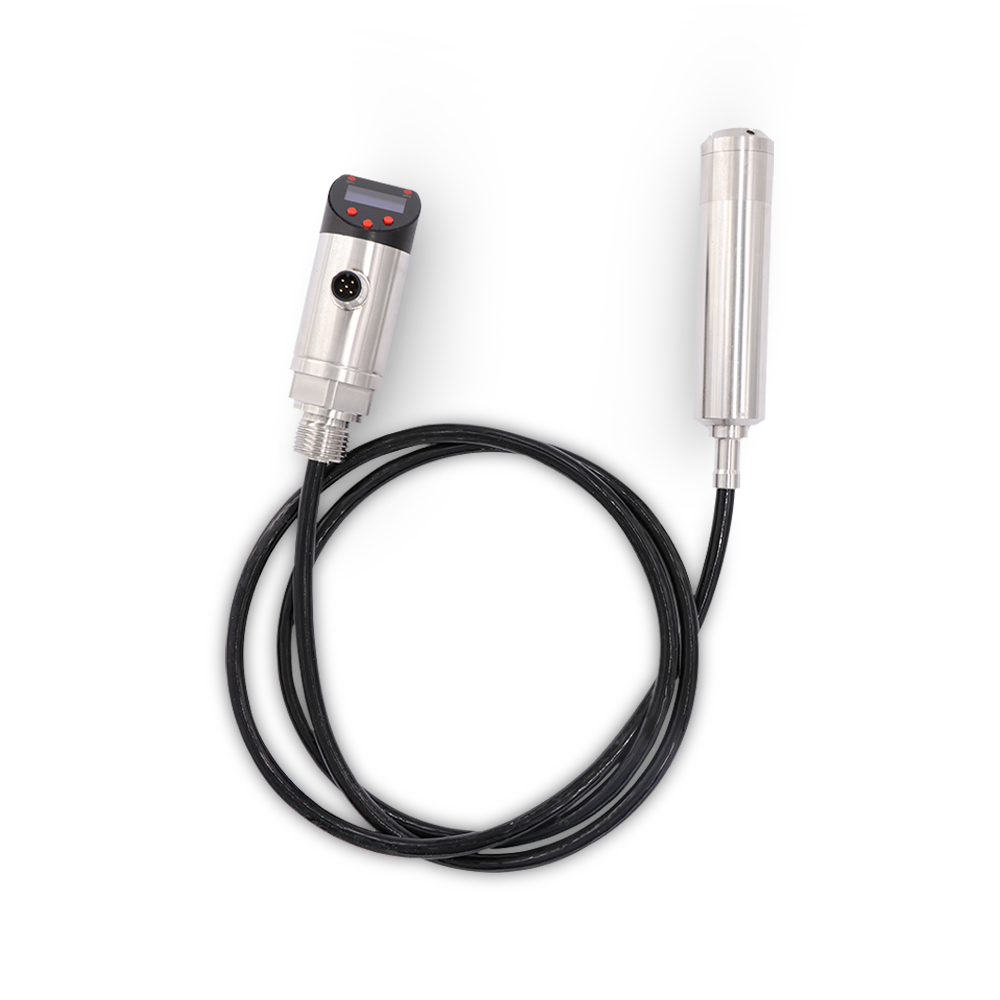

Intelligent Pressure Switch digital pressure switch PCM710Intelligent Pressure Switch digital pressure switch PCM710
