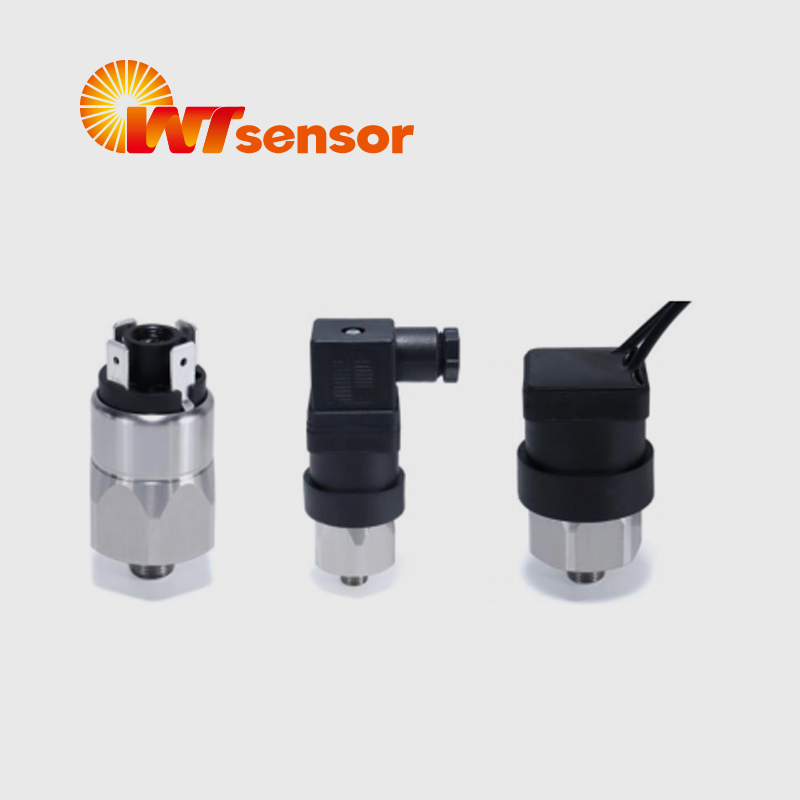

High Sensitivity High Pressure Switches PCS102
Features
■ 1 million mechanical life and high reliability
■ Short action time and high sensitivity
■ High pressure resistance and high safety
■ With metal shell design, the switch is more resistant to vibration and external impact
■ Pressure value can be adjusted
■ More shell types/pressure range/thread types/diaphragm types can be selected, which is suitable for more use occasions and has high adaptability
Applications
■ Construction machinery,such as excavators
■ Forklifttruck (oil burning type with hydraulic system)
■ Hydraulic system,such as hydraulic lubrication pump and hydraulic pump station
Product Parameters
Performance Parameters |
Model | Adjustment Range | Avg. Differential
| ||
PSI Bar | PSI Bar | |||
1 | 43.5-87 | 3- 6 | 4.5 - 9 | 0.3 -0.6 |
2 | 43.5-145 | 3-10 | 4.5-14.5 | 0.3-1 |
3 | 72.5-290 | 5 -20 | 7 - 29 | 0.7 -2 |
4 | 200-725 | 15-50 | 22-72 | 1.5-5 |
Electrical | Standard:4A,125V/250VAC 4A,12/42VDC Gold contacts may be required for less than 12 VDC and 20 milliamps | |||
Wetted material | Diaphragm: Buna-N (standard) (optional EPDM,FKM, VITON® HNBR) Housing: Zinc-plated steel, 304 Stainless steel,316L Stainless steel | |||
Protection | Exposed Terminals -IP00 DIN 43650A-IP65 Flying Leads, M12, Deutsch Integral - IP67 | |||
Repeatability | ± 2% of full set point range at 21°C Ambient Temperature | |||
Switch type | Snap Action | |||
Mechanical life | 2,000,000 cycles | |||
Temperature range | BUNA-N: -30℃~110℃ EPDM: -40-130℃ FKM: -10-120℃ VITON®: -40-130℃ HNBR: -40℃~130℃ | |||
Maximum Overload pressure | 6500PSI(450Bar) | |||
Weight | 0.14 kg | |||

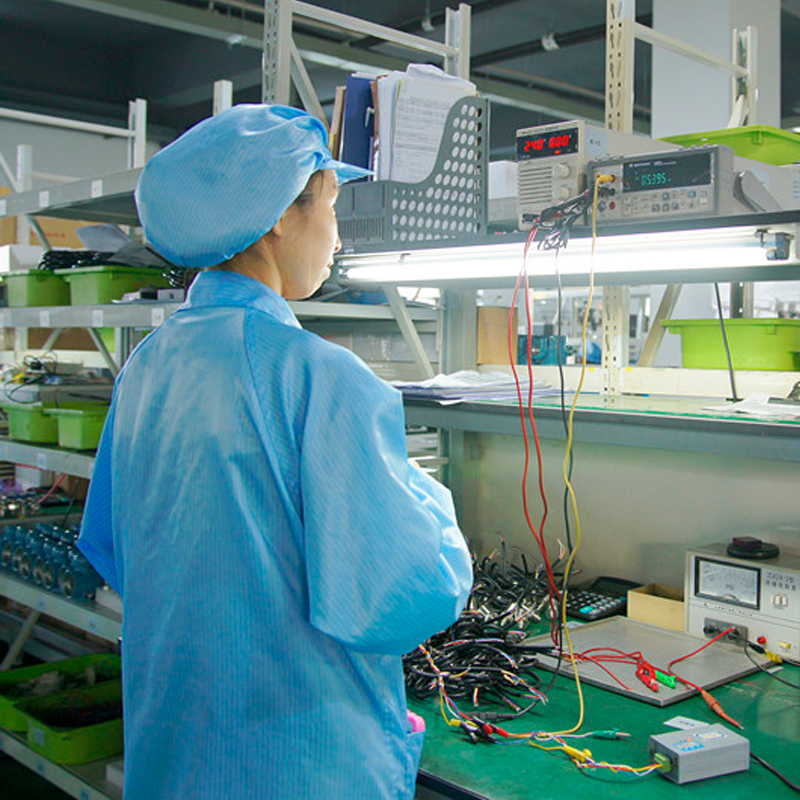

Production process
Testing Equipment
Certificate
Company profile
Nanjing Wotian Technology Co., Ltd. was established in 2005. It is an outstanding top sensor mkanufacturing enterprise in Jiangning District. The company was rated as Nanjing Engineering Technology Research Center and Nanjing. Municipal Engineering Research Center, Nanjing Enterprise Technology Center, Nanjing Postdoctoral Innovation Demonstration Base; is the unit that formulated the national standards for "Silicon Piezoresistive Pressure Sensitive Chips" and "Silicone Pressure Sensors". It is the leading domestic manufacturer of pressure sensors, with core technology of diffused silicon pressure sensor pressure transmitter, level sensor and temperature sensor and existing staff 305. The annual production of pressure sensors is more than 2 million. The products have been exported to more than 70 countries and regions. Nanjing Wotian was awarded the honorary title of "Sensor Application Program Demonstration Enterprise" by the Ministry of Industry and Information Technology in 2019. "Creating value for customers" is the goal that enterprises always pursue. As leading manufacturer in the domestic pressure sensor industry, the company will revitalize China's pressure sensor business as its own responsibility, work diligently, step by step, strive to make pressure sensors better, and provide customers with cost-effective sensors. Nanjing Wotian Technology Co., Ltd. has passed ISO9001-2015 quality management system certification and TS16949 certification for the automotive industry.
Company advantage
Mass production

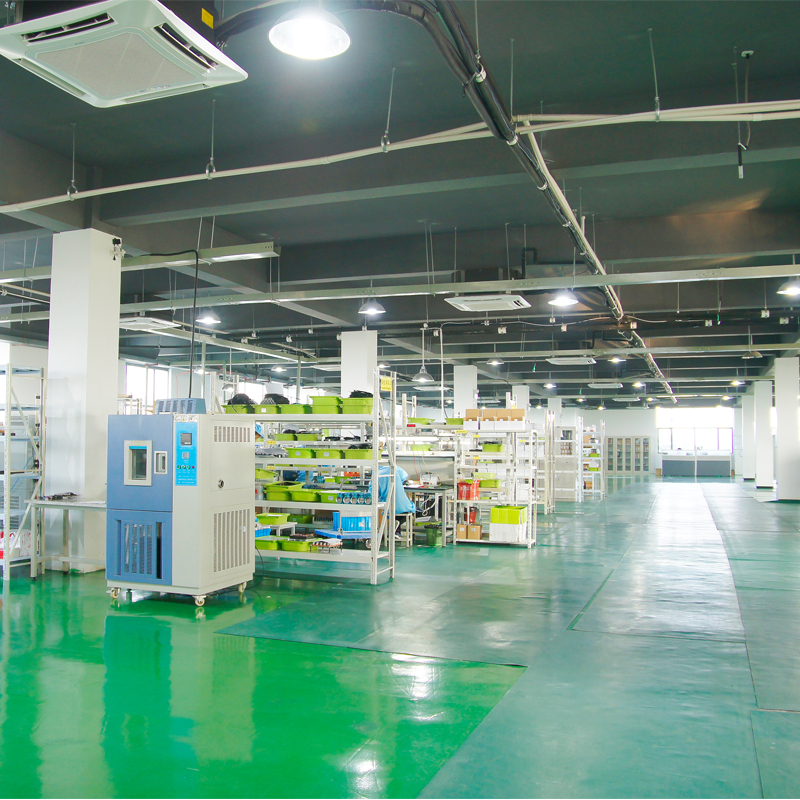

We have one production center in Nanjing and one production center in Anshan with 20,000㎡plant and 170 units of production equipments. The main annual capacity of sensors is about 2,000,000 pieces.
Imported equipments
We imported 20 sets of pressure controller and 150 units of testing ovens to our production line.
Informatization management
We have the information management system of CRM, PLM, ERP, MES and DINGDING etc.
Comprehensive testing
We have our own lab and testing equipment such as lightning stroke, surging, static electricity, vibration, high-low temperature impact test and helium mass-spectrum leak detection.
