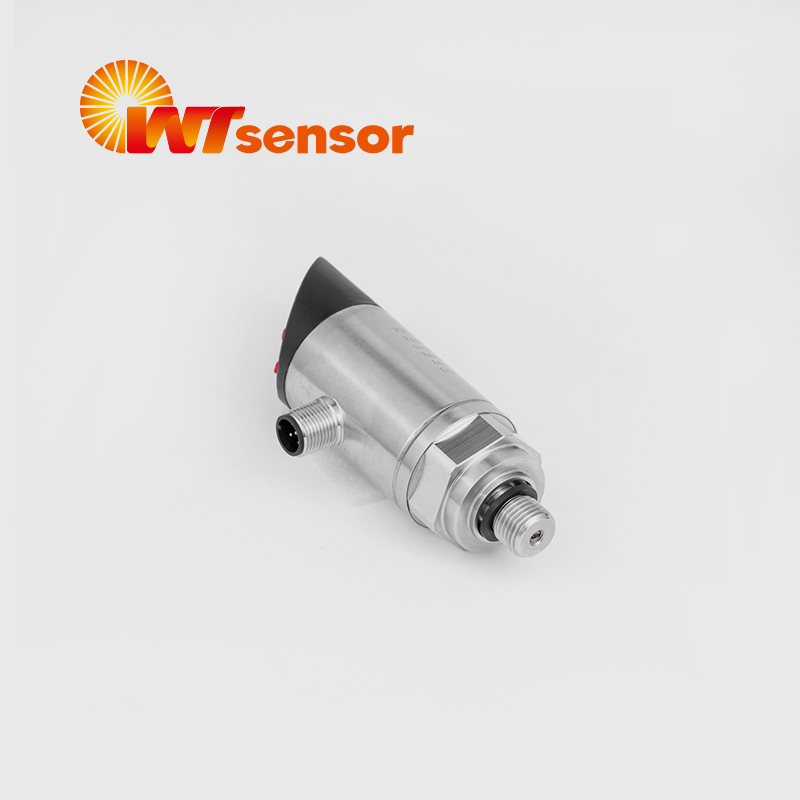

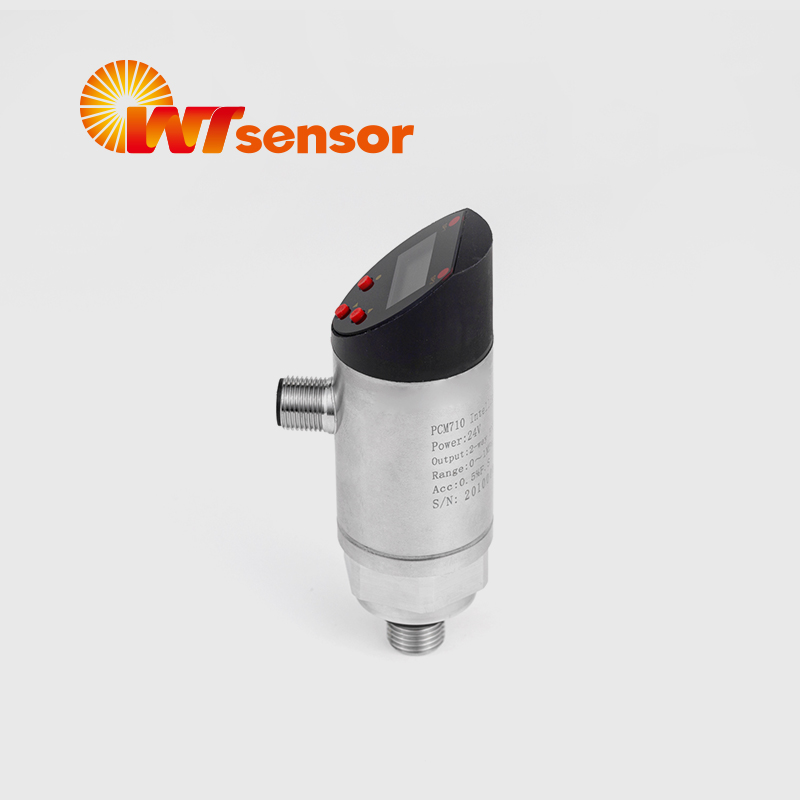

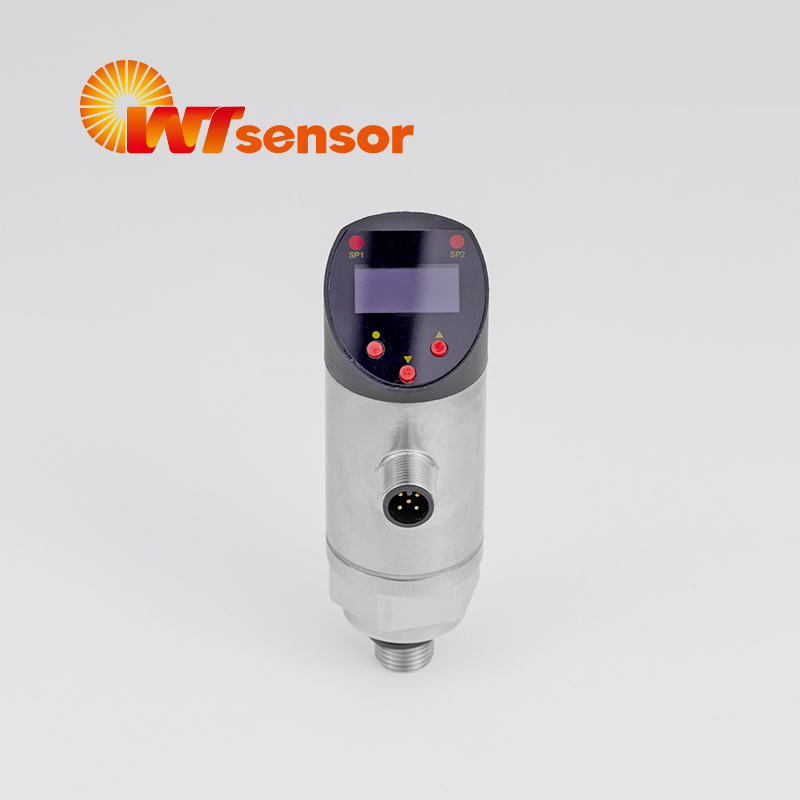

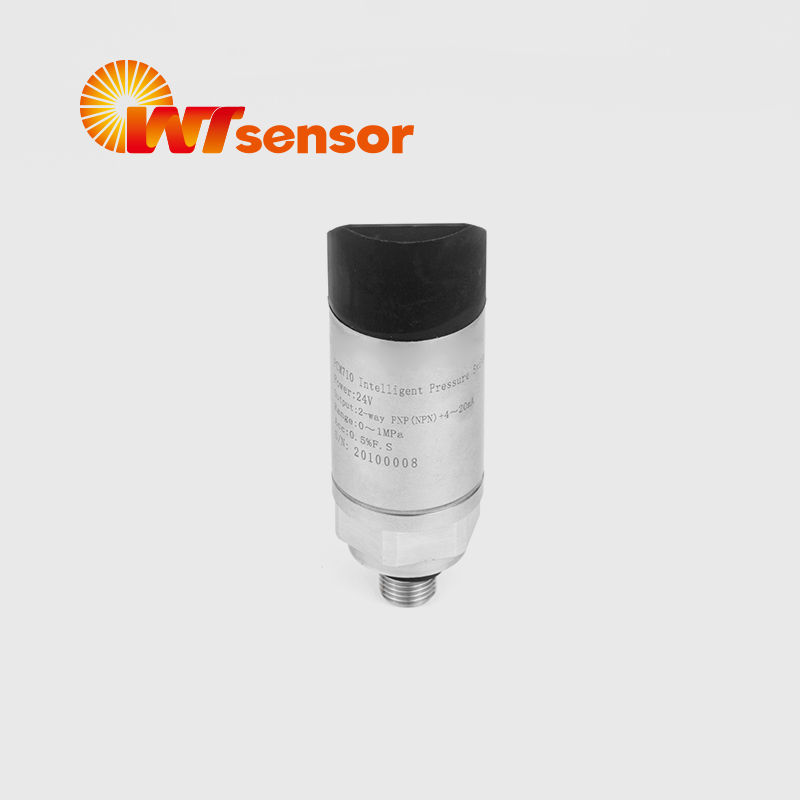

Intelligent Pressure Switch digital pressure switch PCM710

Features

High precision

Adjustable response time

NPN, PNP compatible, free switching

Button operation, shortcut button for one-click zero calibration, fast unit switching

OLED shows the current pressure

LED for node action, easy to observe



Applications and industries

Hydropower

Chemical industry

City water supply

Scientific research

Accurate measurement and fluids pressure control

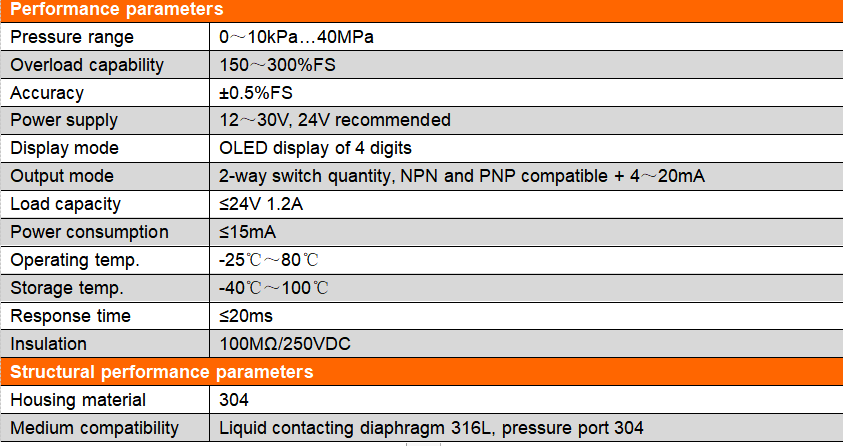

Product Parameters

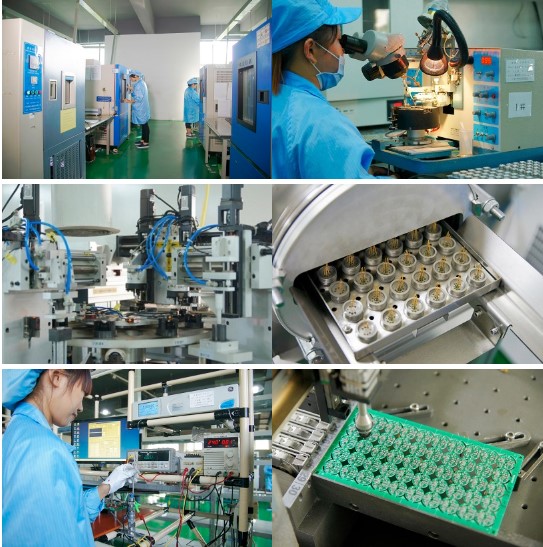

Production process

PCM710 Intelligent Pressure Switch


                                                   Testing Equipment


Intelligent Pressure Switch digital pressure switch PCM710Intelligent Pressure Switch digital pressure switch PCM710

Intelligent Pressure Switch digital pressure switch PCM710Intelligent Pressure Switch digital pressure switch PCM710

Certificate

PCM710 Intelligent Pressure Switch
