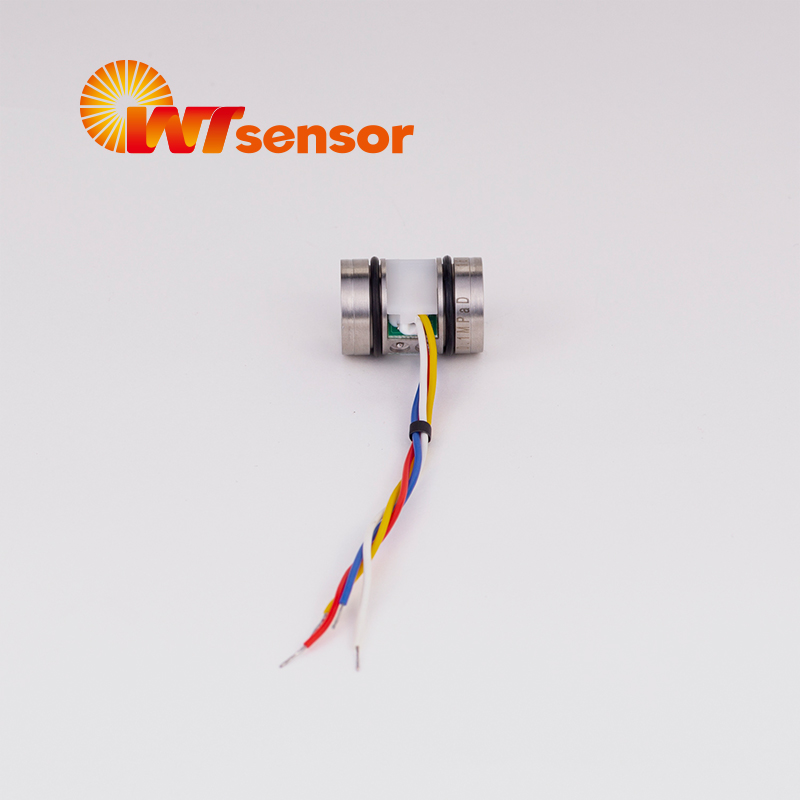

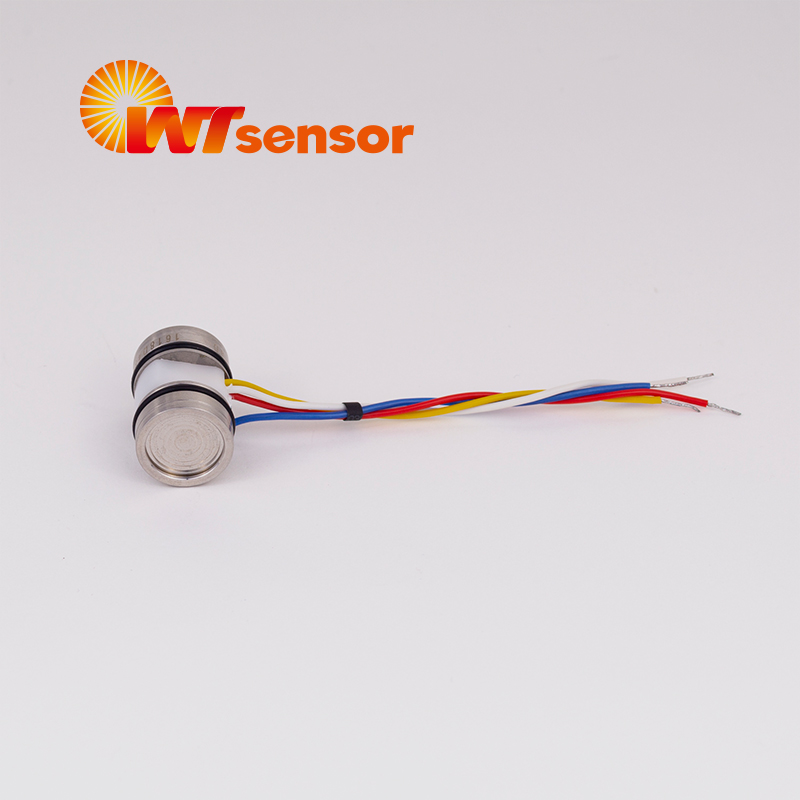

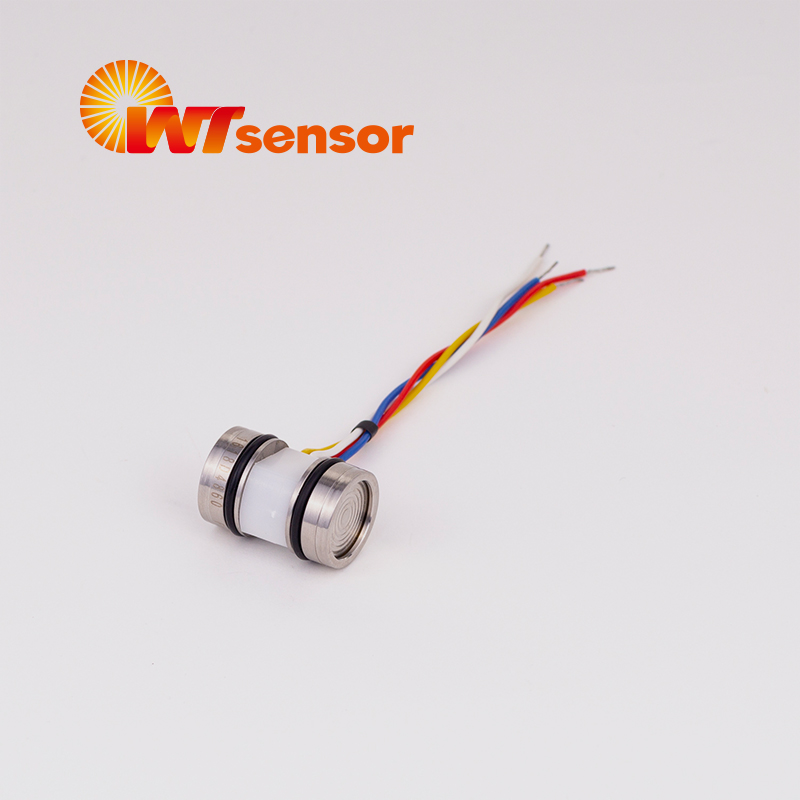

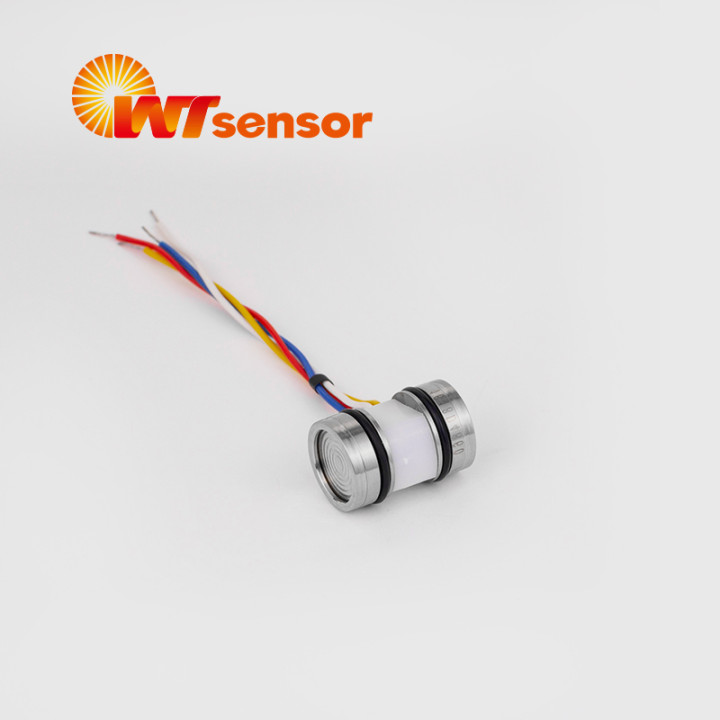

Differential Pressure Sensor Φ19×27.6mm PC10D

Features

Piezoresistive silicon chip employed

Perfect long term stability

0.25% accuracy

Sensor diameter: 19mm



PC10D(WTD19) differential pressure sensor,small size differential sensor,silicon differential pressure sensor

Nanjing Wotian is the Chinese manufacturer that produce the differential pressure sensor with oil filling and CE approved.

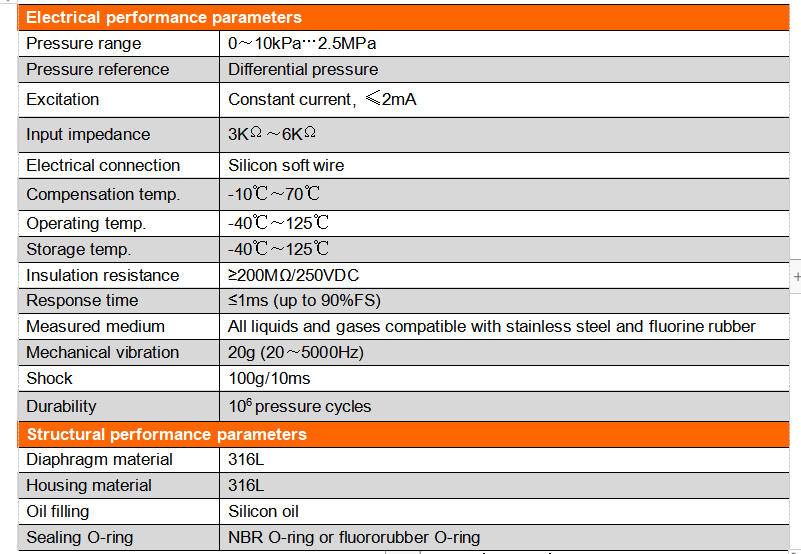

Product Parameters

Φ19×27.6mm Differential Pressure Sensor PC10D


Pressure range

Pressure range

10kPa, 35kPa, 70kPa, 100kPa, 250kPa, 400kPa, 600kPa, 1MPa, 1.6MPa, 2.5MPa (bar and psi unit available)

Pressure reference

Differential pressure

Overpressure

Range

Positive Overpressure

Negative Overpressure

35kPa

70kPa

35kPa

70kPa

150kPa

70kPa

100kPa

200kPa

100kPa

250kPa

500kPa

250kPa

400kPa

800kPa

400kPa

600kPa

1200kPa

600kPa

1MPa

2MPa

1MPa

1.6MPa

3.2MPa

1MPa

2.5MPa

5MPa

1MPa

Output signal

Zero output

±2mV

Span output

≥40mV (≤35kPa) | ≥60mV (Other ranges)

Specification

Accuracy (linearity, repeatability and hysteresis)

±0.25%F.S. (Typical)

Excitation

1.5mA (Typical)

Compensated temp.

0-60 (≤35kPa) | -10-70 (Other ranges)

Operating temp.

-40-125

Storage temp.

-40-125

Zero temp. coefficient

0.02%F.S./ (≥100kPa) | 0.04%F.S./(<100kPa)

Span temp. coefficient

0.02%F.S./(≥100kPa) | 0.04%F.S./(<100kPa)

Insulation resistance

200Mohm/250VDC

Input impedance

2kΩ5kΩ

Long term stability

≤0.3%F.S.S/year

Vibration

20g (20-5000HZ)

Housing and diaphragm

Stainless steel 316L

Oil filling

Silicon oil (Typical)

Wire connection

4 wire (typical) | 5 wire (available)    39×φ0.015, Silicon shielded, 200 bearing

Weight

40g(approx)

Wire connection



Wire

Connection

red

excitation+

blue

excitation-

yellow

output+

white

output-





Φ19×27.6mm Differential Pressure Sensor PC10DIn mm
