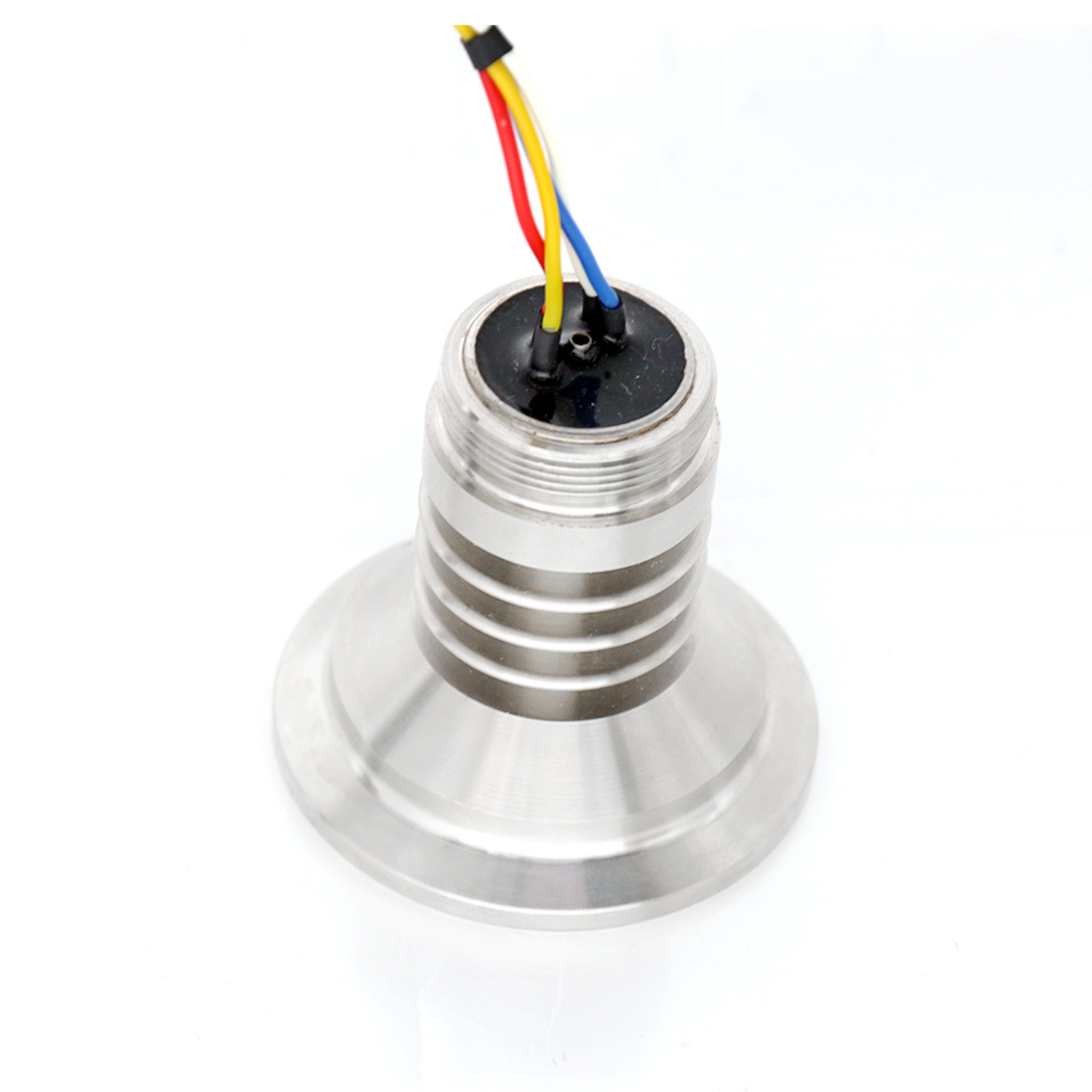

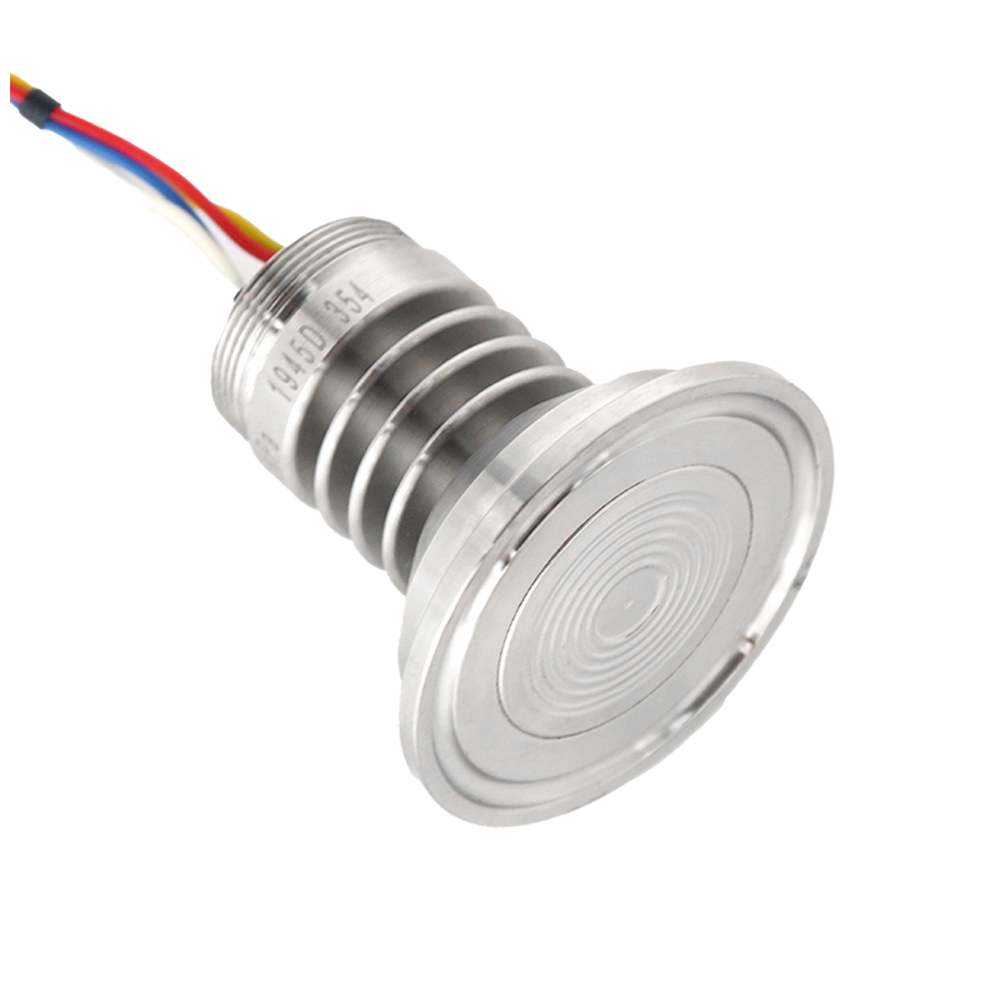

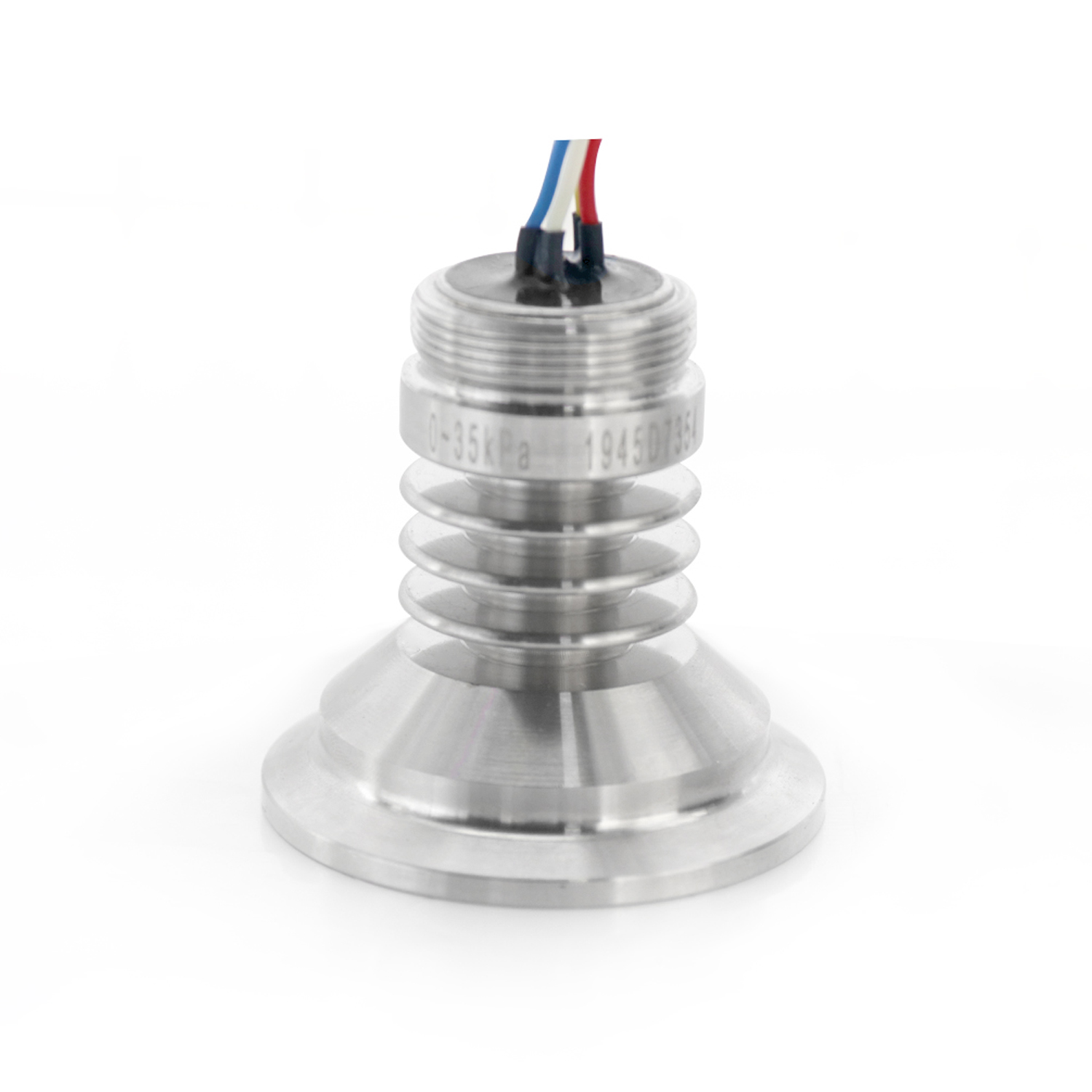

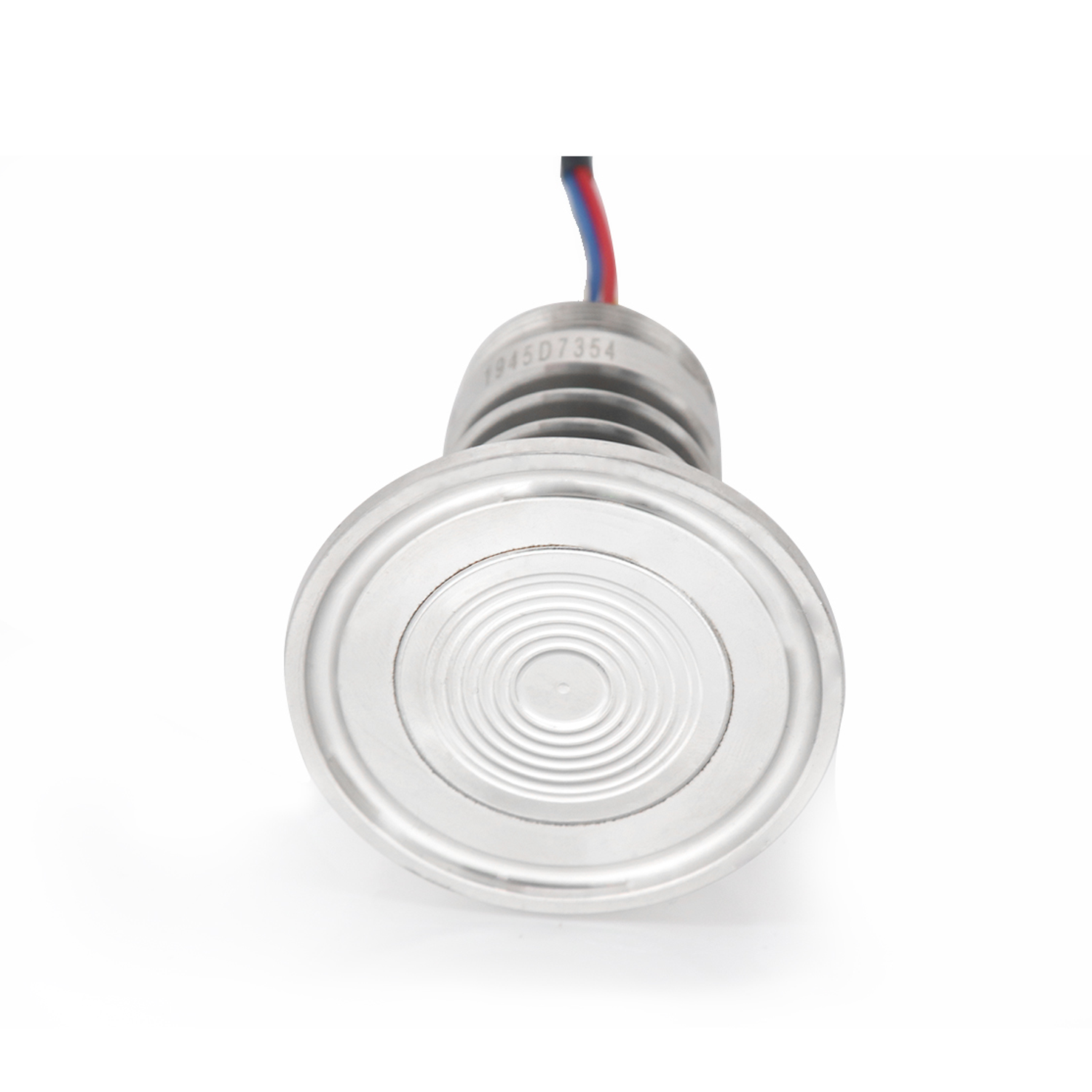

Flush Diaphragm Pressure Sensor with Clamp PC112K

Features

■Flush diaphragm pressure sensor with clamp structure

■Imported highly reliable pressure die

■A single time silicon oil isolated filling technology

■ Compensation board filled with glue for protection against moisture

■ All stainless steel housing material

■ High accuracy, high reliability

■ Strong anti-interference, good long-term stability

■18 months warranty period


Product Parameters

Electrical performance parameters

Pressure range

-100kPa~0~10kPa…10MPa


Pressure reference

Gauge pressure, Absolute pressure, Sealed gauge pressure


Excitation

1.5mA recommended for constant current

10V recommended for constant voltage


Input impedance

Constant current: 2kΩ~5kΩ


Electrical connection

Gold-plated KOVAR pin or silicon soft wire


Compensated temp.

Constant current: 0℃~60℃(≤70kPa); -10℃~70℃(Other ranges)


Operating temp.

-40℃~120℃


Storage temp.

-40℃~120℃


Insulation resistance

≥200MΩ/250VDC


Response time

≤1ms(Up to 90%FS)


Measuring medium

All the liquids and gases compatible with 316L.


Mechanical vibration

20g(20~5000HZ)


Shock

100g/10ms


Durability

107 pressure cycles




Structural performance parameters

Diaphragm material

316L


Housing material

316L


Filling oil

M20




Basic parameters

Item

Condition

Min

Nominal

Max

Unit

Note


Non-linearity


-0.3

±0.25

0.3

%FS

Note


Hysteresis


-0.05

±0.03

0.05

%FS



Repeatability


-0.05

±0.03

0.05

%FS



Zero output


-2

±1

2

mV



Span output

10kPa

Other ranges

30

60

90



150



mV

1.5mA excitation


Zero temp. coefficient

10kPa

Other ranges

-2

-1.5

±1.5

±0.75

2

1.5

%FS

Note(2)


Span temp. coefficient


-1.5

±0.75

1.5

%FS

Note(2)


Thermal hysteresis


-0.075

±0.05

0.075

%FS

Note(3)


Long term stability


-0.3

±0.2

0.3

%FS/Year





Note:

(1) Calculate according to BFSL least square method.

(2) In the compensated temperature range, refer to 30℃ for 0℃~60℃ and -10℃~70℃.

(3) After passing high and low temperature, return to the reference temperature.

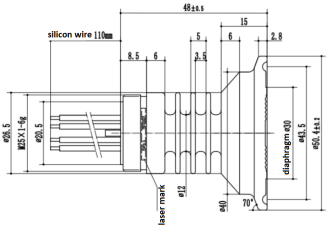

Structure & dimension




Wire color           Definition

Red             Excitation+(IN+)

Blue             Excitation-(IN-)

Yellow         Output+(OUT+)

White         Output-(OUT-)








How to choose cooling elements



Medium temp.: -40℃~150 (without cooling fins)

Medium temp.: -40℃~150℃ (3 pieces cooling fins)













Pin connection



Excitation+(IN+)    Pin3

Excitation-(IN-)     Pin5

Output+(OUT+)    Pin2

Output-(OUT-)     Pin4



Pressure range selection

Code

Pressure reference

Pressure range

Overpressure

Burst pressure


20k

G

0~20kPa

300FS

600FS


35k

G

0~35kPa

300FS

600FS


70k

G

0~70kPa

300FS

600FS


100k

G, A

0~100kPa

200FS

500FS


160k

G, A

0~160kPa

200FS

500FS


250k

G, A

0~250kPa

200FS

500FS


400k

G

0~400kPa

200FS

500FS


600k

G

0~600kPa

200FS

500FS


1M

G

0~1MPa

200FS

500FS


1.6M

G, S

0~1.6MPa

200FS

500FS


2.5M

G, S

0~2.5MPa

200FS

500FS


4M

S

0~4MPa

200FS

400FS


6M

S

0~6MPa

200FS

400FS


10M

S

0~10MPa

200FS

400FS


Note: G: Gauge pressure, A: Absolute pressure, S: Sealed gauge pressure
