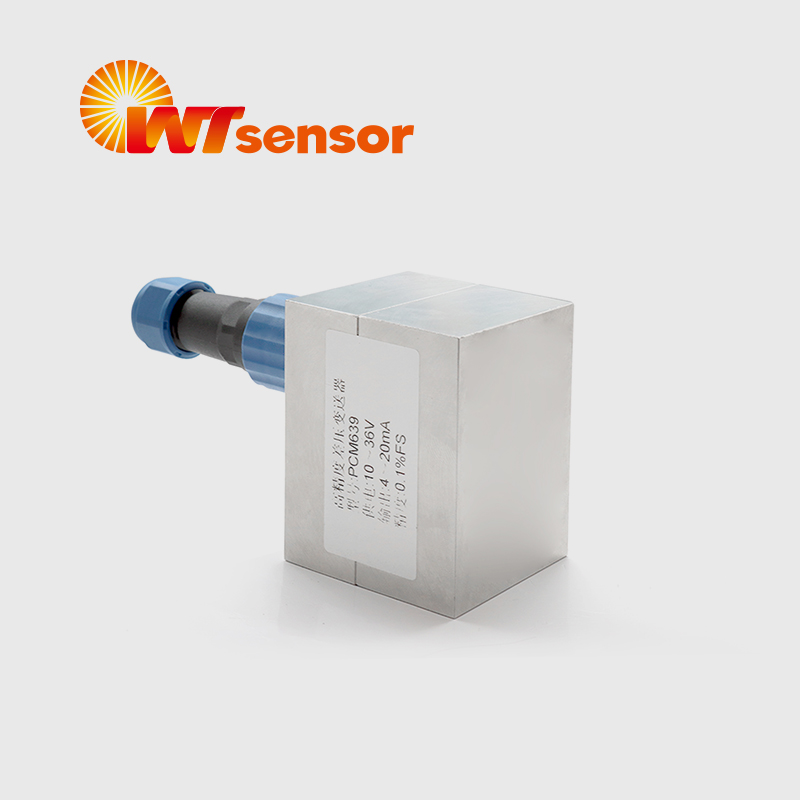

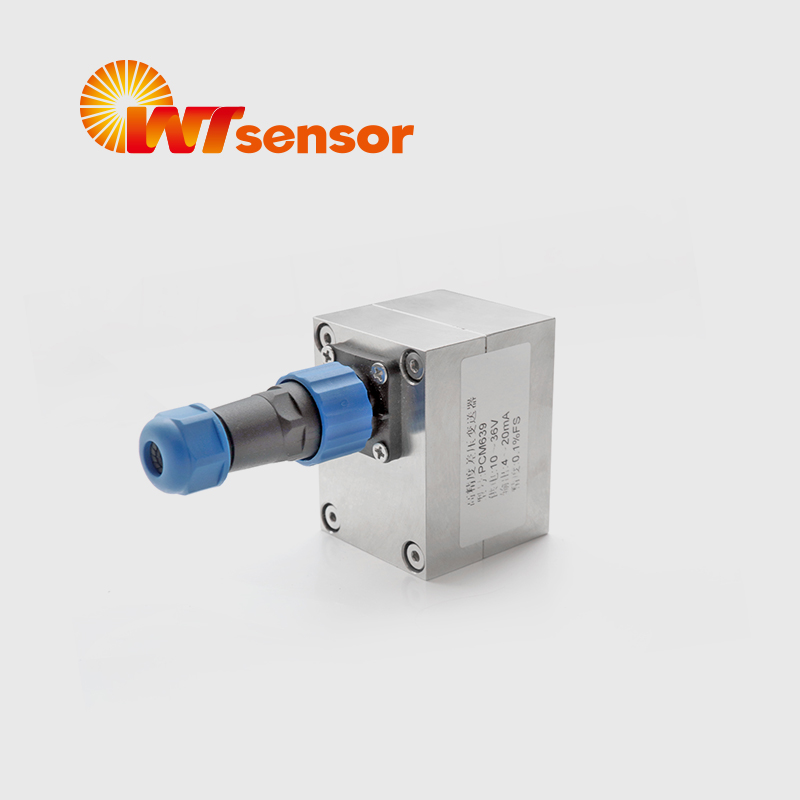

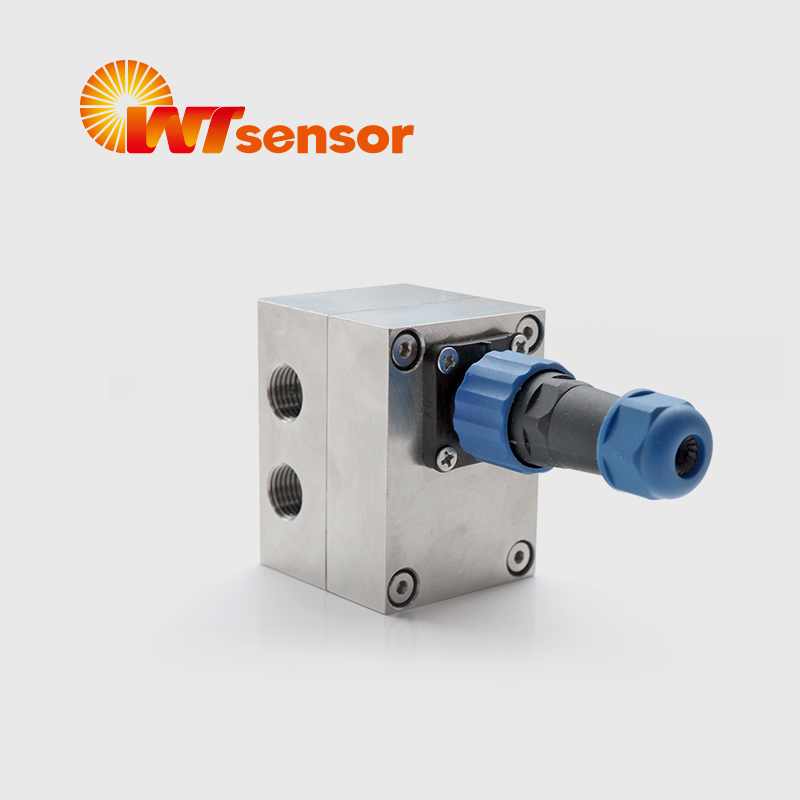

Differential Pressure Transmitter with Double Sensors PCM639

Applications

■ Hydropower

■ Chemical industry

■ Urban water supply

■ Scientific research

■ Accurate measurement of differential pressure of fluid



China differential pressure transmitter with double sensors,Wotian factory differential pressure transmitter,WTsensor differential pressure transmitter with two absolute pressure sensors and MSP430X

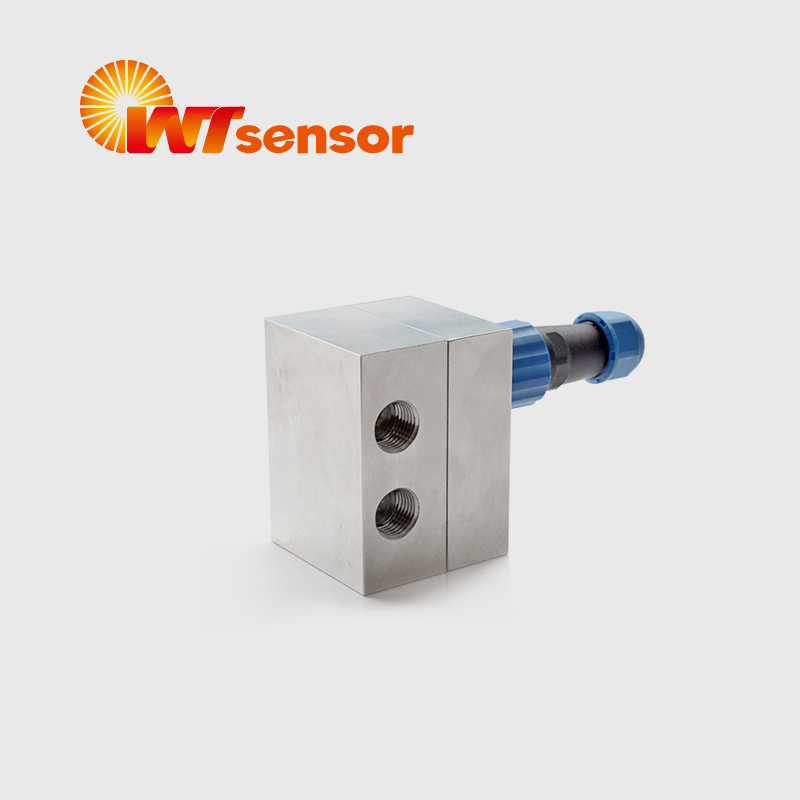

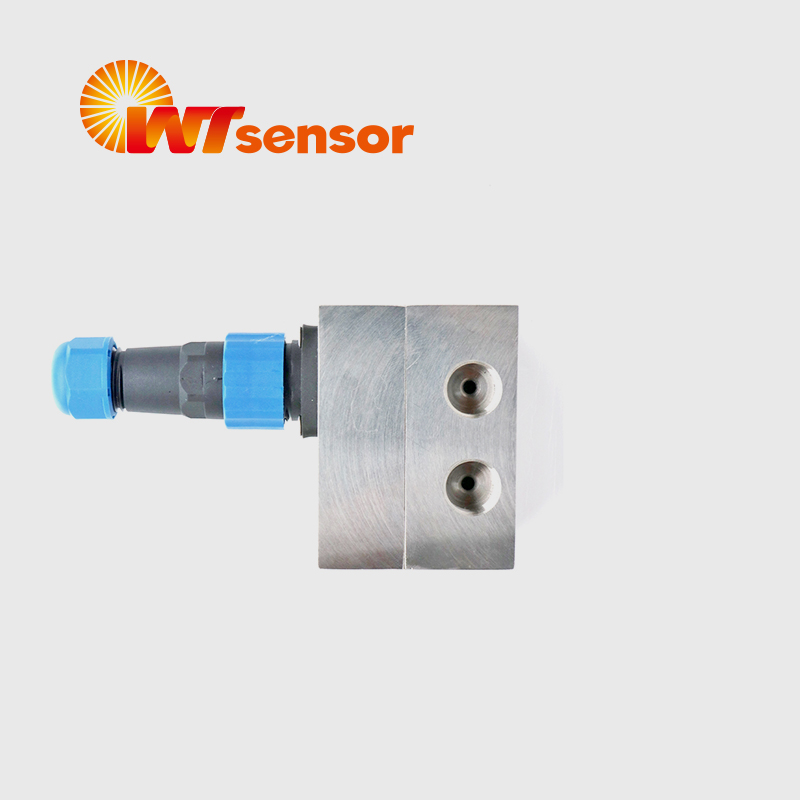

China Wotian factory differential pressure transmitter with 2 absolute pressure sensors, 2 pressure ports on each side for easy installation and the microprocessor-based MSP430X which enables digital error compensation to eliminate all repeatability errors such as linearity and rsistance dependence

Product Parameters

Electrical performance   parameters


Pressure   range

0100MPa



Pressure   reference

Absolute   pressure



Supply

1230V,   24V recommended



Output

420mA



Operating   temp.

-2580



Storage   temp.

-40100



Response   time

≤1ms (up to   90%FS)



Insulation   resistance

100MΩ/500VDC



Protection

IP65








Structural performance   parameters


Housing material

304



Medium compatibility

All kinds   of liquids and gases compatible with stainless steel








Basic parameters


Measurement   error

±0.5%
