  • Intelligent  Digital Pressure Gauge Φ100mm PCM100
  • Intelligent  Digital Pressure Gauge Φ100mm PCM100

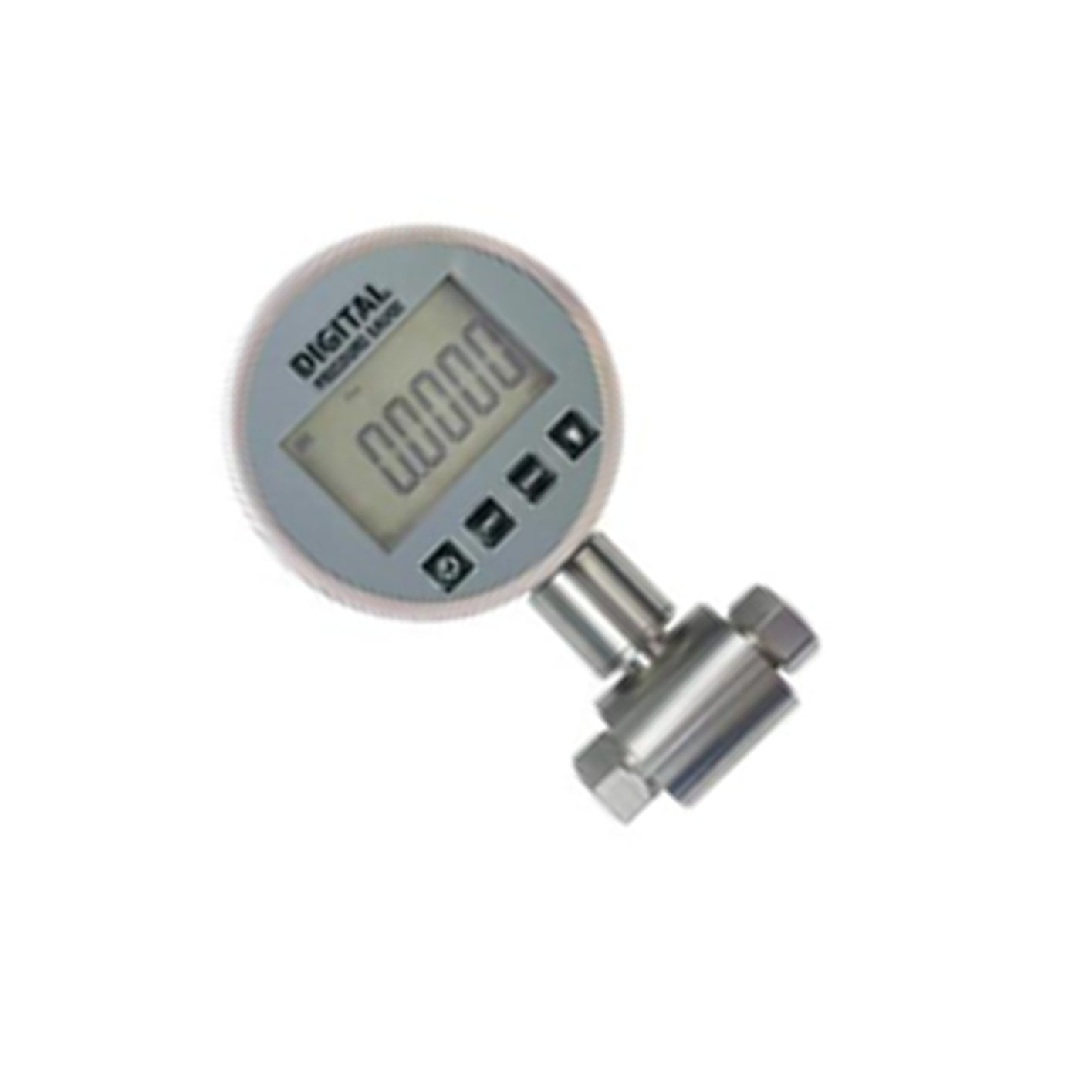

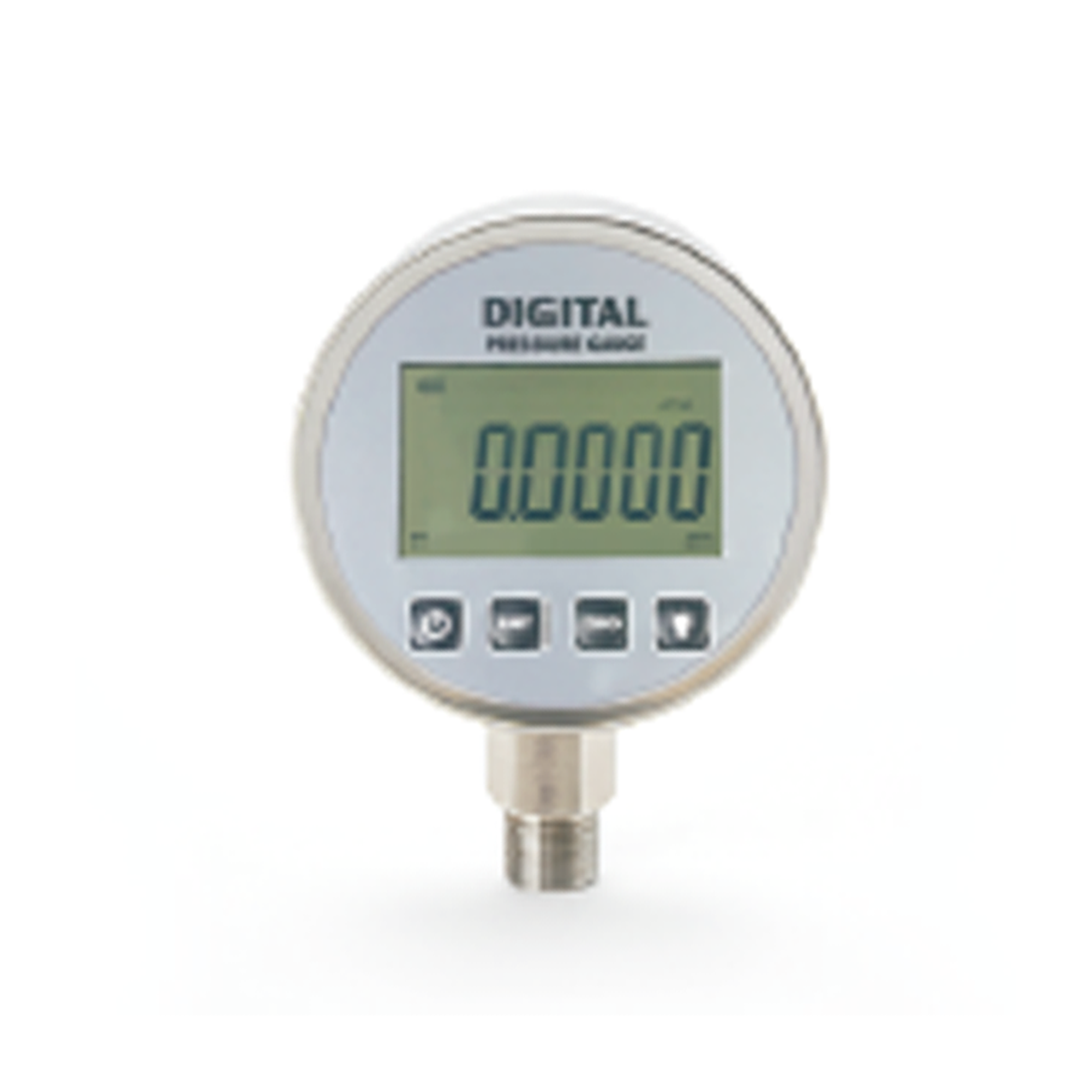

Intelligent Digital Pressure Gauge Φ100mm PCM100

Features

■ 5 digit LCD showing the pressure accurately in real time

■ Different pressure units available,zero clearing,backlight,on/off

■ Battery-powered,low-power design keeping working for 12 months

■ High precision,long-term stability


Application


■ Machinery and electronic industry

■ Supporting equipment of instruments and meters

■ Pressure laboratory

■ Mechanical engineering automation

■ Replacement of pointer precise pressure gauge

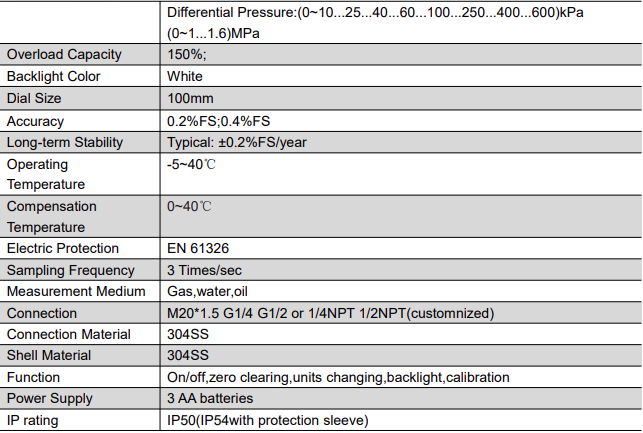

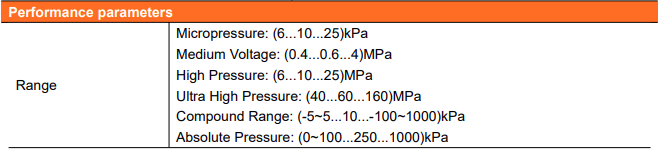

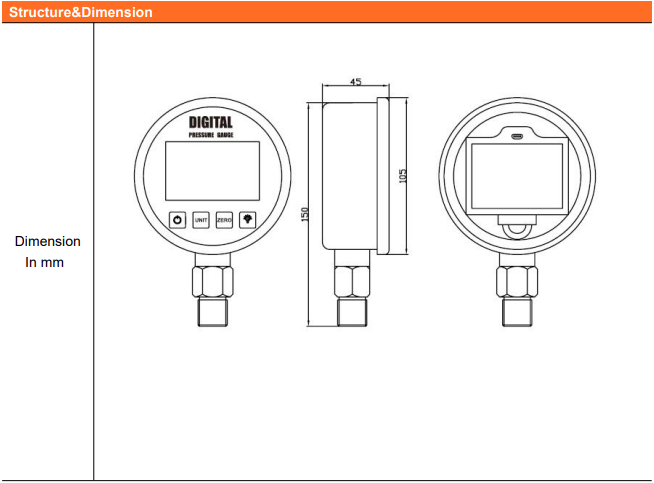

Product Parameters


Φ100mm PCM100 Intelligent  Digital Pressure Gauge

Φ100mm PCM100 Intelligent  Digital Pressure Gauge

Φ100mm PCM100 Intelligent  Digital Pressure Gauge
