Wotian PCM3051S-DP intelligent differential pressure transmitter power supply considerations

From: Issued date 2019.05.06 Back

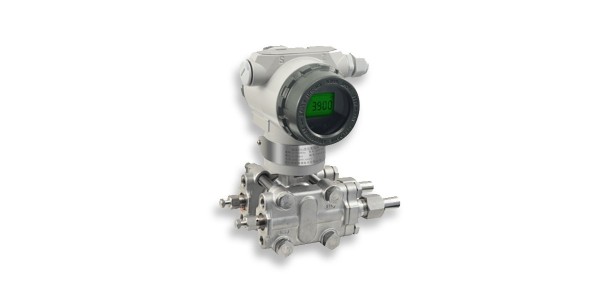

Wotian PCM3051S-DP intelligent differential pressure transmitter is a well-developed high performance pressure transmitter of international leading technology adopting world advanced monocrystalline silicon pressure sensor technology and patented packaging technology.


Wotian PCM3051S-DP intelligent differential pressure transmitter uses diaphragm with patented double overpressure protection design and internal circuit with anti-surge protection design. PCM3051S-DP can accurately measure gauge pressure, absolute pressure, flow, vacuum, liquid level and density.

Wotian PCM3051S-DP intelligent differential pressure transmitter power supply considerations

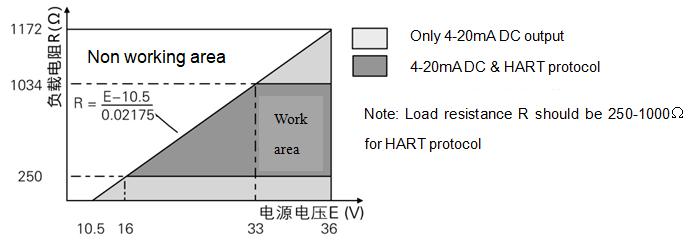

Wotian PCM3051S-DP intelligent differential pressure transmitter is recommended to use independent linear DC power supply. Resistive load will cause voltage drop. It is required that the calculation signal cable, display head and other records show the total resistance of the equipment to ensure that the voltage reaching the terminal meets the requirements.

▲ For standard current signal output: 12-30VDC.

▲ For current signal output with HART: 16-36VDC.


Wotian PCM3051S-DP intelligent differential pressure transmitter power supply considerations


Nanjing Wotian Technology Co., Ltd. was established in 2005, specializing in the production of pressure sensors. It is the leading domestic manufacturer of pressure sensors, with existing staff 260. The annual production of pressure sensors is more than 1.5 million. The products have been exported to more than 70 countries and regions. The company is headquartered in the scenic Jiulong Lake International Headquarters Base in Nanjing. The foreign trade team is located in Shenyang, the center of Northeast Heavy Industry Base.

Nanjing Wotian Technology Co., Ltd. is a "High-Tech Enterprise", "Nanjing Engineering Technology Research Center" and "Nanjing Post-Doctoral Innovation Practice Base".
