The core component diffused silicon pressure core

From: Issued date 2023.02.13 Back

The diffused silicon core is the core component (OEM) for manufacturing pressure sensors and pressure transmitters. As a high-performance primary pressure measurement product, it can be easily amplified and assembled into a standard signal output transmitter. Applied to process control in petroleum, chemical, metallurgy, electric power, aviation, medical equipment, automotive, HVAC and other industries.


The diffusion silicon pressure core is composed of compensation plate, steel ball, base, O-ring, chip, ceramic pad, diaphragm, pressure ring, silicone oil, etc.

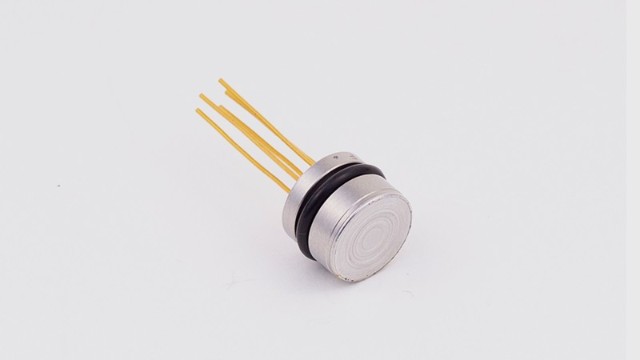

The core component of the sensor diffused silicon pressure core

Features of each part:


Compensation board: signal amplification


Steel ball: sealing oil


Base: Carrier of pressure sensor


O-ring: sealed


Chip: Feel the pressure


Ceramic mat: filling


Diaphragm: in contact with the liquid or gas being measured


Pressure ring: Weld the diaphragm to the base


Silicone oil: conductive pressure


Nanjing Wotian is a manufacturer specializing in the production of pressure cores, pressure sensors, pressure transmitters, liquid level transmitters, etc. for 16 years. Its high quality, wide range, complete variety, and short delivery time have won customers at home and abroad. Of praise. If you have any needs, you can call our hotline 400-8508-330 at any time. The editor is here waiting for your call.
