Nanjing Wotian PCM3051S-DP intelligent differential pressure transmitter power supply precautions

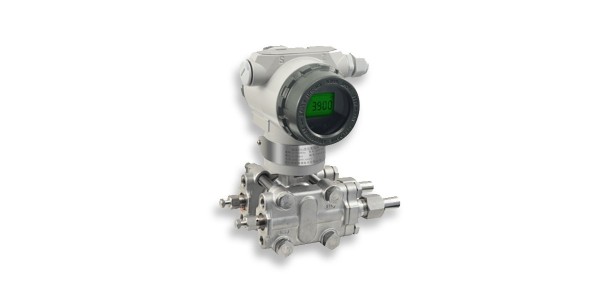

Nanjing Wotian PCM3051S-DP intelligent differential pressure transmitter is a world-leading high-performance pressure transmitter carefully developed using the world's most advanced single crystal silicon pressure sensor technology and patented packaging technology.

Nanjing Wotian PCM3051S-DP intelligent differential pressure transmitter adopts patented double overload protection diaphragm design and internal circuit anti-surge protection design, which can accurately measure gauge pressure, absolute pressure, flow rate, vacuum degree, liquid level and density.

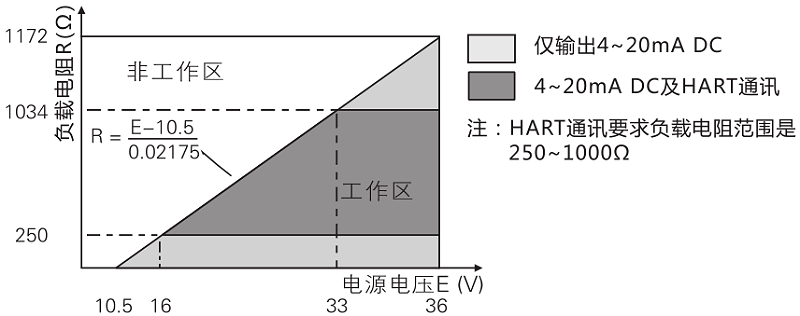

Nanjing Wotian PCM3051S-DP intelligent differential pressure transmitter is recommended to use an independent linear DC power supply to power the pressure transmitter. The resistance load will cause a pressure drop. Calculate the signal cable, display the meter head, and other records to display the total resistance of the device to ensure that it arrives. wiring

The voltage at the terminals meets the requirements.

▲ For standard current signal output: 12-30VDC.

▲ For current signal output with HART: 16-36VDC.

Nanjing Wotian Technology Co., Ltd. was established in 2005. It focuses on the production of pressure sensors. It is a domestic heavy-duty pressure sensor manufacturer. It has the core technology of diffused silicon pressure sensors and glass micro-melt pressure sensors. More than 2 million silicon pressure sensors are exported to more than 70 countries and regions. The company has factories in Nanjing and Anshan, and its headquarters is located in the scenic Nanjing Jiulonghu International Headquarters Base.

Nanjing Wotian Technology Co., Ltd. is a "high-tech enterprise", "Nanjing Engineering Technology Research Center" and "Nanjing Postdoctoral Innovation Practice Base".
