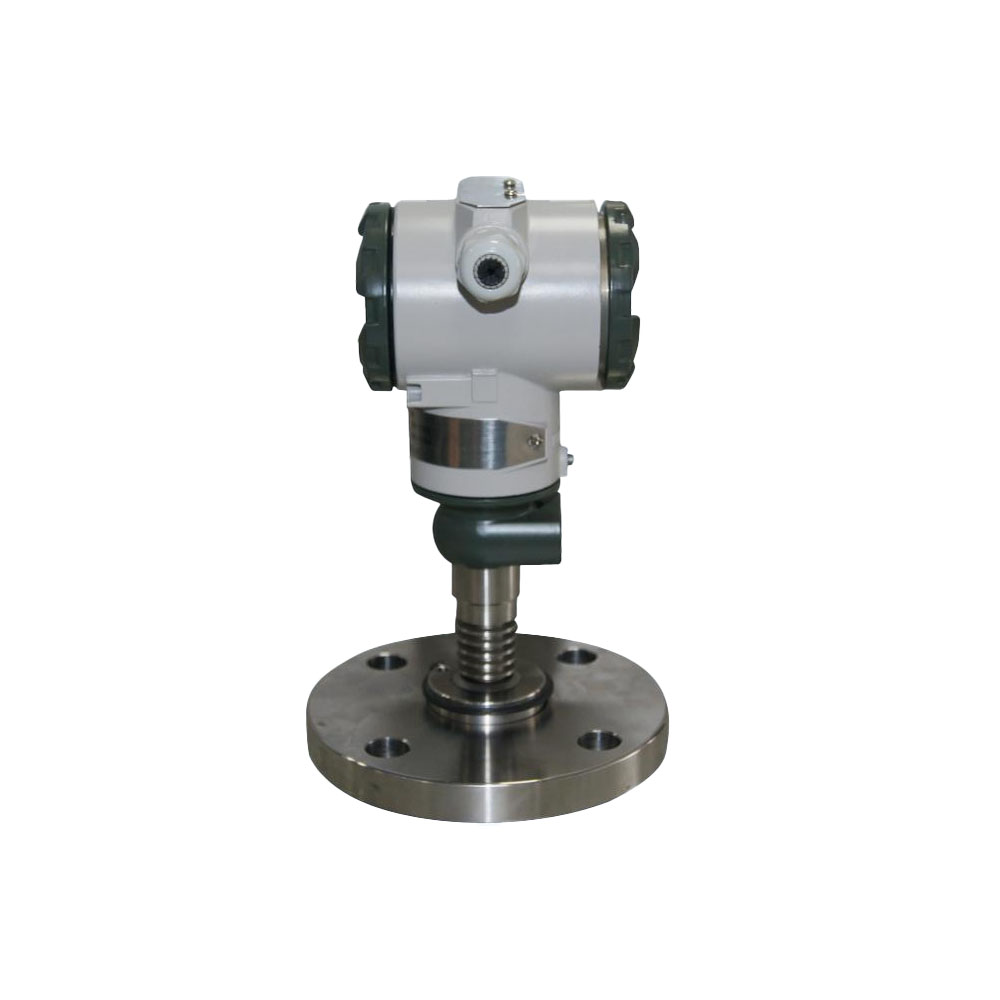

PCM2051-F/R Intelligent Flush Diaphragm Monocrystalline Silicon Pressure Transmitter with Flange
Features
■ Adopt advanced single crystal silicon differential pressure sensor
■ Two-wire system, 4~20mA analog output, HART® digital communication
■ Intelligent LCD meter with backlight
■ With local zero point and range adjustment
■ Complete variety, high precision and good stability
■ Explosion-proof shell structure, strong anti-frequency interference ability
■ High static pressure and high overload protection
■ Lightning protection circuit design
Application and industry
■ Process control in the fields of petroleum, chemical, metallurgy, electric power, food, papermaking, medicine, machinery manufacturing, etc.
Product Overview
PCM2051-F/R intelligent flange mounted pressure transmitter adopts advanced single crystal silicon pressure sensor technology and is a high performance pressure transmitter with international leading technology . This product adopts internal circuit surge protection design and can be used to measure the level, density, pressure and flow of liquid, gas or steam, and then convert it into 4~20mA+HART current signal output.
Product Parameters
Performance parameters | |
Measurement Range | 0～6kPa, 0～40kPa, 0～100kPa , 0～250kPa, 0～1MPa , 0～3MPa |
Power Supply | 12~32V, 24V recommended |
Output | 4～20mA+HART protocol |
Accuracy | ±0.1%FS (25±5℃, standard range) |
Temperature Drift | 0.25%FS (-20℃～70℃, standard range) |
Ambient temperature | -30℃～80℃; with LCD meter -30℃～70℃ |
Medium temperature | -40℃～125℃ |
Storage temperature | -20℃～70℃ |
Insulation resistance | ≥200MΩ/250VDC |
Protection level | IP65 |
Explosion-proof | Exd II BT6 Gb |
Static pressure effect | Zero point influence 0.15%FS / 4MPa Full range influence 0.25%FS / 4MPa |
Long-term stability | ±0.2%FS/year |
