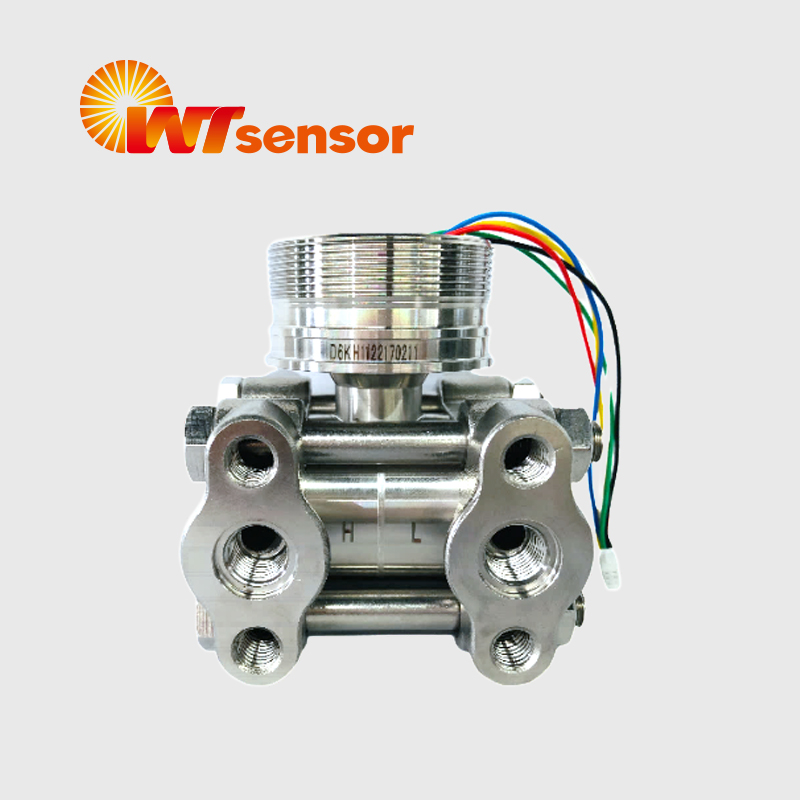

Monocrystalline Silicon Differential Pressure Sensor with Flange PC90DK
Features
■ Imported high stability Monocrystalline Silicon differential pressure chip
■ High accuracy and excellent stability
■ Static pressure error within ±0.15%FS/10MPa
■ Double overload protection diaphragm design
■ Overpressure limit of up to 40MPa
■ Constant voltage excitation
■ 316L stainless steel all welded integrated structure
■Positive and negative pressure symmetrical structure
Applications
■Differential pressure transmitter core component
■ Differential pressure flow transmitter core component
Product Parameters
Performance parameters | ||
Constant voltage power supply | 5V DC | |
Operating temp. | -40℃-85℃ | |
Medium temp. | -40℃-125℃ | |
Output voltage | 60~140mV | |
Zero temp. coefficient | ±0.05%FS/℃ | |
Temp. hysteresis | ±0.1%FS(10kPa<Range≤3000kPa) | |
±0.5%FS(Range≤10kPa) | ||
Pressure hysteresis | ±0.025%FS | |
Long-term drift | ±0.05%FS/Year | |
Nonlinearity | ±0.5%FS(10kPa<Range≤3000kPa) | |
±1.5%FS(Range≤10kPa) | ||
Static pressure impact | ±0.15%FS/10MPa | |
Diaphragm material | Stainless steel 316L | |
Flange material | SUS304 (with silicone rubber O-ring), SUS316 (with PTFE O-ring) | |
Pressure range selection | |||
Code | Pressure range | Unilateral overpressure | Static pressure |
6k | －6kPa～0～6kPa | 16MPa | 16MPa |
40k | －40kPa～0～40kPa | 16MPa | 16MPa |
100k | －100kPa～0～100kPa | 16MPa | 25MPa |
250k | －100kPa～0～250kPa | 16MPa | 25MPa |
1M | －100kPa～0～1MPa | 16MPa | 40MPa |
3M | －100kPa～0～3MPa | 16MPa | 40MPa |
