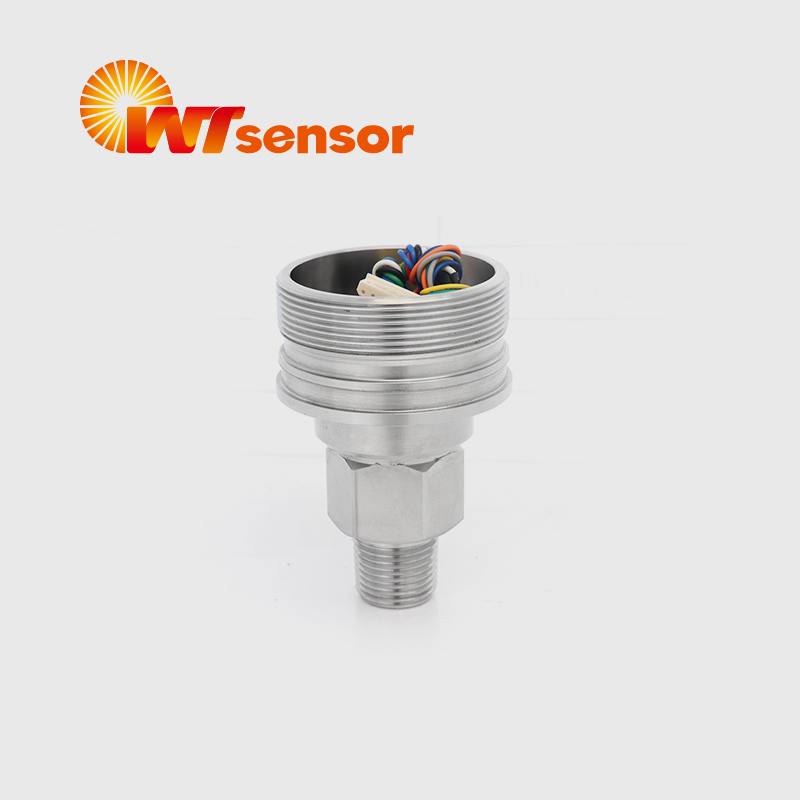

  • PC90 Monocrystalline Silicon Pressure Sensor

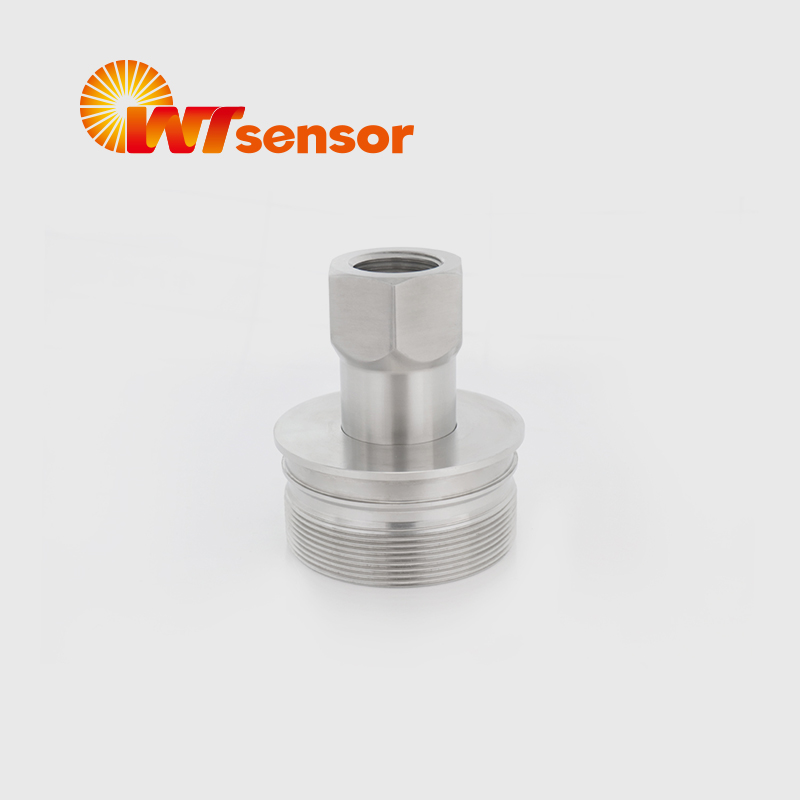

  • PC90 Monocrystalline Silicon Pressure Sensor

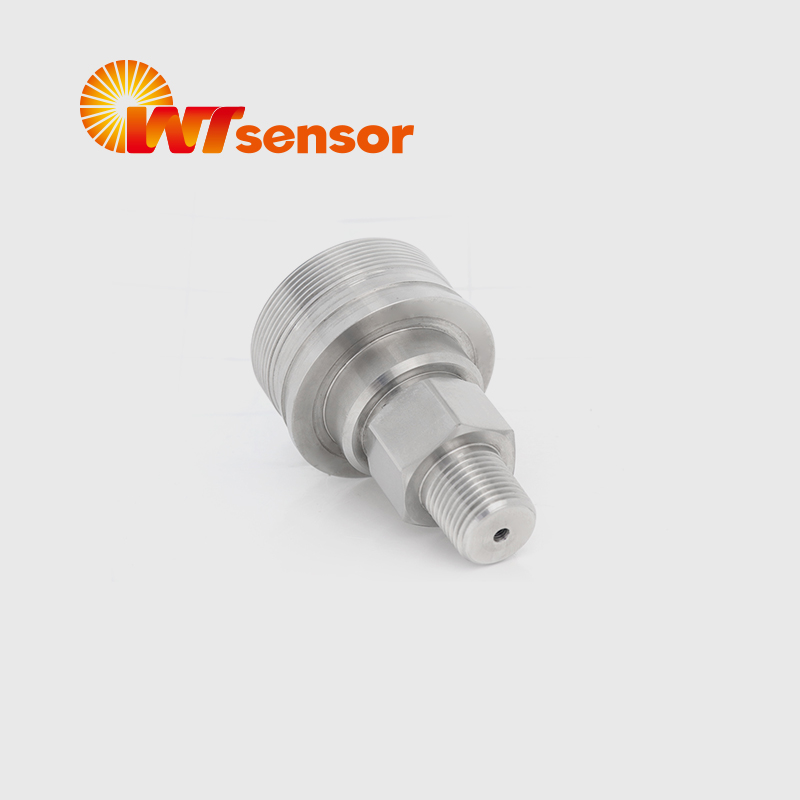

  • PC90 Monocrystalline Silicon Pressure Sensor

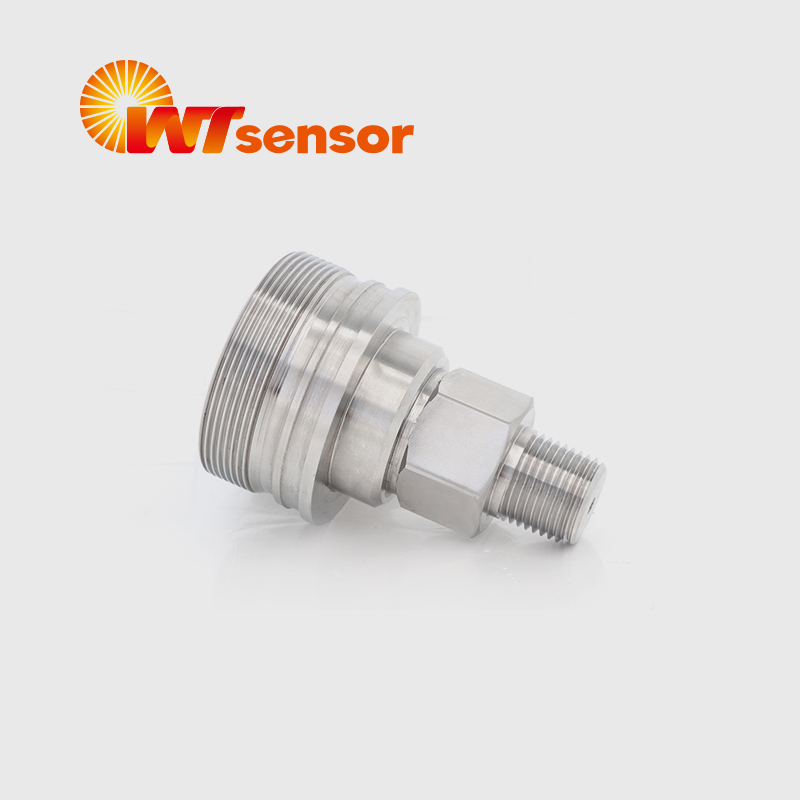

  • PC90 Monocrystalline Silicon Pressure Sensor

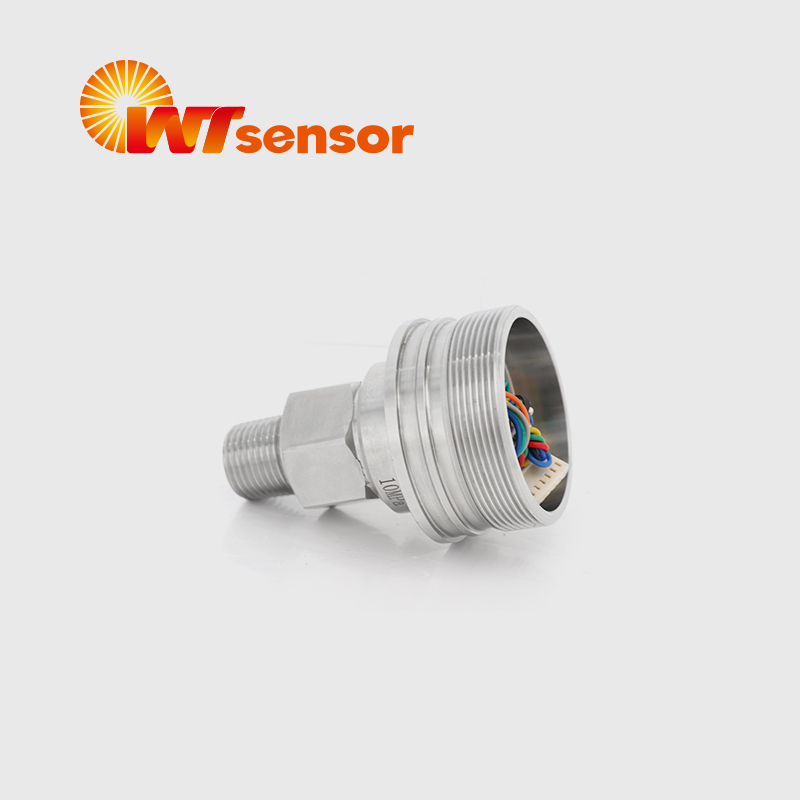

  • PC90 Monocrystalline Silicon Pressure Sensor

PC90 Monocrystalline Silicon Pressure Sensor

Features

Imported monocrystalline silicon pressure die

Excellent overpressure performance

316L stainless steel all welded

integrated structure

Gauge pressure type applicable to negative pressure measurement

Suitable for a variety of threads and shells


Applications

  Provide OEM for industrial transmitter manufacturers


Product Parameters

Performance   parameters


Supply

Constant   voltage



Operating   temp.

-40-85



Storage temp.

-50-125



Output   voltage

60~140mV



Zero temp.   coefficient

±0.05%FS/



Temp. hysteresis

±0.1%FS(Range≥10kPa)



±0.5%FS(Range<10kPa)



Pressure hysteresis

±0.05%FS



Long-term   drift

±0.05%FS/Year



Nonlinearity

±0.5%FS(Range≥10kPa)

±1.5%FS(Range<10kPa)



Max.   overpressure

See “Pressure   range selection” below.



Diaphragm   material

Stainless   steel 316L, Hastelloy C



Production process

PC90D Monocrystalline Silicon  Differential Pressure SensorPC90D Monocrystalline Silicon  Differential Pressure Sensor

PC90D Monocrystalline Silicon  Differential Pressure SensorPC90D Monocrystalline Silicon  Differential Pressure Sensor

PC90D Monocrystalline Silicon  Differential Pressure SensorPC90D Monocrystalline Silicon  Differential Pressure Sensor
