  • PCM2051-W-AP/GP Monocrystalline Silicon Pressure Transmitter

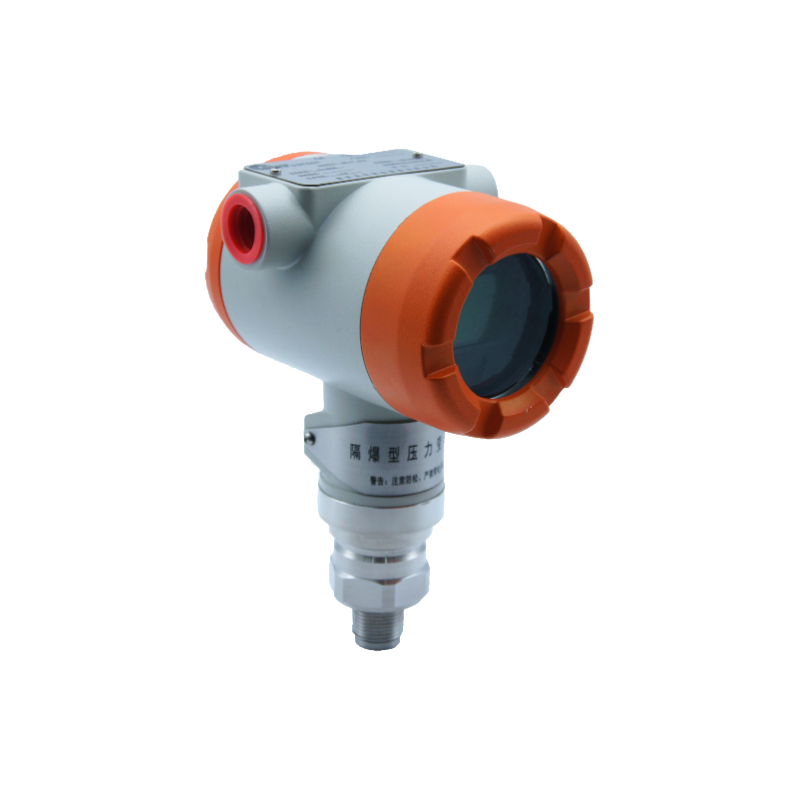

PCM2051-W-AP/GP Monocrystalline Silicon Pressure Transmitter

Features

■ German-imported MEMS monocrystalline silicon pressure sensor chip adopted

■ Wide pressure range covering

■ Double-wire mode, 4~20mA HART® protocol digital communication option

■ Intelligent LCD gauge outfit with backlight

■ With local zero and pressure range adjustment

■ Complete varieties, high accuracy, good stability

■ Isolation ex-proof housing structure, strong resistance to the frequency conversion interference

■ No mechanical transmission parts, strong anti-vibration



Applications and industries


■ Process control fields for the industries such as petroleum, chemical industry, metallurgy, electricity, food, papermaking, medicine, machine manufacturing, scientific experiment and military aviation etc.



Product Parameters

Performance parameters


Pressure range

±6kPa G,±40kPa G,±100kPa G,-100~250kPa G,0~100kPa A,0~250kPa A,

-0.1~1MPa G,-0.1~3MPa G,0~10MPa S,0~20MPa S,0~40MPa S

Pressure reference

Gauge pressure |Absolute pressure |Sealed gauge pressure

Supply

12V~32V, recommended 24V

Output

4~20mA+HART protocol

Accuracy

±6kPa: ±0.1%FS; Other pressure ranges: ±0.075%FS (Standard pressure range, 25±5℃)

Temperature drift

±6kPa: ±0.3%FS; Other pressure ranges: ±0.25%FS (Standard pressure range, -20~70℃)

Ambient temperature

-30℃~70℃

Medium temperature

-40℃~120℃

Vibration resistance

20g(20~5000Hz)

Shock resistance

100g(11ms)

Overpressure

Please see pressure range selection

Long-term stability

±0.1%FS/year

Protection grade

IP67

Ex-proof grade

Ex d IIC T6 Gb

Material

Housing cast aluminum alloy; isolation diaphragm 316L

Medium compatibility

All kinds of media compatible with SS316L

Response time

HART collects data from sensor: 0.1s;

HART outputs data: 0.5s
