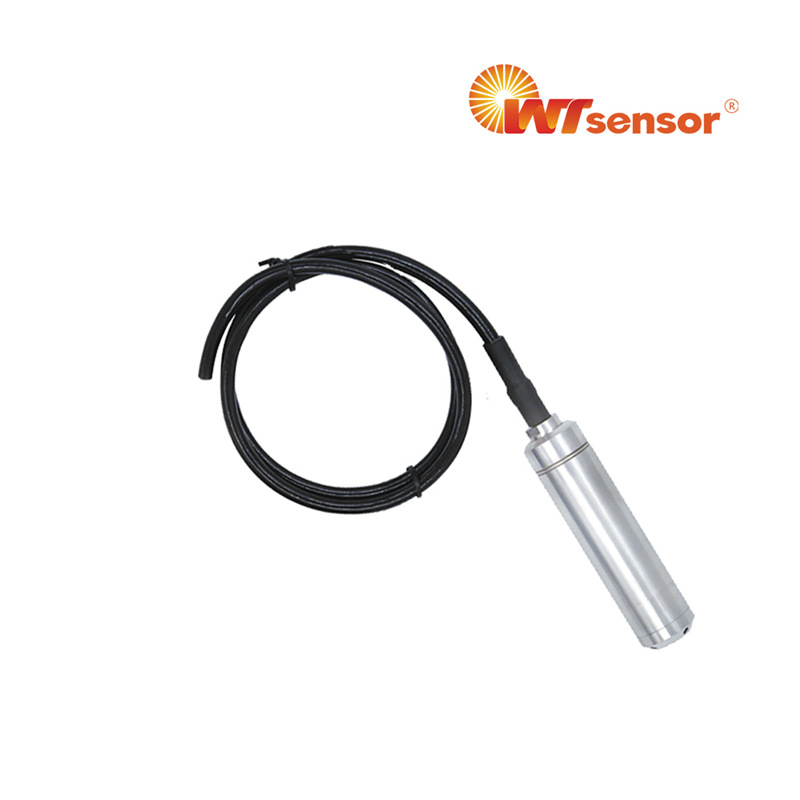

PCM266 Smart Submersible Level Transmitter
l Smart level transmitter
l Probe insertion measurement mode, small size, simple and convenient installation
l HART protocol option
l RS485-MODBUS protocol option
l Multi protection structure design, high protection ability
l Corrosion resistant stainless steel adopted, applicable to various industry fields
l Support configuration applications
PCM266 smart submersible level transmitter, China pressure transmitter,wotian pressure transmitter,factory
PCM266 level transmitter is a fully sealed submerged type liquid level measuring instrument in full stainless steel design.It can directly replace the analog output transmitter of 4 ~ 20mA of two wire system.Nanjing Wotian Technology Co., Ltd is a Chinese manufacturer that produces the transmitter.
Product Parameters
Pressure range | |
Pressure range | 0.5m, 1m, 2m, 5m, 10m, 20m H2O |
Output signal | |
Output | 4 to 20mA + Hart protocol | 4 to 20mA + RS485-MODBUS protocol |
Specification | |
Accuracy (linearity, repeatability and hysteresis) | ±0.5%F.S. (Typical) |
Overpressure | 150%F.S. |
Supply | 24VDC |
Compensated temp. | 0ºC - 60ºC (0m - 10m H2O) | -10ºC - 70ºC (10m - 20m H2O) |
Operating temp. | -20ºC - 85ºC |
Medium temp. | 0ºC - 100ºC |
Storage temp. | -40ºC - 125ºC |
Zero temp. coefficient | ±1%F.S. (0ºC - 85ºC) |
Span temp. coefficient | ±1%F.S. (0ºC - 85ºC) |
Long term stability | ≤0.2%F.S.S./year |
Housing material | Stainless steel 316L |
Sensor material | Stainless steel 316L |
Protection | IP68 |
Housing diameter | φ26.5mm |
Weight | 250g(approx) |
Company advantage
Mass production
We have one production center in Nanjing and one production center in Anshan with 20,000㎡plant and 170 units of production equipments. The main annual capacity of sensors is about 2,000,000 pieces.
Imported equipments
We imported 20 sets of pressure controller and 150 units of testing ovens to our production line.
Informatization management
We have the information management system of CRM, PLM, ERP, MES and DINGDING etc.
Comprehensive testing
We have our own lab and testing equipment such as lightning stroke, surging, static electricity, vibration, high-low temperature impact test and helium mass-spectrum leak detection.
