PCM261 Level Transmitter
Features
■ Piezoresistive silicon chip employed
■ Probe insertion measurement mode, simple and convenient installation
■ Custom flange
■ All-metal armored, high strength steel pipe structure
■ Multiple protection structure design, high protection ability
■ LCD option
■ Corrosion resistant stainless steel adopted, applicable to various industry fields

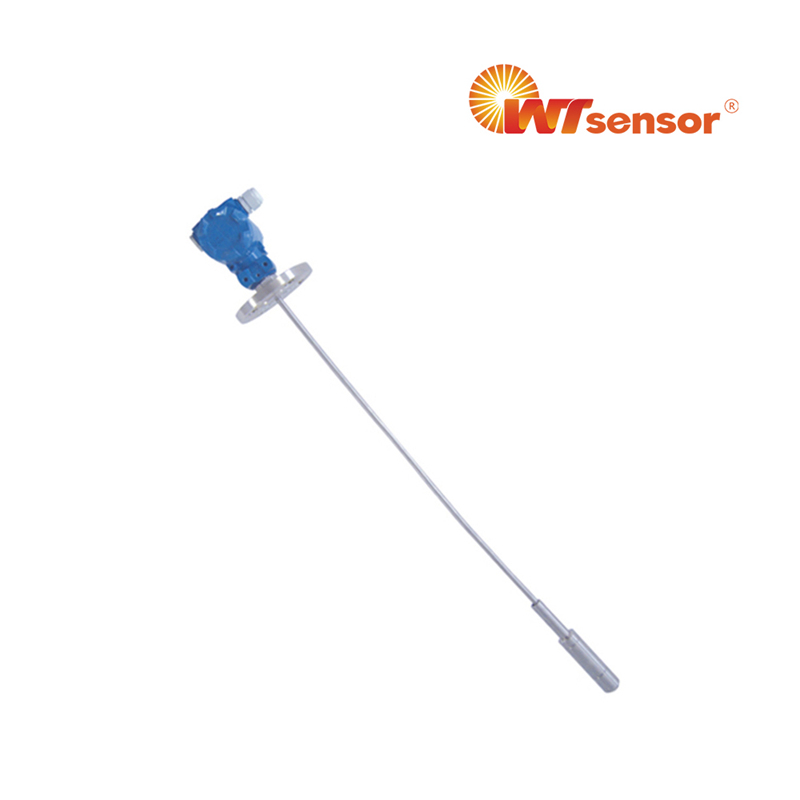

PCM261 armored piezoresistive diffused silicon level transmitter with flange, OEM 4-20mA LCD water level sensor
PCM261 armored piezoresistive diffused silicon submersible level transmitter is China factory made with CE. It has aluminum housing with LCD display and customized flange. Output 4-20mA, 0-5V, 1-5V, range from 0.5m to 200m, applicable to level measurement of water, liquid, oil, petrolem, chemicals.
Product Parameters
Pressure range | |
Pressure range | 0.5m, 1m, 2m, 5m, 10m, 20m, 50m, 100m, 200m H2O |
Overpressure | 150%F.S. |
Output signal | |
Output | 4 to 20mA| 1 to 5V| 0 to 5V |
Specification | |
Accuracy (linearity, repeatability and hysteresis) | ±0.5%F.S. |
Excitation | 24VDC| 12VDC |
Operating temp. | 0-85ºC |
Medium temp. | -20-85ºC |
Storage temp. | -40-125ºC |
Compensated temp. | 0m-10m H2O: 0-60ºC | 10m-200m H2O: -10-70ºC |
Zero temp. coefficient | ±1.5%F.S.max.(within compensated temp.) |
Span temp. coefficient | ±1.5%F.S.max.(within compensated temp.) |
Mechanical vibration | 20g(20 to 5000HZ) |
Shock | 100g(11ms) |
Insulation | 200MΩ/250VDC |
Response time | ≤1ms(up to 90%FS) |
Long term stability | ≤0.2%F.S.S/year |
Protection | IP68 |
Material | Low copper aluminum alloy for junction box, stainless steel for probe; Stainless steel for flange |
Medium compatibility | All kinds of media compatible with 304 stainless steel |
