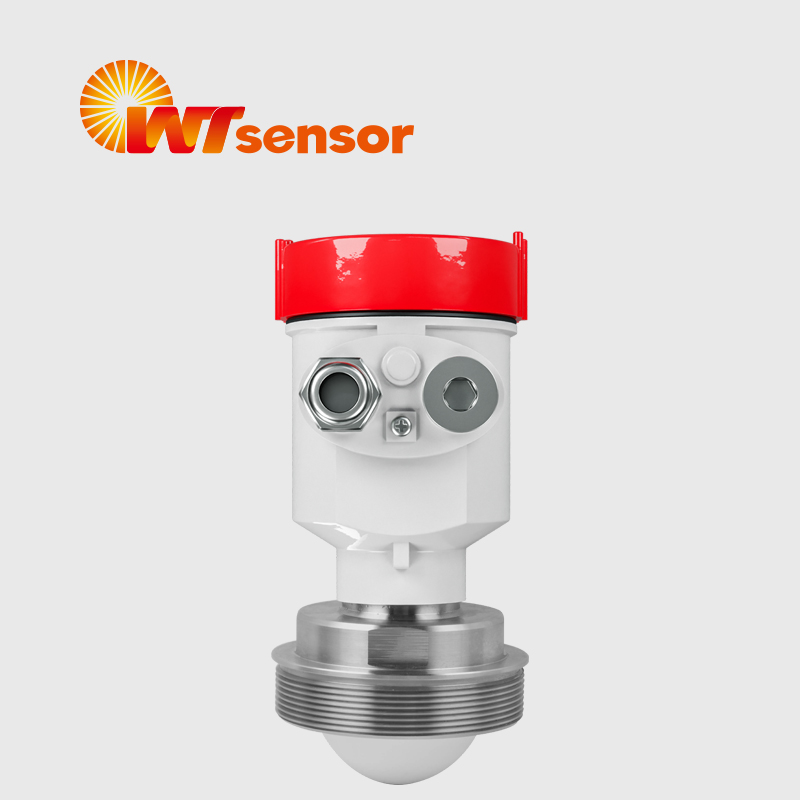

Level Radar Transmitter PCRL01
Features
■ Range: M1-10m, M2-20m, M3-30M, M6-60m, MB-120m
■ Range: M1-10m, M2-20m, M3-30M, M6-60m, MB-120m
■ Abundant physical interfaces: 4~20mA (2 channels optional), HART,AUTBUS
■ Fieldbus Foundation, ProfibusPA, NB-IoT, etc.
■ Support Bluetooth debugging function
■ Support low dielectric constant (less than1.5) medium TBF tank bottom reflection measurement
■ Support backlight display
Applications
■ Chemical industry
■ Solids level measurement
■ Sewage treatment
■ Mining industry
■ Paper and Pulp Industry
■ Boiler Engineering
■ Liquid and solid powder measure
■ Acids, bases or other corrosive media
Product Parameters
Performance parameters | |
Transmit frequency | 76GHz~81GHz |
Range | 0.08 m ~10m;0.08~20m;0.08 m ~30m;0.3 m~60m;0.6 m~120m |
Accuracy | ±1mm |
Measurement interval | Fastest 100ms |
Beam angle | 3°/8°/20° |
Dielectric constant range | ≥2 |
Power supply | 12~28VDC |
Communication | MODBUS, HART |
Signal output | 4~20mA or RS-485 |
Fault output | 3.8mA, 4mA, 20mA, 21mA, hold |
On-site operation/programming | 128×64 dot matrix display/4 buttons; configurable host computer setting software |
Industrial temperature/humidity | T0:-40~85℃/humidity≤95%RH; T1:-40~200℃; T2:-40~500℃; T3:-40~1000℃ |
Shell material | Aluminum alloy, stainless steel |
Process connection | Pipe thread/universal flange/anti-corrosion flange/sanitary chuck/quartz isolation flange |
Process pressure | -0.1~2MPa |
Dimension | φ 100*270mm |
Connection | M20*1.5 |
Recommended wire | AWG18 or 0.75mm² |
Ingress protection | IP67 |
Mounting method | Thread or flange |
