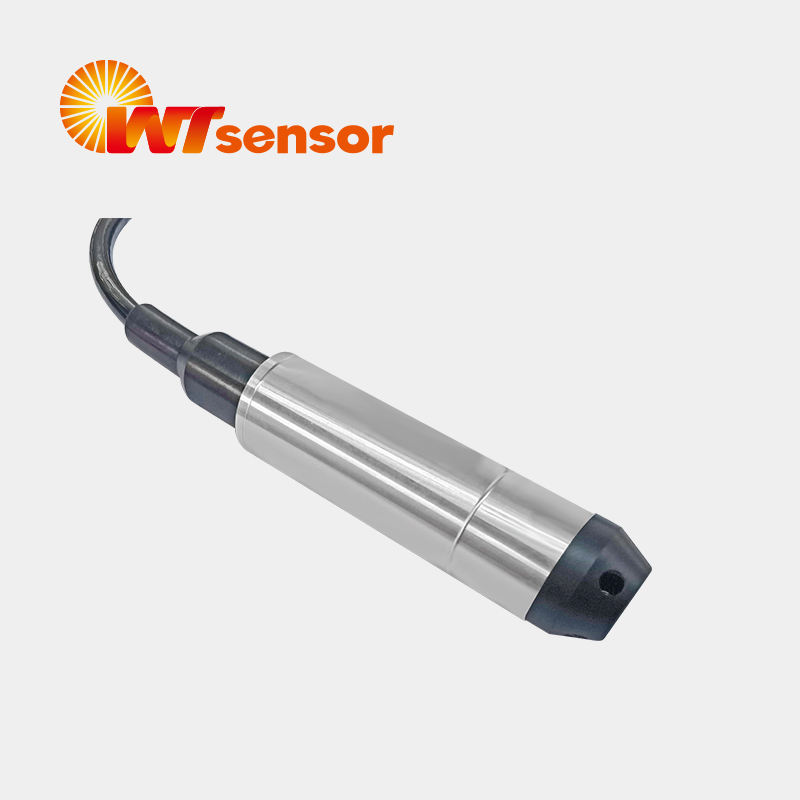

Submersible Level Transmitter PCM260H

Features

 Diffuse piezoresistive silicon sensor adopted

 Probe insertion measurement mode, simple and convenient installation

 For level measurement

 High accuracy, all stainless steel structure

 Small size and light weight

 Strong anti-interference, good  long-term stability

 Anti-vibration, shock resistance

Applications and industries

 Water level measurement in rivers and lakes

 Level measurement of containers and storage systems

 Sewage lift pump and pumping station control

 Sewage, sediment and flood drainage system monitoring








Product Parameters

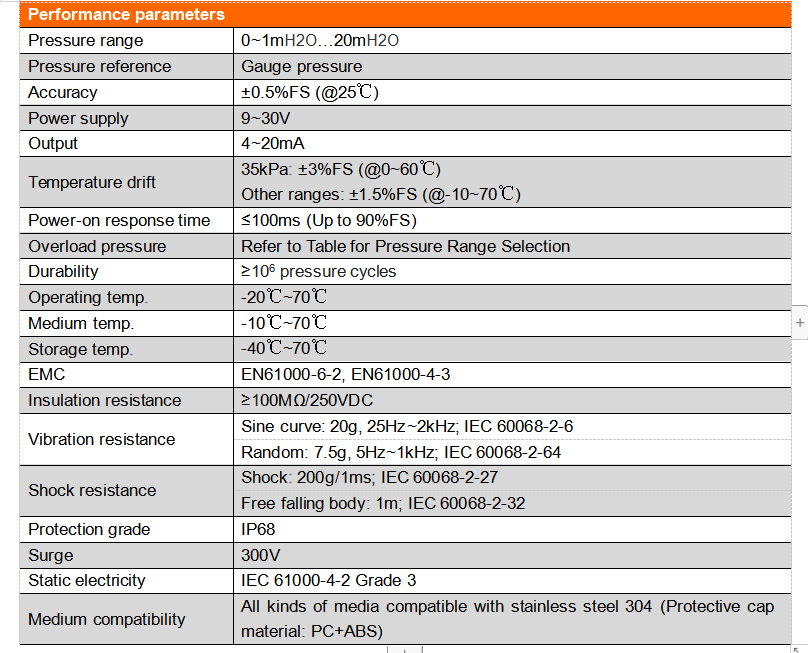

Performance parameters

Pressure range

01mH2O…200mH2O

Pressure reference

Gauge pressure

Accuracy

±0.5%FS@25

Supply

930V

Output

420mA

Temp. drift

35kPa±3%FS(@060

Others±1.5%FS(@-1070

Response time

≤100msUp to 90%FS

Overpressure

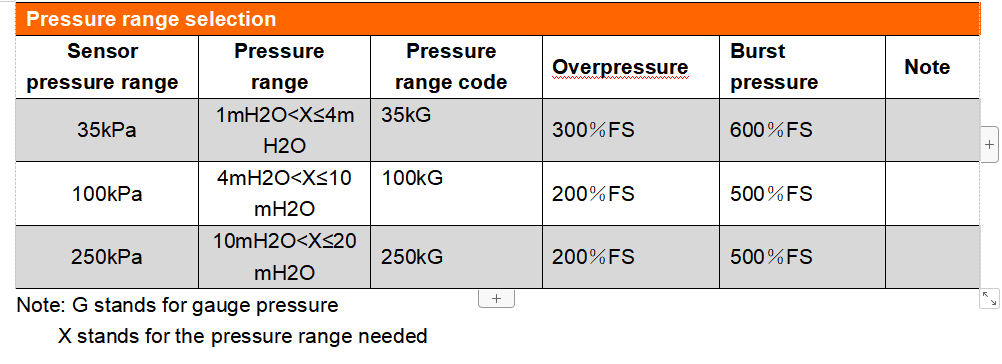

Refer to “Pressure range selection”

Service life

≥106 pressure cycles

Operating temp.

-2070

Medium temp.

-1070

Storage temp.

-4070

EMC

EN61000-6-2, EN61000-4-3

Insulation resistance

≥100MΩ/250VDC

Vibration resistance

Sine curve20g, 25Hz2kHzIEC 60068-2-6


Random7.5g, 5Hz1kHzIEC 60068-2-64

Shock resistance

Shock200g/1msIEC 60068-2-27


Free fall1mIEC 60068-2-32

Protection

IP68

Surge

300V

Static

IEC 61000-4-2 Level 3

Medium compatibility

All kinds of media compatible with stainless steel 304

 (Protective cap material: PC+ABS)
