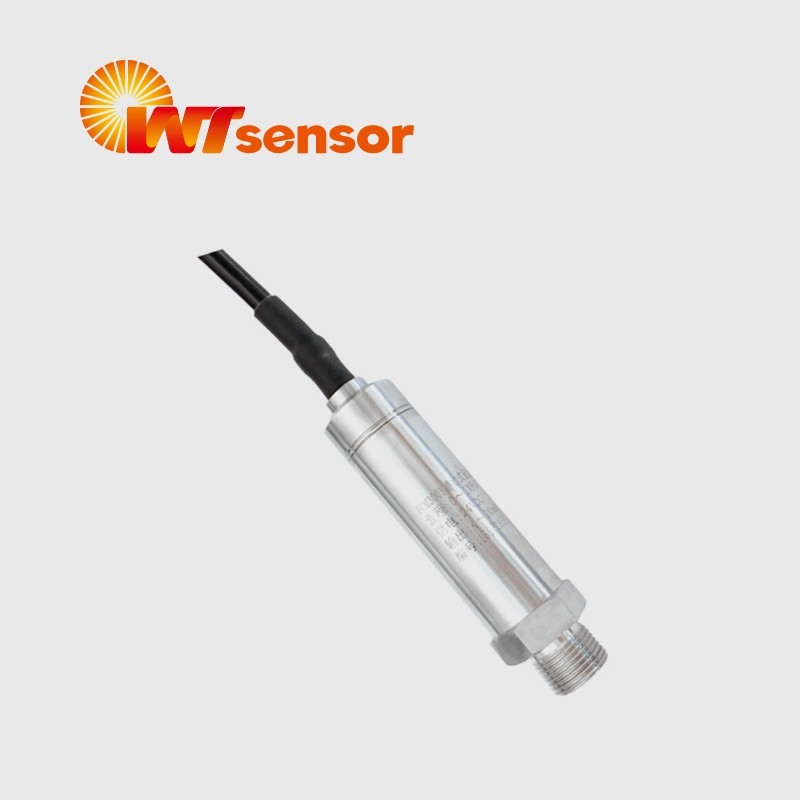

Industrial Pressure&Level Transmitter PCM300Y

Features

 316L stainless steel isolation diaphragm structure

 High precision, all stainless steel structure

 Micro amplifier, voltage and current signal output

 Diversified forms and structures, easy to install and use

Wide range, can measure absolute pressure, gauge pressure and sealed gauge pressure

Vibration and shock resistance

The PCM300Y submersible pressure transmitter uses a diffused silicon pressure sensor as the sensitive element, and the built-in processing circuit converts the sensor's millivolt signal into a standard voltage and current signal output, which can be directly connected to the computer, control instrument, display instrument, etc. It uses the high-stability and high-reliability piezoresistive pressure sensor as well as high-performance dedicated circuit of transmitter. The overall performance is stable and reliable, and can carry out the long-distance signal transmission.





Product Parameters


Performance parameters

Pressure range

10kPa20kPa100MPa

Pressure reference

Gauge pressureAbsolute pressure, Sealed gauge pressure

Output

4 to 20mA (1836V)

420mA with display(1236V)

Operating temp.

-20-85

Media temp.

-20-85

Storage temp.

-40-125

Zero temp.drift

±1.5%FS(@-20℃~85℃)

Sensitivity temp. drift

±1.5%FS(@-20℃~85℃)

Overload Pressure

150%FS

Vibration resistance

20g205000Hz)

Shock resistance

100g11ms

Accuracy (linearity, repeatability and hysteresis)

0.5%F.S.

Insulation

200MΩ/250VDC

Response time

1msup to 90%FS

Long-term Stability

±0.2%FS/year

Protection

IP68

Housing material

Stainless steel  (SS316 for sensor inside)

Media compatible

Various media compatible with 316L stainless steel


Electrical connection and wiring mode





Connector code

J12088 Housing

J1X2088 with display

J3:Cable

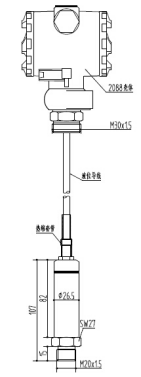

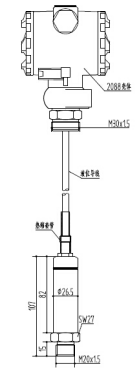

Dimension

 In mm





Wring mode

(Current output






 Current Outputimage.png

Red wirePower supply+

Green wireCurrent output


Pressure range selection

Pressure range code

Pressure reference

Pressure Range

Over pressure

Burst pressure

Notes

10kG

G

0~10kPa

150FS

600FS


20kG

G

0~20kPa

150FS

600FS


35kG

G

0~35kPa

150FS

600FS


70kG

G

0~70kPa

150FS

600FS


100kG

G

0~100kPa

150FS

500FS


160kG

G

0~160kPa

150FS

500FS


250kG

G

0~250kPa

150FS

500FS


400kG

G

0~400kPa

150FS

500FS


600kG

G

0~600kPa

150FS

500FS


1MG

G

0~1MPa

150FS

500FS


35kA

A

0~35kPa

150FS

500FS


100kA

A

0~100kPa

150FS

500FS


160kA

A

0~160kPa

150FS

500FS


250kA

A

0~250kPa

150FS

500FS


400kA

A

0~400kPa

150FS

500FS


600kA

A

0~600kPa

150FS

500FS


1.6MS

S

0~1.6MPa

150FS

500FS


2.5MS

S

0~2.5MPa

150FS

500FS


6MS

S

0~6MPa

150FS

400FS


10MS

S

0~10MPa

150FS

400FS


16MS

S

0~16MPa

150FS

400FS


25MS

S

0~25MPa

150FS

400FS


40MS

S

0~40MPa

150FS

150FS


60MS

S

0~60MPa

150FS

150FS


100MS

S

0~100MPa

150FS

150FS


NoteG Gauge pressure A  Absolute pressureS Sealed gauge pressure
