Understanding High-Precision Pressure Sensors: Principles, Applications, and Key Considerations

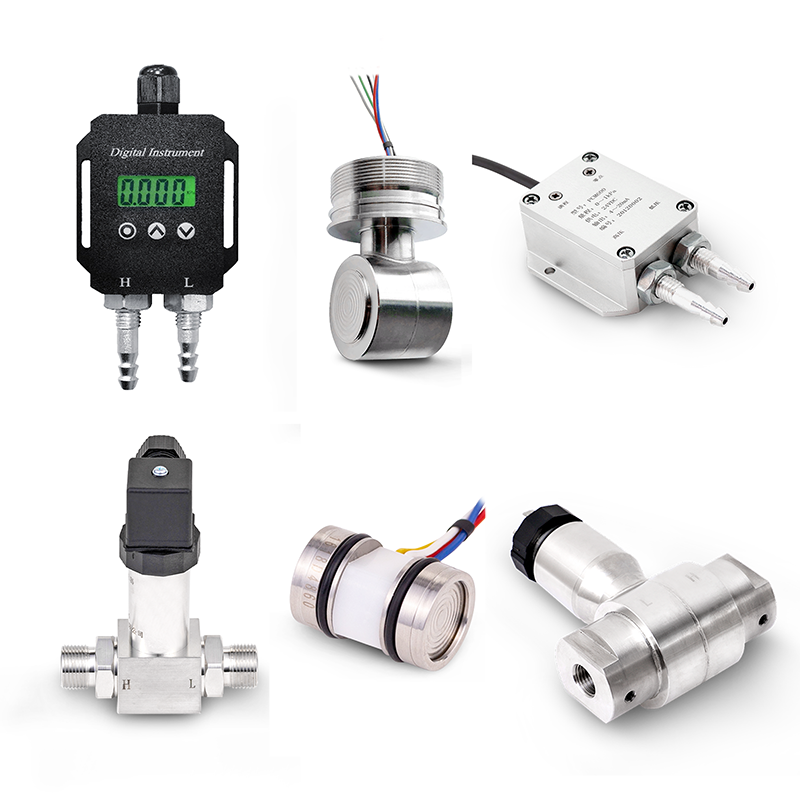

1. Introduction to High-Precision Pressure Sensors

High-precision pressure sensors are a specialized class of sensors that play a crucial role in various industrial applications, medical devices, aerospace technology, and more. Unlike general-purpose pressure sensors, high-precision sensors offer exceptional accuracy, sensitivity, and stability, making them suitable for demanding environments that require minute and reliable measurements.

These sensors convert changes in pressure (whether from gas or liquid) into an electrical signal. This signal can then be analyzed to determine the exact pressure exerted on the sensor. The technology that underpins these sensors relies on different physical principles such as the piezoresistive effect, capacitive effect, and piezoelectric effect.

2. Working Principle of High-Precision Pressure Sensors

The core functionality of high-precision pressure sensors stems from how they detect pressure variations and convert them into measurable electrical signals. There are three main principles that high-precision pressure sensors typically use:

• Piezoresistive Effect: This principle relies on the change in resistance of a material (usually semiconductor material like silicon) when it is subjected to pressure. The deformation of the sensor diaphragm under pressure causes a change in the resistance, which can be measured and translated into a pressure value.

• Piezoelectric Effect: Here, certain materials generate an electrical charge when subjected to mechanical stress. A pressure sensor using this effect will create a charge that is directly proportional to the pressure applied to the sensor.

• Capacitive Effect: In capacitive pressure sensors, the diaphragm moves in response to pressure, altering the distance between two capacitor plates. This results in a change in capacitance, which can be detected and converted into a pressure reading.

Each principle has its advantages and disadvantages. Piezoresistive sensors are known for their high accuracy and wide range, while capacitive sensors offer rapid response times. Piezoelectric sensors are typically used in dynamic pressure measurements, where the pressure is constantly fluctuating.

3. Sensitivity and Performance Characteristics

Sensitivity is one of the key attributes that differentiate high-precision pressure sensors from their average counterparts. It refers to the ability of a sensor to detect small changes in pressure and convert these into a noticeable electrical signal. A high-sensitivity sensor is crucial in environments where minute variations in pressure can significantly affect processes or equipment performance.

For example, in medical applications such as blood pressure monitoring, a slight change in pressure can be the difference between an accurate diagnosis and a misdiagnosis. In industrial automation, even a small fluctuation in fluid pressure can lead to inefficiencies or safety hazards. Therefore, high-precision sensors are designed to have extremely low noise levels, high sensitivity, and high stability.

However, sensitivity is not without trade-offs. Sensors with higher sensitivity tend to have higher costs, and there is an increased risk of noise interference. Moreover, temperature and environmental factors can sometimes affect the sensor’s output, necessitating careful consideration of the sensor’s operating environment during selection.

4. Choosing the Right High-Precision Pressure Sensor

Selecting the appropriate high-precision pressure sensor for a given application involves considering several key factors:

• Measurement Medium: The type of medium being measured (gas, liquid, or steam) influences the sensor choice. For example, capacitive sensors are more effective in low-pressure applications with gases, while piezoresistive sensors are better for liquids due to their accuracy and versatility.

• Pressure and Temperature Range: It is essential to ensure that the sensor is capable of handling the pressure range and temperature fluctuations that are expected in the application.

• Accuracy Requirements: Depending on the sensitivity and precision needed, the sensor’s tolerance to error must be evaluated. In fields such as aerospace, where precise altitude measurements are vital, even a slight inaccuracy can be catastrophic.

• Environmental Conditions: The sensor’s material, size, and overall design need to be compatible with the working environment. For example, harsh environments (like those with corrosive materials or extreme temperatures) may require sensors that are coated with protective materials to prevent degradation.

• Long-term Stability: Over time, a high-precision sensor must maintain its performance. Long-term stability includes considerations such as zero drift (where the sensor’s baseline pressure reading shifts over time) and its susceptibility to environmental factors.

5. Applications of High-Precision Pressure Sensors

High-precision pressure sensors are used in a wide range of industries due to their ability to provide accurate, reliable, and real-time pressure readings. Below are some key applications:

Aerospace and Aviation

In aerospace, the pressure sensors are critical for applications such as altitude measurement, cabin pressure monitoring, and engine pressure sensing. These sensors help ensure flight safety by providing accurate readings that are essential for the operation of flight systems. For example, piezoresistive sensors are often used in altimeters and barometers due to their wide pressure measurement range and high accuracy.

Industrial Automation and Process Control

In industrial settings, high-precision pressure sensors are used for fluid control, system monitoring, and quality control in manufacturing processes. They are integral to the operation of hydraulic and pneumatic systems, where maintaining the correct pressure ensures the smooth running of machines and minimizes the risk of system failure. Capacitive sensors, in particular, are well-suited to applications requiring quick responses to pressure changes.

Medical Equipment

In medical devices, pressure sensors are indispensable for monitoring vital signs like blood pressure, respiratory pressure, and intracranial pressure. High-precision sensors ensure that medical professionals can detect even subtle changes in a patient's condition. Sensors in ventilators and infusion pumps are also crucial to controlling the pressure of gases or fluids delivered to patients.

Automotive and Transportation

Pressure sensors are widely used in the automotive industry for tire pressure monitoring, fuel system pressure monitoring, and engine control systems. They play a key role in enhancing safety and improving fuel efficiency by providing precise pressure readings in various parts of the vehicle.

Food and Beverage Industry

In the food and beverage industry, pressure sensors are used for controlling the pressure during food processing and packaging. This is particularly important in maintaining product quality and consistency. For example, in carbonated beverage production, precise pressure control is crucial to achieving the desired carbonation levels.

Smart Homes and Consumer Electronics

Pressure sensors are increasingly being used in smart homes and consumer electronics to monitor various factors like water pressure, air pressure, or even touch-sensitive surfaces. These sensors help automate systems for enhanced convenience and energy efficiency.

6. Challenges and Considerations

One of the major challenges in the use of high-precision pressure sensors is maintaining long-term stability and ensuring minimal drift over time. In many applications, particularly in industrial and aerospace environments, sensors need to maintain their accuracy for years without significant recalibration. The phenomenon of zero drift—where the baseline reading of the sensor shifts over time—can significantly compromise the reliability of pressure readings.

To address these concerns, manufacturers often incorporate advanced self-diagnosis features, temperature compensation, and calibration mechanisms to ensure that the sensors provide consistent, reliable performance throughout their lifespan.

7. Conclusion

High-precision pressure sensors are indispensable tools across various industries. They provide accurate and reliable measurements, enabling enhanced control, safety, and efficiency in critical applications. Whether used in aerospace, medical, industrial, or consumer products, the role of these sensors in advancing technology cannot be overstated.

The future of high-precision pressure sensors is promising, driven by advances in materials, sensor technologies, and the growing demand for smarter, more reliable sensors in a variety of fields.
