Exploring the Types of Pressure Sensors: From MEMS to Resonance Sensors

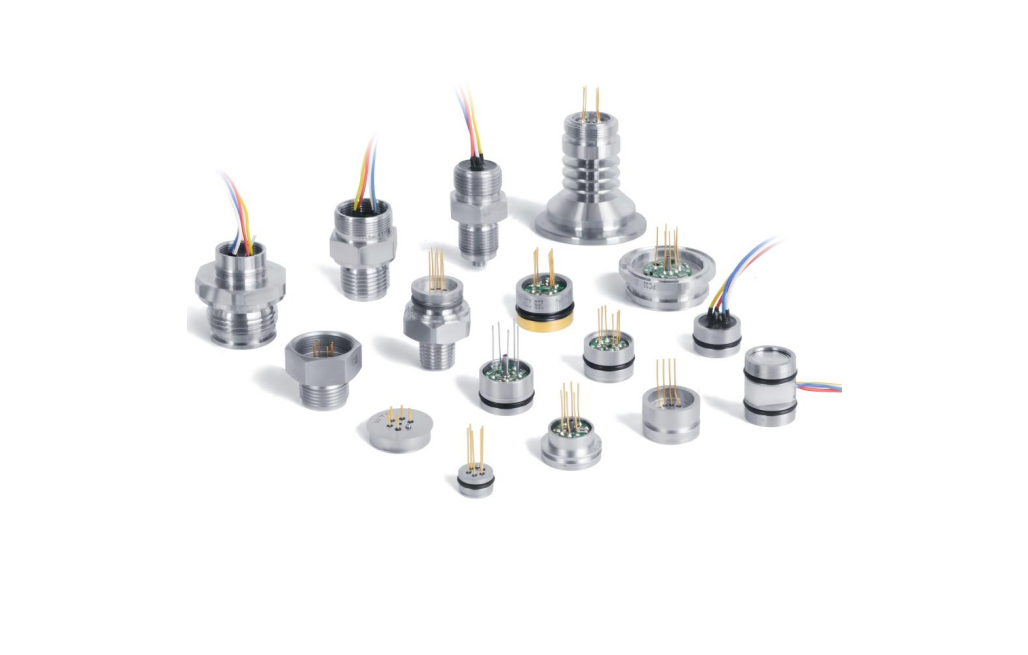

Pressure sensors are essential components in various industries, including automotive, aerospace, medical, and consumer electronics. They detect pressure changes and convert them into electrical signals for monitoring and control purposes. Based on their fabrication processes and operating principles, pressure sensors can be categorized into several types: MEMS pressure sensors, ceramic pressure sensors, sputtered thin-film pressure sensors, microfusion pressure sensors, traditional strain-gauge pressure sensors, sapphire pressure sensors, piezoelectric pressure sensors, fiber optic pressure sensors, and resonance pressure sensors.

MEMS Pressure Sensors

Microelectromechanical systems (MEMS) pressure sensors typically operate within a range of 1 kPa to 100 MPa. They are renowned for their miniaturization, mass production capabilities, and ease of integration, making them highly demanded across various applications. MEMS pressure sensors are primarily classified into piezoresistive and capacitive types. Piezoresistive sensors utilize the change in electrical resistance due to applied pressure, while capacitive sensors detect pressure-induced changes in capacitance. Advancements in semiconductor processing technology have enabled the development of miniature pressure sensors with overall sizes less than 2 mm × 2 mm, suitable for medical applications like implantable devices for intraocular pressure monitoring.

Ceramic Pressure Sensors

Ceramic pressure sensors are second only to MEMS sensors in terms of quantity. Their corrosion-resistant properties make them ideal for automotive electronics and industrial applications, such as engine systems, HVAC systems, and industrial refrigeration. The domestic demand for these sensors reaches tens of millions annually. Ceramic sensors often employ capacitive or piezoresistive principles, with ceramic materials providing robustness in harsh environments.

Sputtered Thin-Film Pressure Sensors

Sputtered thin-film pressure sensors are known for their adaptability to various environments, making them suitable for automotive and industrial electronics. These sensors utilize thin films deposited via sputtering techniques, enhancing sensitivity and stability. Recent advancements include the development of thin-film bulk acoustic resonators (FBARs), which operate at high frequencies and are used in applications requiring precise pressure measurements.

Microfusion Pressure Sensors

Microfusion pressure sensors combine microfabrication techniques with fusion bonding to create robust and miniaturized sensors. They are designed to withstand harsh environments and are commonly used in automotive and industrial applications. The fusion bonding process ensures strong adhesion between different materials, enhancing the sensor's durability and performance.

Traditional Strain-Gauge Pressure Sensors

Traditional strain-gauge pressure sensors are gradually being replaced by MEMS and sputtered thin-film technologies. However, due to their flexible application and variable shape characteristics, they remain in use in specific fields requiring customized solutions. These sensors operate based on the deformation of strain gauges under pressure, leading to a change in electrical resistance.

Sapphire Pressure Sensors

Sapphire pressure sensors exhibit high-temperature resistance and adaptability to harsh environments, making them suitable for defense, aerospace, and oil exploration. Sapphire's excellent mechanical and thermal properties ensure sensor reliability under extreme conditions. Research has demonstrated the embedding of micro thin-film strain sensors in sapphire, enhancing their performance in demanding applications.

Piezoelectric Pressure Sensors

Piezoelectric pressure sensors utilize materials that generate an electrical charge in response to applied mechanical stress. They are widely used in applications requiring dynamic pressure measurements, such as in aerospace and industrial machinery. Recent progress in piezoelectric thin films has led to the development of self-powered devices, expanding their applicability in various fields.

Fiber Optic Pressure Sensors

Fiber optic pressure sensors offer immunity to electromagnetic interference and are suitable for use in harsh environments. They operate based on changes in light transmission properties within optical fibers under pressure. MEMS-based fiber-optic Fabry–Perot (FP) pressure sensors have been developed for high-temperature applications, with some designs capable of operating up to 1200 °C.

Resonance Pressure Sensors

Resonance pressure sensors detect pressure changes by measuring shifts in the resonant frequency of a sensing element. They offer high accuracy and stability, making them suitable for applications requiring precise pressure measurements. Advances in high-performance MEMS pressure sensors have led to the development of resonant pressure sensors with improved sensitivity and miniaturization.

In summary, the diverse range of pressure sensor technologies caters to various application requirements, from miniaturized medical devices to robust sensors for harsh industrial environments. Ongoing research and development continue to enhance their performance, reliability, and integration capabilities.
