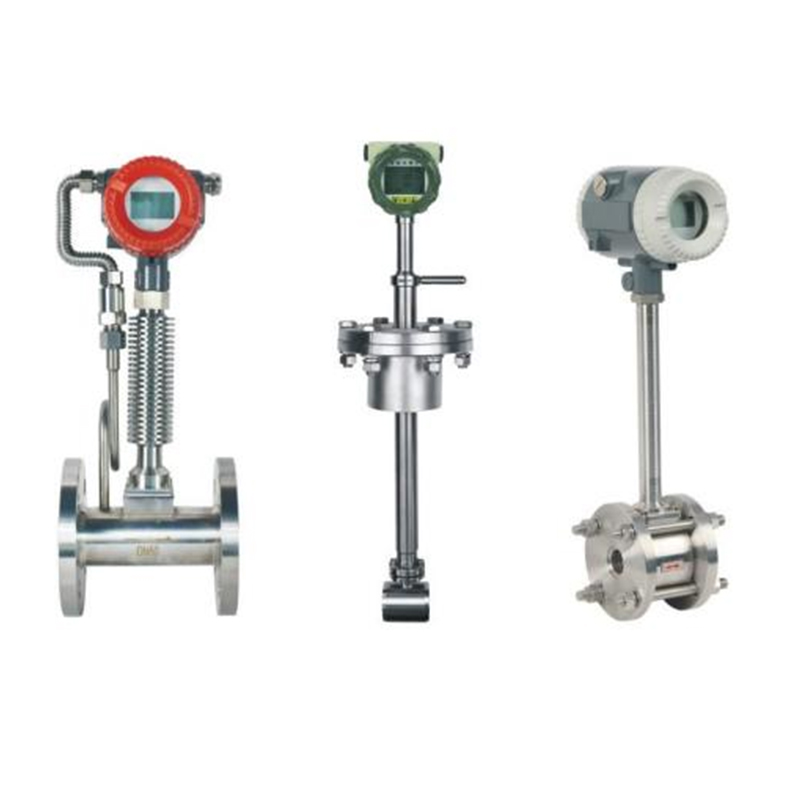

Vortex Flow Meter PCL-V11

Features

 Simple in structure, no motion worn parts

 High measurement accuracy, high reliability, field debugging is not required

 Can transmit traffic signal far away, and can network with computer to realize centralized management

 Magnifying plate adopts unique design, gas and liquid universal measurement



Applications

 widely used in petroleum, chemical, metallurgy, heat, textile, paper and other industries for steam, saturated steam, compressed air and general gas

       (oxygen, nitrogen hydrogen, natural gas, gas, etc.), water and liquid (such as: water, gasoline, alcohol, benzene, etc.) measurement and control


Product Parameters

Technical indicators

Nominal diameter (mm)

25, 40, 50, 65, 80, 100, 125, 150, 200, 250, 300300~1000 plug-in

Nominal pressure (MPa)

1.6(>1.6agreement supply

Medium temperature (℃)

-40~350 ℃

Body material

304SSother material agreement supply

Allow vibration acceleration

Piezoelectric: 0.2g capacitive: 1.0~2.0g

Accuracy

±1%r, ±1.5%r, ±1fs; plug-in type: ±2.5%r, ±2.5%fs

Extent

1:6~1:30

Supply voltage



Sensor: +12v dc, +24v dc; transmitter: +12v dc, +24v dc;

battery-powered type: 3.6v battery

Output signal



Square wave pulse (excluding battery-powered type): High level

≥5v, low level ≤1v; current: 4~20ma

Pressure loss coefficient

Comply with jb/t9249 standard cd≤2.4

Explosion-proof mark

Ex ia ⅡCT6 Ga

Protection class

IP65

Environmental conditions



Temperature -20℃~55℃, relative humidity 5%~90%,

atmospheric pressure 86~106kpa

Applicable medium

Gas, liquid, steam

Transmission distance



Three-wire pulse output type: ≤300m, two-wire standard current

output type (4~20ma): Load resistance ≤750ω
