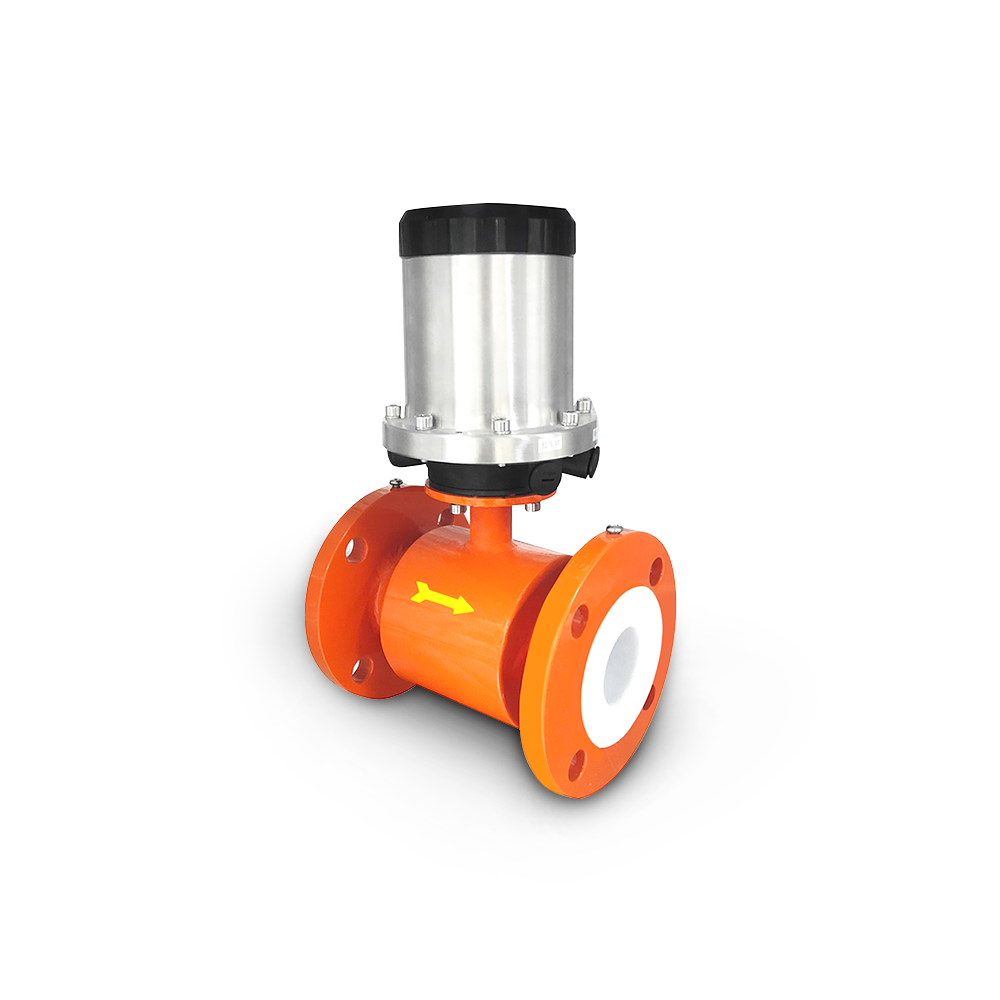

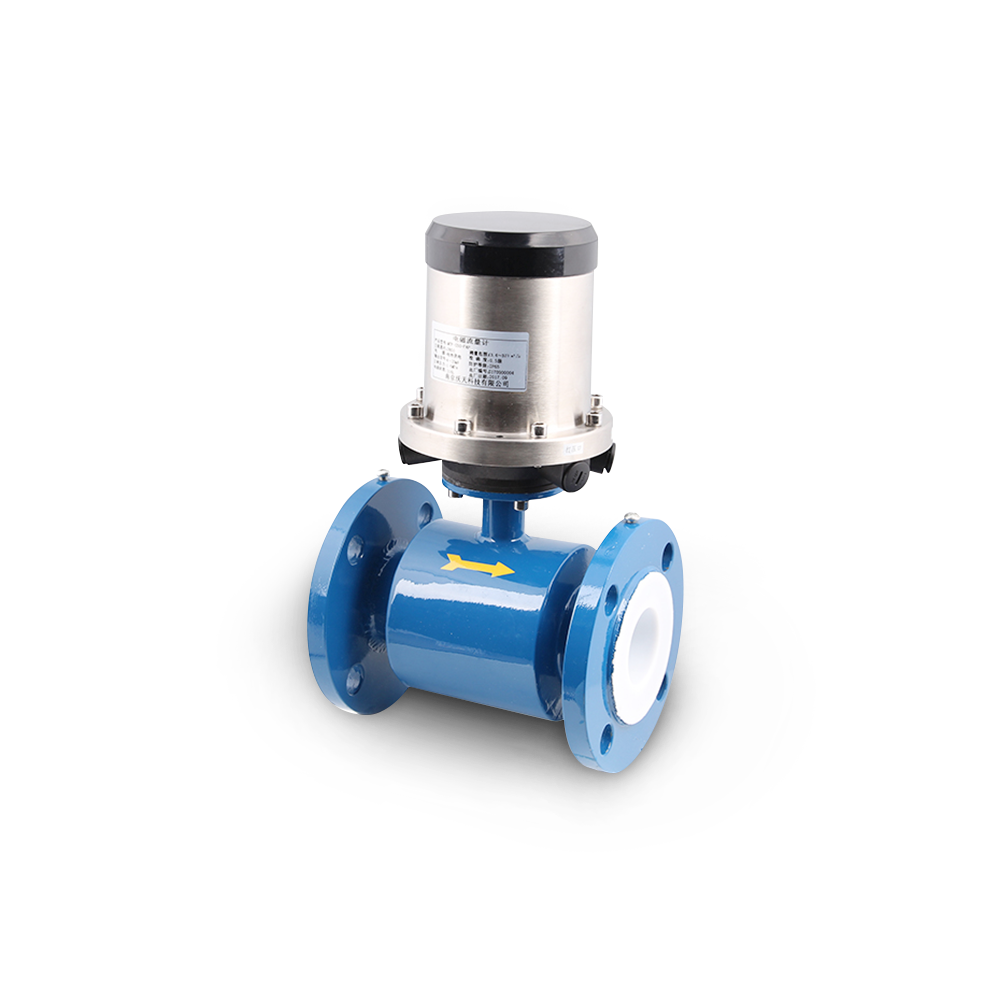

Battery Type Electromagnetic Flow Meter PCL

Introduction

PCL series electromagnetic flowmeters, composed of sensor and converter, work based on Faraday’s law of electromagnetic induction. It is used to measure electrical conductivity of liquid or solid. Generally, the electrical conductivity should be over 5uS/cm (electrical conductivity of tap water, raw water is about 100-500uS/cm. It can also be used to measure various mediums like acid, alkali, saline solution, paper pulp, ore pulp and so on, but these mediums cannot contain a lot of magnetic materials and bubbles.


IP68 4-20mA Pulse RS485 battery flange electromagnetic flow meter for acid alkali saline paper pulp ore pulp


PCL battery type flange electromagnetic flow meter measures DN15-DN600mm pipe with 4-20mA Pulse RS485 HART Profibus-PA output. It measures electrical conductivity of liquid or solid and acid, alkali, saline solution, paper pulp, ore pulp. It displays total flow and instantaneous flow in converter.

Product Parameters

Specifications

PCL Electro-

magnetic

Flowmeter

Divided   type

Integrated type   (IP67)

Integrated   type with explosion proof

Battery   type

Heat   (Energy) type

Basic error

±0.2% or ±0.5%   of indicated value

Diameter(mm)

DN15-DN2400

DN15-DN600

DN25-DN1400

Flange

Comply with   GB9119 standard, Carbon steel (Stainless steel optional)

Pressure level

DN15-DN600   1.0, 1.6, 2.5, 4.0MPa

DN700-DN2400   0.6, 1.0, 1.6MPa

DN15-DN600   1.0, 1.6, 2.5, 4.0Mpa

DN15-DN600 1.0, 1.6,   2.5, 4.0MPa

DN700-DN2400 0.6, 1.0,   1.6MPa


For special   pressure please consult with the manufacturer.

Lining   material

PTFE, PU,   CR, PFA, F46, IR

Conductivity

≥5uS/cm (For   <5uS/cm please consult with the manufacturer)

Electrode

316L,   Hastelloy, titanium, tantalum, platinum iridium alloy




Temperature sensor   type: PT1000

Protection

IP67 (IP68   optional for sensor)

IP65, IP67

IP65, IP67

IP68

IP67, IP68

Medium   temp.

-25-180

(Refer to the choice   of lining material.)

-25-80

(Refer to the choice   of lining material.)



-25-180

(Refer to the choice   of lining material.)

Ambient   temp. and the influence

-25-60   <±0.1%/10 or <±0.25%/10

Repetition

≤±0.1%/, ±0.25%

Analog   output error

≤±0.02mA

Measuring   range velocity

≤20m/s

Electrical   connection

M20×1.5   seal, G1/2, NPT1/2

Output

Standard   output (4-20mA), Pulse, RS485, HART, Profibus-PA
