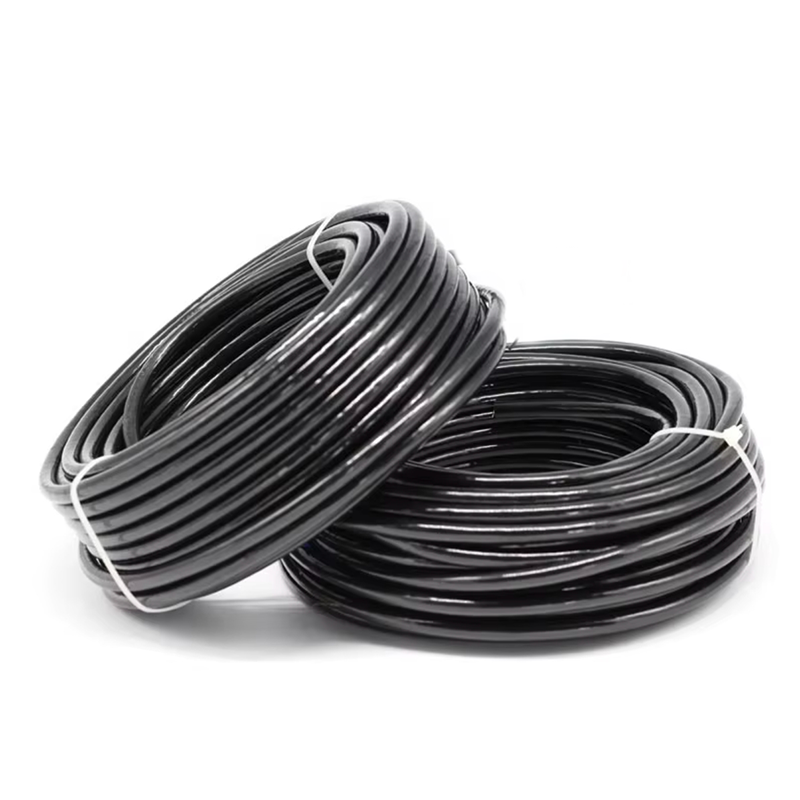

Ventilated cable for level transmitter

Characteristics

Features:

Outer jacket material: PVC, PE, F46 and PUR

Ventilated tube material: polypropylene

Application: special ventilated cable for submersible level transmitter

Cable color: Black


Product Parameters

Characteristics and application

Outer jacket material: PVC, PE, F46 and PUR

Ventilated tube material: polypropylene

Application: special ventilated cable for submersible level transmitter

Cable color: Black

Model

Name

Operational temperature

Weight/m

WTC02



Copper core PE insulated PE jacket cable

(resistant to water)

-20ºC~+70ºC

0.062kg

WTC03



Copper core PE insulated PE inner and F46 (FEP) outer jacket cable (resistant to acids and alkali)

-40ºC~+70ºC

0.077kg

WTC04



Copper core PE insulated PUR jacket cable (resistant to various oil)

-40ºC~+70ºC

0.069kg

 Specifications

NO. of cores × Standard cross section mm2

Structure of core (No. of threads/diameter)

Outer diameter/pore diameter of vented tube



Outer diameter

Conductor DC resistance at 20ºC

Ω/km

Insulation resistance

MΩ. Km

DC test Voltage (kV)

5×0. 2

7/0.2

2.2/1.0

7.2-7.4

≤90

500

1000

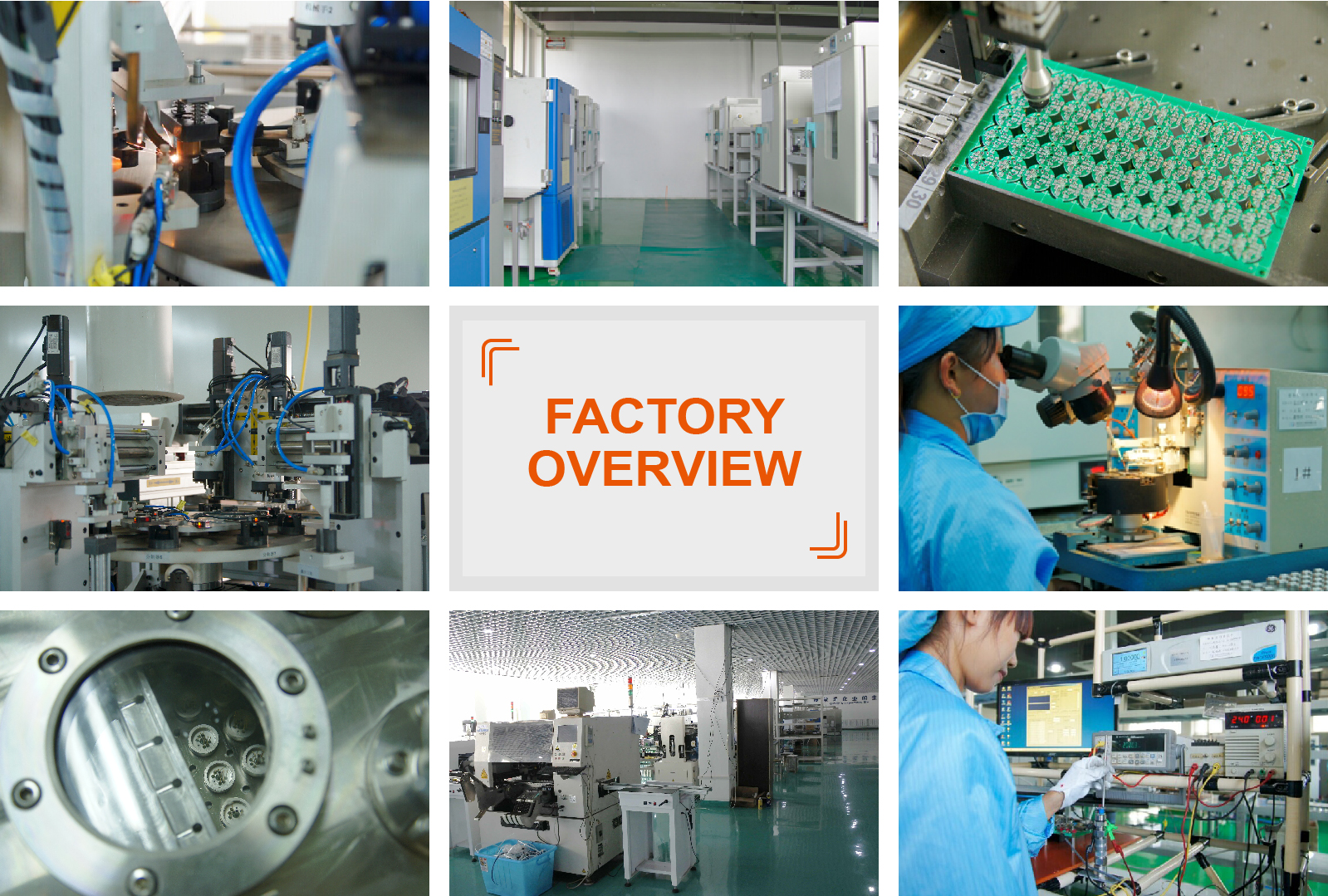

Production process

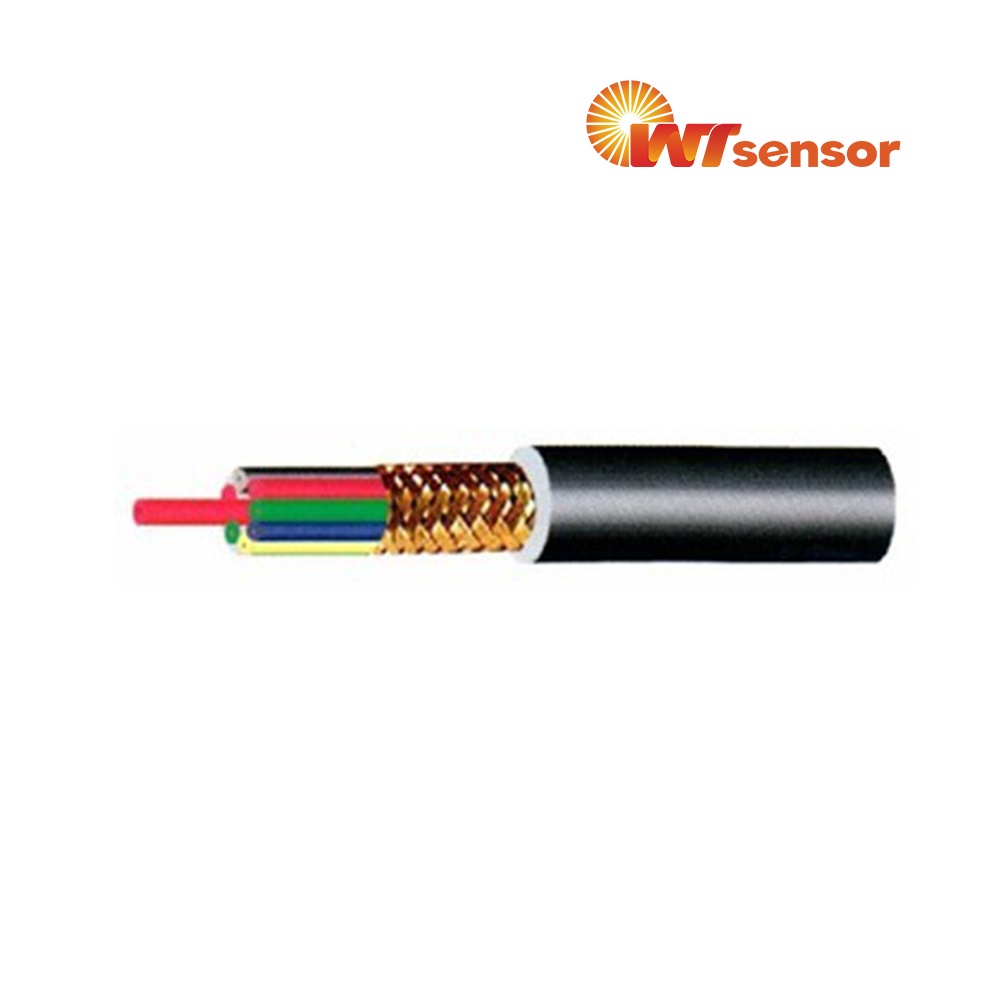

Ventilated cable for level transmitter
